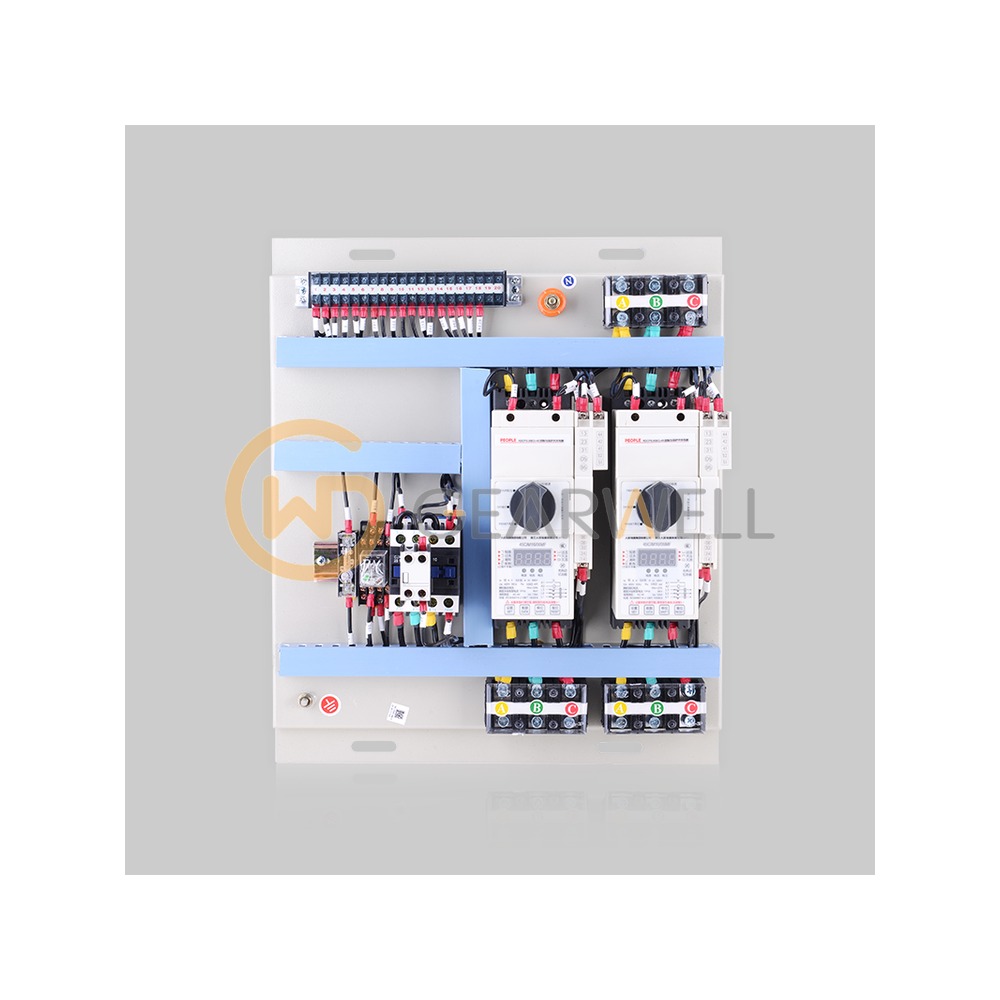

People Electric RDCPS(KBO)D-45C/M40/M32/06+06+09MF RDCPSD
- Brand
- People Electric
- Model
- RDCPS(KBO)D-45C/M40/M32/06+06+09MF
- GEARWELL SKU
- GWP-000013734
- Category
- Contactors & Starters
Key specifications
- Type name
- RDCPS(KBO) is the former type name of RDCPS (CQC report: type change RDCPS(KBO)-45 to RDCPS-45)
- Derived code
- F (fire-fighting: overload alarm only, no trip)
- Frame "45" (RDCPSD)
- as collected; RDCPSD catalogue tabulates 63 / 125 A frames, RDCPS series key lists 45 / 63 / 125
- Material number
- 101002012010332
- Frame (shell) current
- 45 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric RDCPS(KBO)D-45C/M40/M32/06+06+09MF RDCPSD |
|---|---|
| Brand | People Electric |
| Model | RDCPS(KBO)D-45C/M40/M32/06+06+09MF |
| Category | Contactors & Starters |
| Type name | RDCPS(KBO) is the former type name of RDCPS (CQC report: type change RDCPS(KBO)-45 to RDCPS-45) |
| Derived code | F (fire-fighting: overload alarm only, no trip) |
| Frame "45" (RDCPSD) | as collected; RDCPSD catalogue tabulates 63 / 125 A frames, RDCPS series key lists 45 / 63 / 125 |
| Material number | 101002012010332 |
| Frame (shell) current | 45 A |
| Code suffix "06+06+09" | as collected; not listed in the official model-number table (auxiliary contact codes 02 / 06 / 09) |
| Control supply voltage | AC 220 (code M) V |
| Low-speed rated current Ie | 32 A |
| High-speed rated current Ie | 40 A |
| Rated service short-circuit breaking capacity Ics (code C) | 12 kA |
