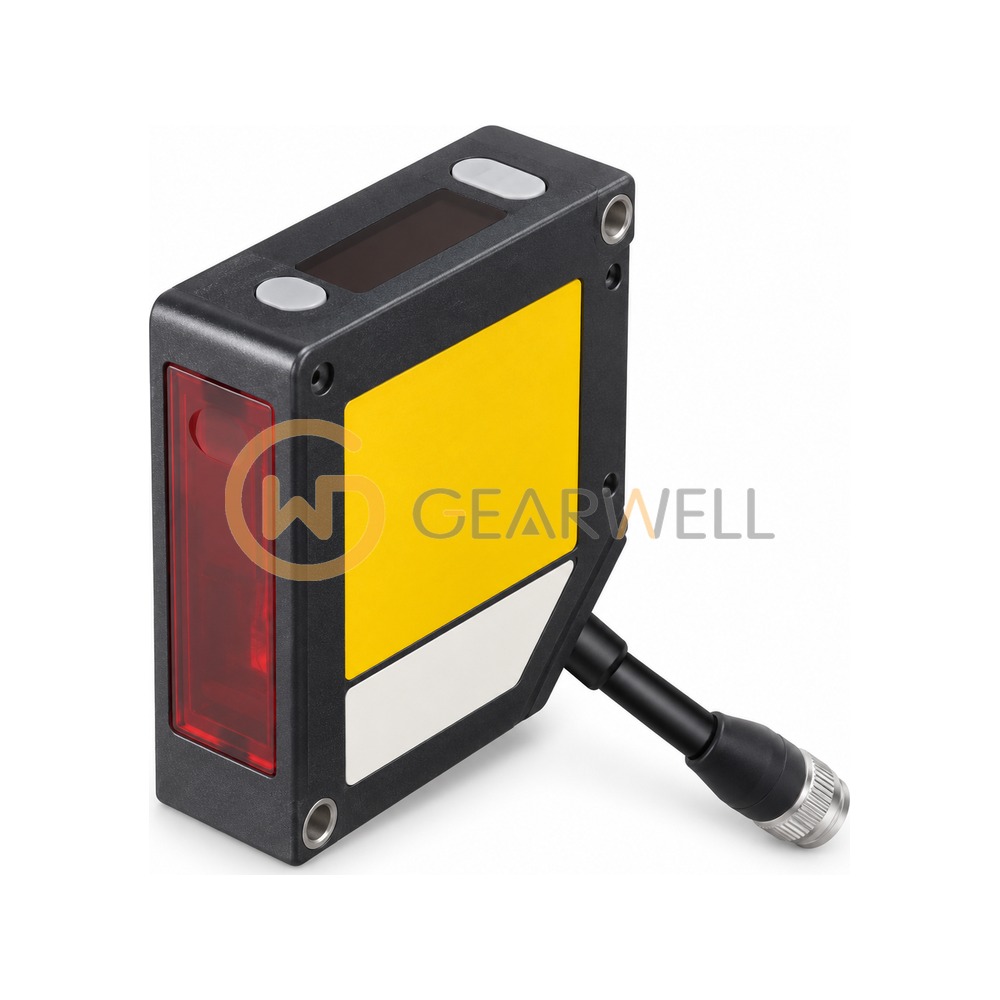

PANASONIC HL-G103-S-J HL-G1 Compact Laser Displacement Sensor
- Brand
- PANASONIC
- Model
- HL-G103-S-J
- GEARWELL SKU
- GWP-000015774
- Category
- Test & Measurement
Key specifications
- Type
- High functionality type
- Linearity
- ±0.1 % F.S.
- Protection
- IP67 (excluding connector)
- Resolution
- 0.5 µm
- Light source
- Red semiconductor laser, Class 2, 655 nm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | PANASONIC HL-G103-S-J HL-G1 Compact Laser Displacement Sensor |
|---|---|
| Brand | PANASONIC |
| Model | HL-G103-S-J |
| Category | Test & Measurement |
| Type | High functionality type |
| Linearity | ±0.1 % F.S. |
| Protection | IP67 (excluding connector) |
| Resolution | 0.5 µm |
| Light source | Red semiconductor laser, Class 2, 655 nm |
| Communication | RS-422 or RS-485 |
| Sampling rate | 200 µs / 500 µs / 1 ms / 2 ms |
| Supply voltage | 24 V DC ±10 % |
| Measurement range | ±4 mm |
| Measurement center distance | 30 mm |
