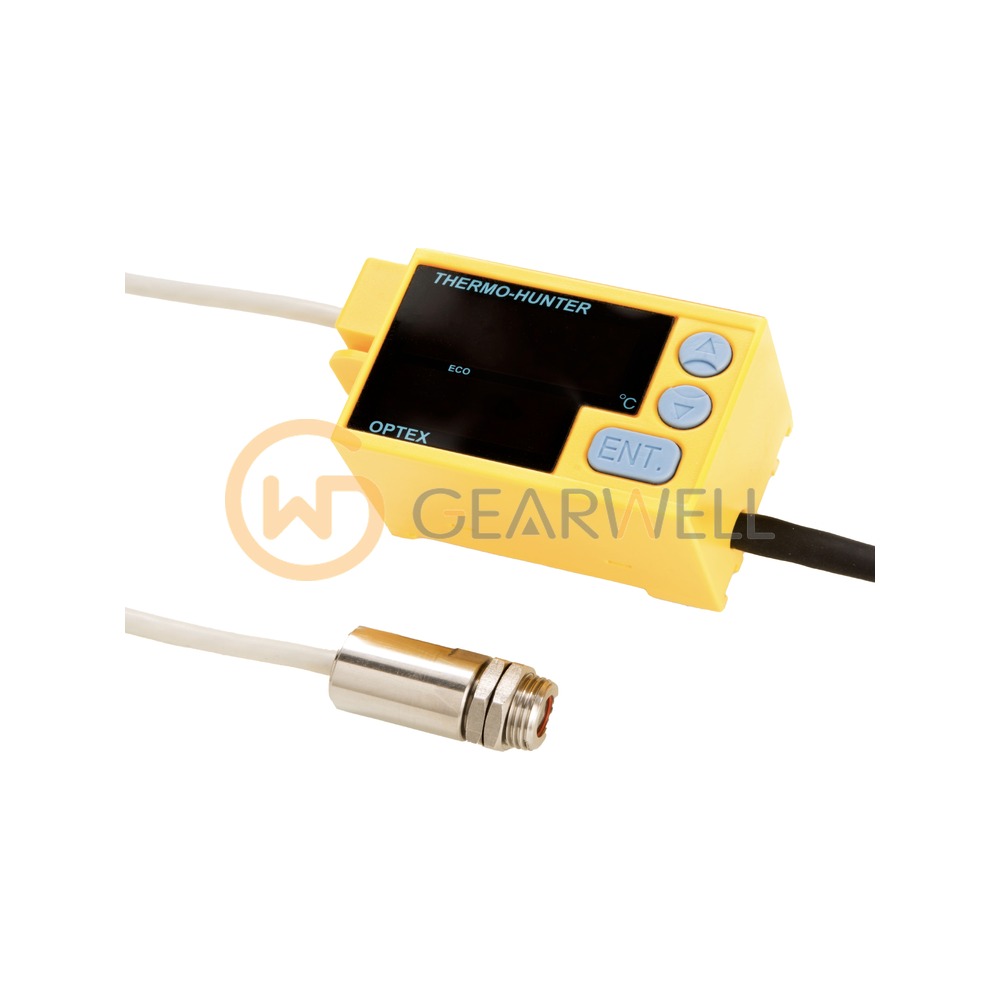

OPTEX CS-30TAC-HT CS Series High-Temperature Infrared Thermometer
- Brand
- OPTEX
- Model
- CS-30TAC-HT
- GEARWELL SKU
- GWP-000017027
- Category
- Pressure, Flow & Temperature
Key specifications
- Analog output
- 4 to 20 mA
- Field of view
- ø30/500 mm (22:1)
- Response time
- 150 ms (90% response)
- Control output
- Photo MOS FET × 2
- Supply voltage
- 12 to 24 VDC ±10%
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | OPTEX CS-30TAC-HT CS Series High-Temperature Infrared Thermometer |
|---|---|
| Brand | OPTEX |
| Model | CS-30TAC-HT |
| Category | Pressure, Flow & Temperature |
| Analog output | 4 to 20 mA |
| Field of view | ø30/500 mm (22:1) |
| Response time | 150 ms (90% response) |
| Control output | Photo MOS FET × 2 |
| Supply voltage | 12 to 24 VDC ±10% |
| Measurement range | 0 to 1000 °C |
| Degree of protection | Sensor head IP69K, amplifier IP40 |
| Sensor head dimensions | M12 (ø14) × 34 mm |
| Sensor head ambient temperature | 0 to 180 °C |
| Sensing element / spectral response | Thermopile / 8 to 14 μm |
