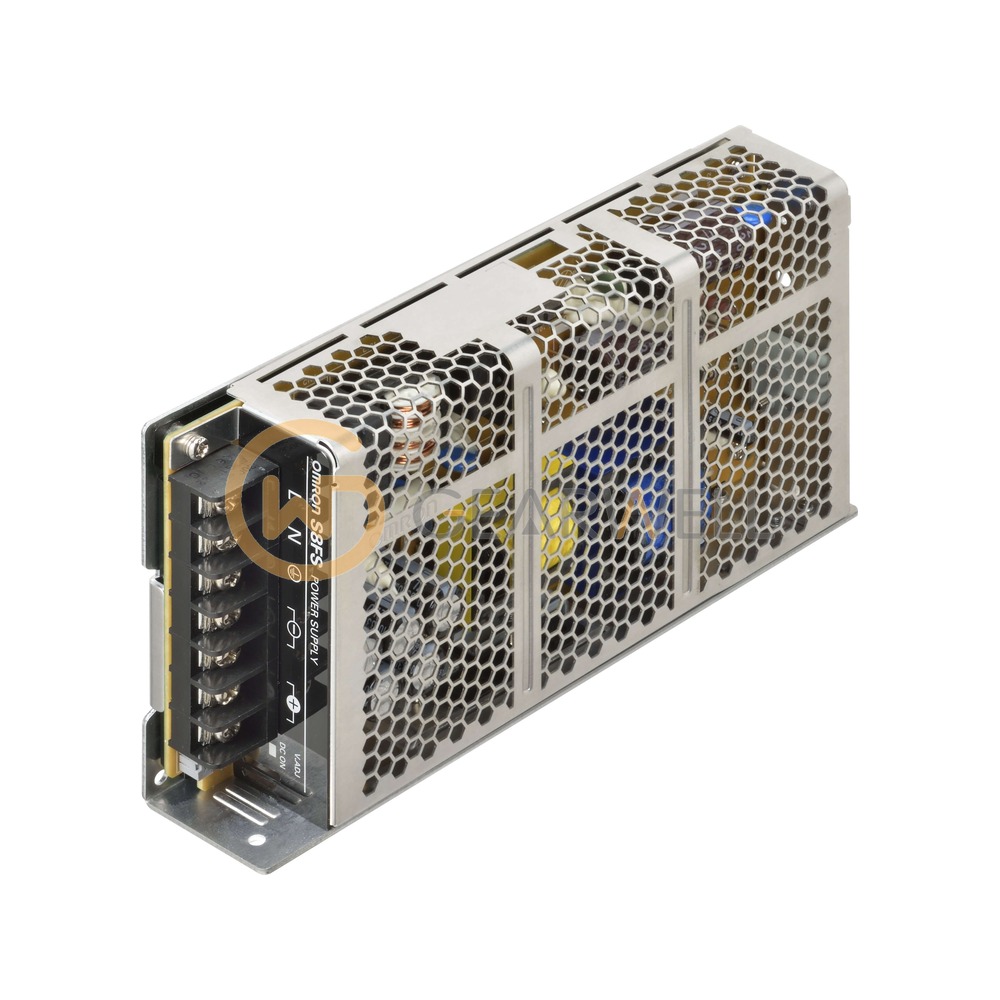

OMRON S8FS-C15024 S8FS-C Switch Mode Power Supply 24 V 150 W
- Brand
- OMRON
- Model
- S8FS-C15024
- GEARWELL SKU
- GWP-000010785
- Category
- Power Supplies
Key specifications
- Efficiency
- 87 %
- Power output
- 150 W
- Output voltage
- 24 V
- Mounting method
- Direct mounting
- Temperature range
- -20 to 60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON S8FS-C15024 is a 150 W S8FS-C switch mode power supply with a 24 V output at 6.5 A, in the model with terminal block facing upward; DIN rail mounting is possible with brackets sold separately. The input is 100 to 120 VAC or 200 to 240 VAC selected with a switch (allowable range 90 to 132 VAC, 180 to 264 VAC or 254 to 373 VDC). Efficiency is 86% typ. at 115 VAC and 87% typ. at 230 VAC, the output can be adjusted by −10% to 10%, and it has overload and overvoltage protection and no cooling fan. It works from −20 to 60°C with derating and weighs 500 g max.
Technical reference
| Product name | OMRON S8FS-C15024 S8FS-C Switch Mode Power Supply 24 V 150 W |
|---|---|
| Brand | OMRON |
| Model | S8FS-C15024 |
| Category | Power Supplies |
| Efficiency | 87 % |
| Power output | 150 W |
| Output voltage | 24 V |
| Mounting method | Direct mounting |
| Temperature range | -20 to 60 °C |
| Dimensions (W x H x D) | 97 x 38 x 199 mm |
| Rated output current | 6.5 A |
| Rated supply voltage | 100-240 V AC |
