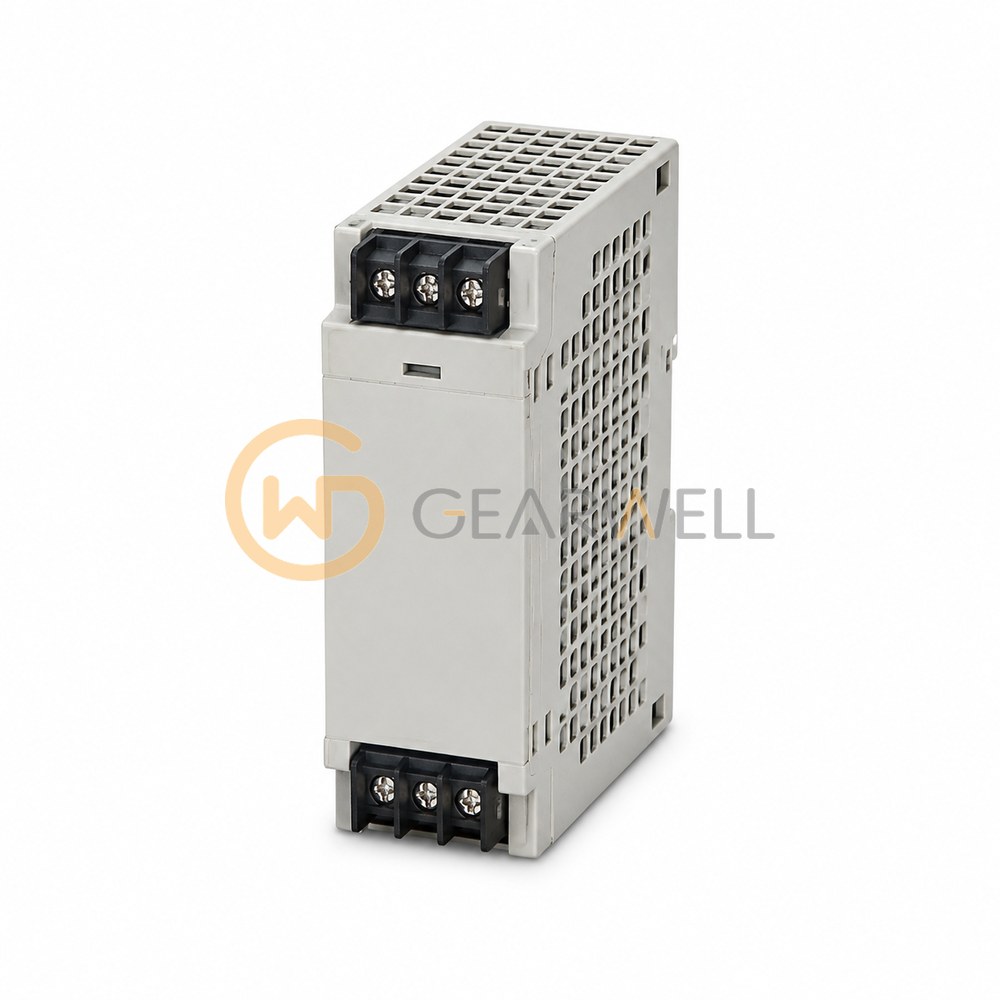

OMRON S82K-01505 Switching Power Supply
- Brand
- OMRON
- Model
- S82K-01505
- GEARWELL SKU
- GWP-000001218
- Category
- Industrial Automation Parts
Key specifications
- Rated power
- 15 W
- Product type
- DIN-rail switch mode power supply
- Input voltage
- 100 to 240 VAC (85 to 264 VAC)
- Output current
- 2.5 A
- Output voltage
- 5 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON S82K-01505 is a 15 W S82K switch mode power supply for DIN-rail mounting with a single 5 V output at 2.5 A and an undervoltage alarm indicator. It takes 100 to 240 VAC (85 to 264 VAC), 50/60 Hz, and the output voltage can be adjusted by ±10% with the V. ADJ. Ripple is 2% (p-p) max., the hold time is 20 ms min., and overload protection works at 105% to 160% of rated load current with automatic reset. It conforms to EN 61204-3 class B for EMI.
Technical reference
| Product name | OMRON S82K-01505 Switching Power Supply |
|---|---|
| Brand | OMRON |
| Model | S82K-01505 |
| Category | Industrial Automation Parts |
| Rated power | 15 W |
| Product type | DIN-rail switch mode power supply |
| Input voltage | 100 to 240 VAC (85 to 264 VAC) |
| Output current | 2.5 A |
| Output voltage | 5 VDC |
| Voltage adjustment | ±10% |
| Overload protection | 105% to 160% of rated load, automatic reset |
| Output configuration | Single output |
