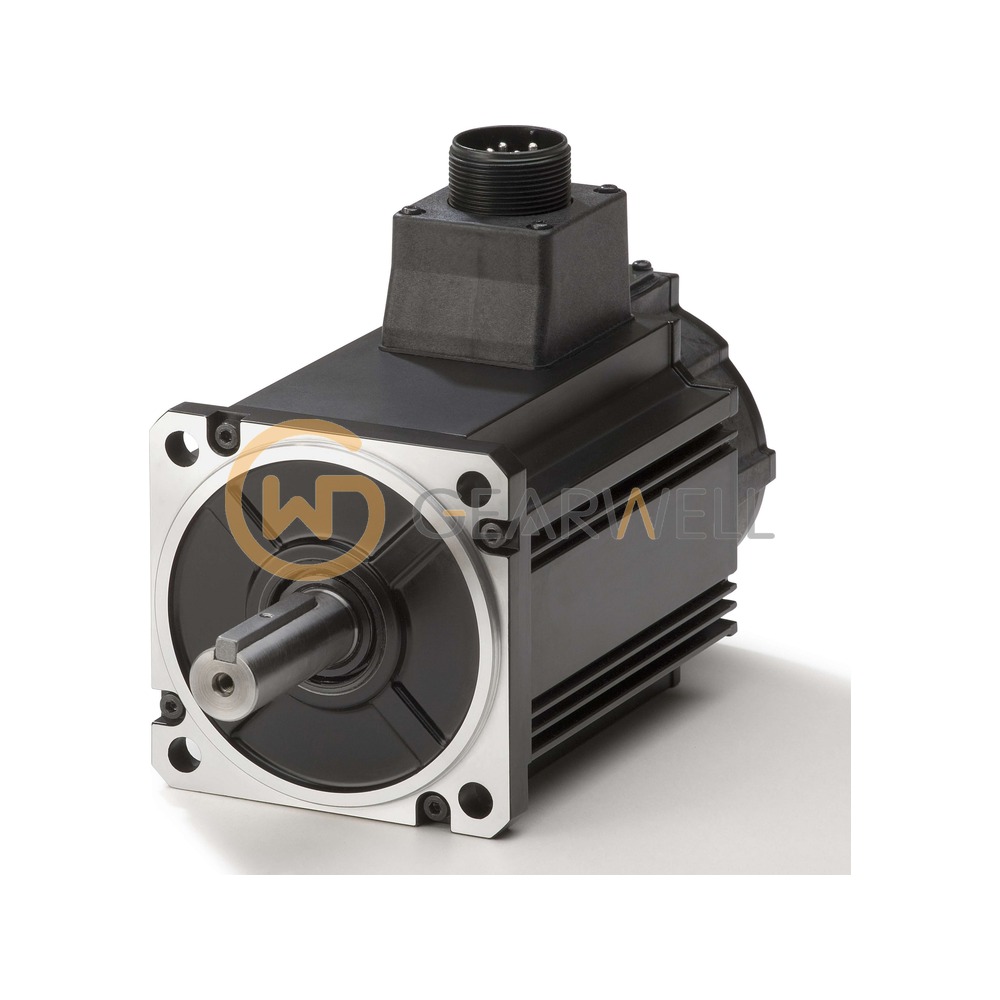

OMRON R88M-K1K520H-BS2 Accurax G5 AC Servo Motor
- Brand
- OMRON
- Model
- R88M-K1K520H-BS2
- GEARWELL SKU
- GWP-000007830
- Category
- Servo Systems
Key specifications
- Brake
- Yes
- Encoder
- Incremental, 20 bit
- Flange size
- 130 mm
- Peak torque
- 21.5 Nm
- Rated speed
- 2000 r/min
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON R88M-K1K520H-BS2 is an Accurax G5 rotary servo motor for 230 V, 1500 W, with a rated torque of 7.16 Nm at 2000 min-1. It has a 20 bit incremental encoder, a brake and a straight shaft with key and tap. It is driven by the R88D-KN15H (EtherCAT) or R88D-KT15H (analog/pulse) servo drive.
Technical reference
| Product name | OMRON R88M-K1K520H-BS2 Accurax G5 AC Servo Motor |
|---|---|
| Brand | OMRON |
| Model | R88M-K1K520H-BS2 |
| Category | Servo Systems |
| Brake | Yes |
| Encoder | Incremental, 20 bit |
| Flange size | 130 mm |
| Peak torque | 21.5 Nm |
| Rated speed | 2000 r/min |
| Rated output | 1.5 kW |
| Rated torque | 7.16 Nm |
| Shaft diameter | 22 mm |
