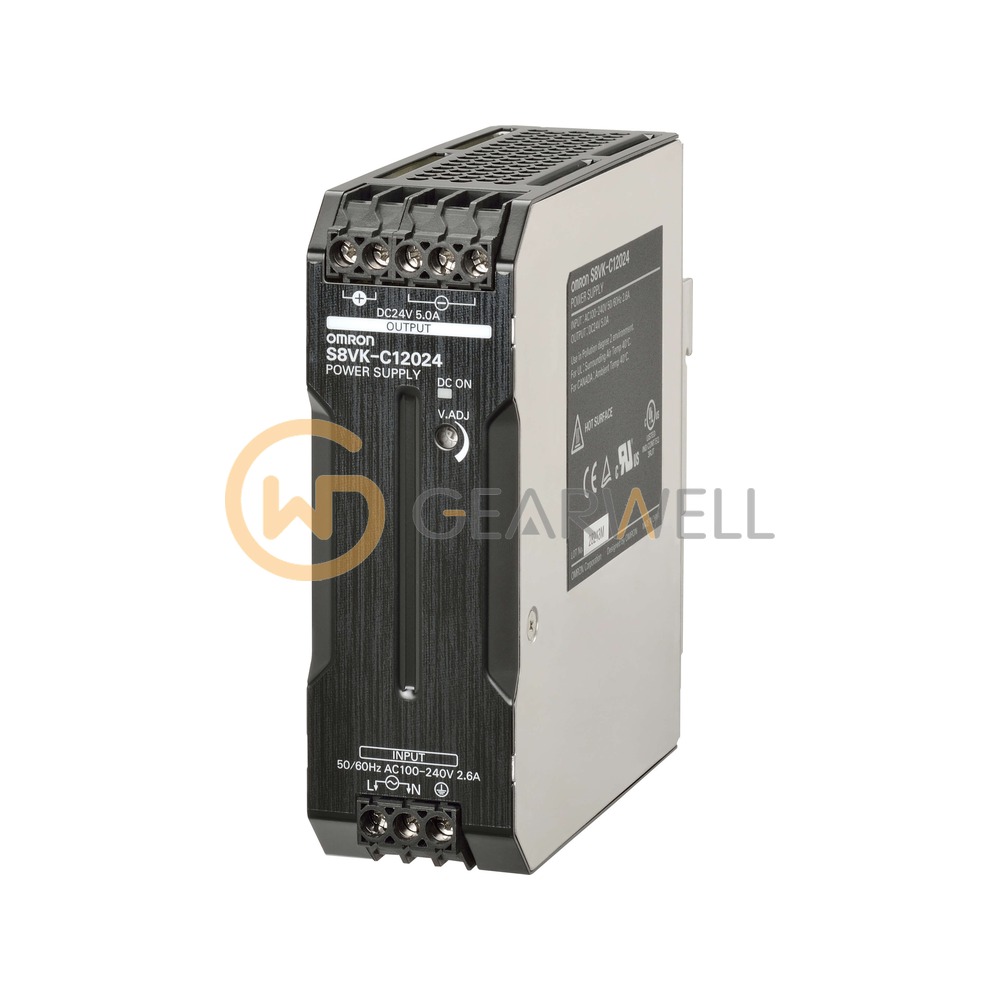

OMRON S8VK-C12024 S8VK-C DIN Rail Power Supply
- Brand
- OMRON
- Model
- S8VK-C12024
- GEARWELL SKU
- GWP-000007831
- Category
- Power Supplies
Key specifications
- Efficiency
- 89 %
- Power output
- 120 W
- Input voltage
- 100 to 240 V AC
- Output current
- 5 A
- Output voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON S8VK-C12024 is a 120 W S8VK-C single-phase switch mode power supply for DIN rail mounting with a 24 V output at 5A. It takes 100 to 240 VAC (85 to 264 VAC) or 90 to 350 VDC; for DC input an external fuse of 350 VDC min, 8A is required. Efficiency is 88% at 230 VAC, the output can be adjusted by –10% to 15%, and it works from –25 to 60°C. It is 40 mm wide, rated IP20 and weighs 580 g.
Technical reference
| Product name | OMRON S8VK-C12024 S8VK-C DIN Rail Power Supply |
|---|---|
| Brand | OMRON |
| Model | S8VK-C12024 |
| Category | Power Supplies |
| Efficiency | 89 % |
| Power output | 120 W |
| Input voltage | 100 to 240 V AC |
| Output current | 5 A |
| Output voltage | 24 V DC |
| Dimensions (W x H x D) | 40 x 125 x 113 mm |
| Operating temperature | -25 to 60 °C |
