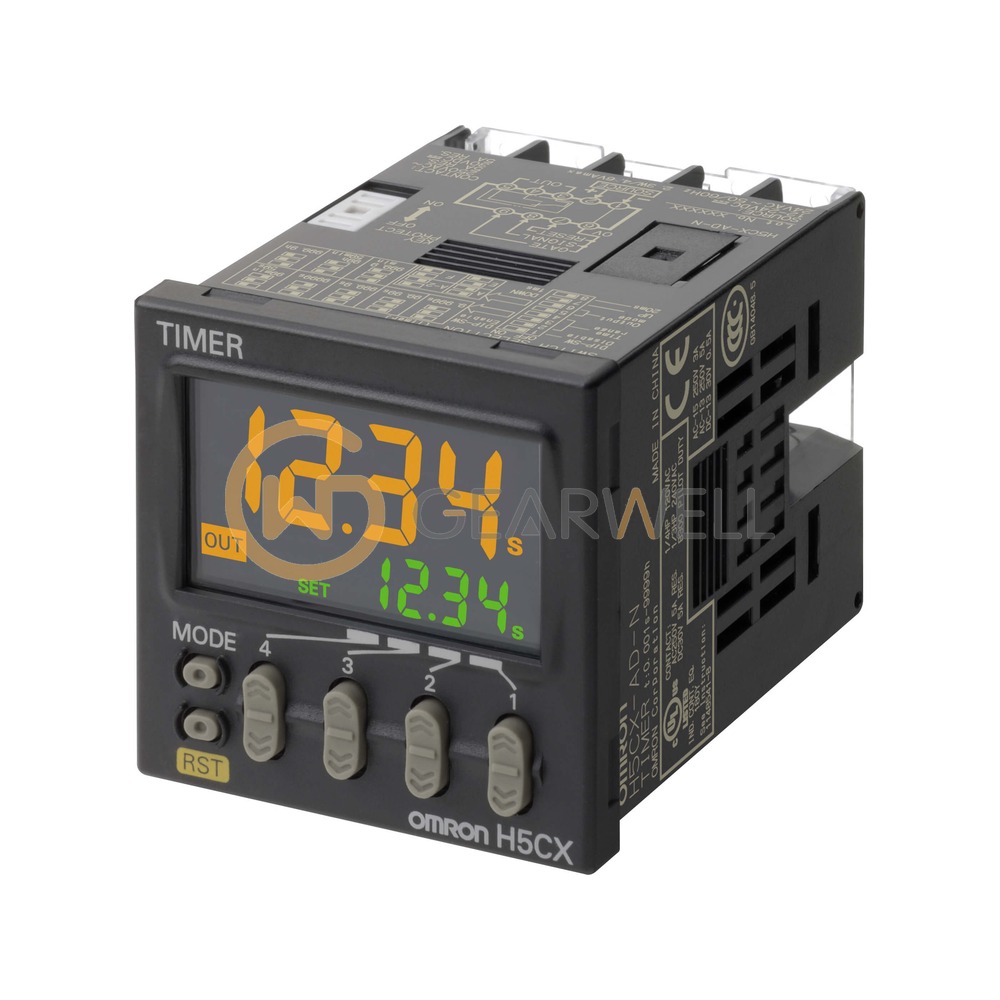

OMRON H5CX-AD-N H5CX-N Digital Timer

Product overview

The OMRON H5CX-AD-N is a standard-type H5CX digital timer for flush mounting, with screw terminals, a 4-digit display with 12-mm present value characters switchable between red, green and orange, and a body depth of only 59 mm. It has signal, reset and gate inputs (switchable NPN/PNP), timer and twin timer modes, and time ranges from 0.001 s to 9999 h. Its time-limit SPDT contact output is rated 5 A at 250 VAC/30 VDC (resistive load), and it runs on 12 to 24 VDC/24 VAC 50/60 Hz (approx. 5.1 VA/2.4 W); basic insulation between the power supply and input circuits is not provided on this D version. The front reaches IP66 with the Y92S-29 waterproof packing.
