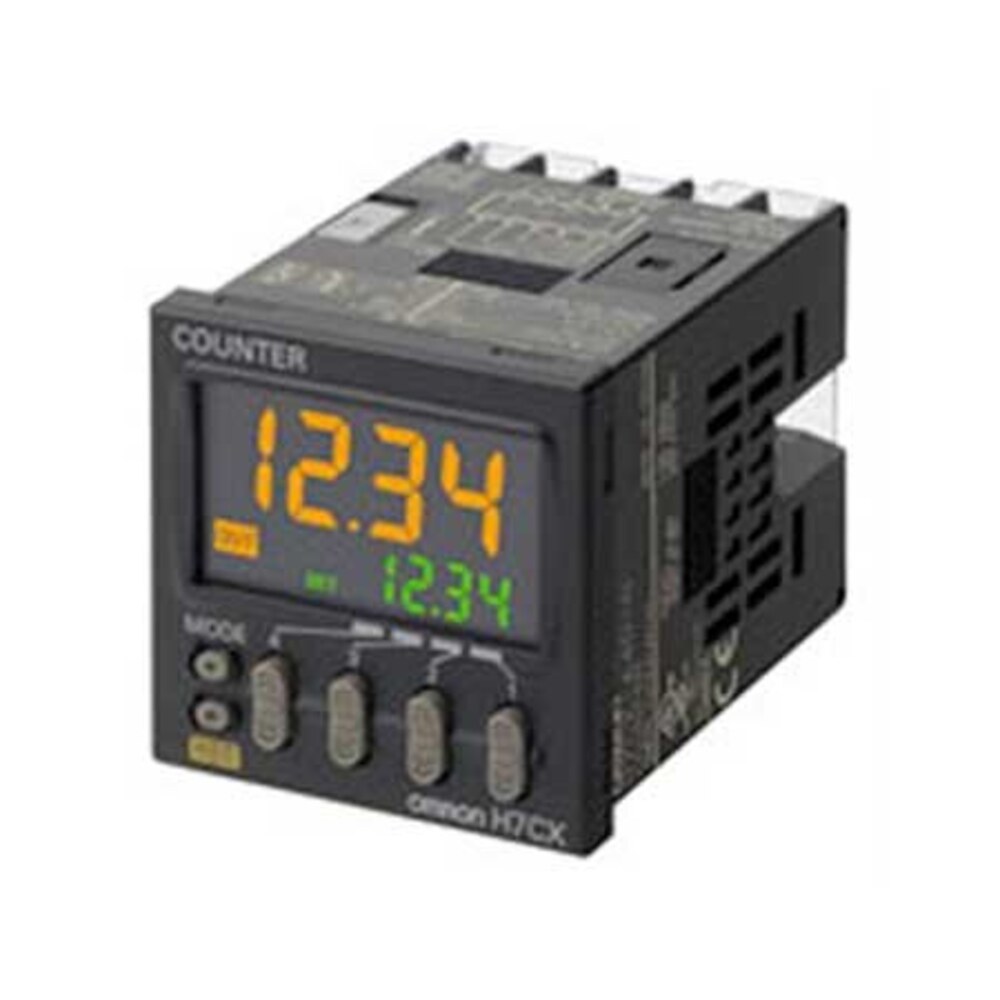

OMRON H7CX-AUD1-N Counter
- Brand
- OMRON
- Model
- H7CX-AUD1-N
- GEARWELL SKU
- GWP-000001676
- Category
- Industrial Automation Parts
Key specifications
- Outputs
- Contact output (SPDT) plus transistor output (SPST)
- Mounting
- Flush mounting
- Functions
- Preset, total, batch, dual and twin counter; tachometer
- Power supply
- 12 to 24 VDC or 24 VAC
- Product type
- Preset counter and tachometer
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON H7CX-AUD1-N is a 6-digit H7CX multifunction preset counter and tachometer with screw terminals for flush mounting, factory-set to 1-stage setting. It can work as a preset counter, total and preset counter, batch counter, dual counter, twin counter or tachometer, counts at 30 Hz or 10 kHz (selectable) and displays −99999 to 999999. It has a contact output (SPDT) rated 3 A at 250 VAC/30 VDC (resistive load) and an NPN open collector transistor output (SPST) for 100 mA at 30 VDC, and runs on 12 to 24 VDC/24 VAC. The front reaches IP66 with the Y92S-29 waterproof packing.
Technical reference
| Product name | OMRON H7CX-AUD1-N Counter |
|---|---|
| Brand | OMRON |
| Model | H7CX-AUD1-N |
| Category | Industrial Automation Parts |
| Outputs | Contact output (SPDT) plus transistor output (SPST) |
| Mounting | Flush mounting |
| Functions | Preset, total, batch, dual and twin counter; tachometer |
| Power supply | 12 to 24 VDC or 24 VAC |
| Product type | Preset counter and tachometer |
| Display digits | 6 |
| Factory setting | 1-stage |
| External connection | Screw terminals |
