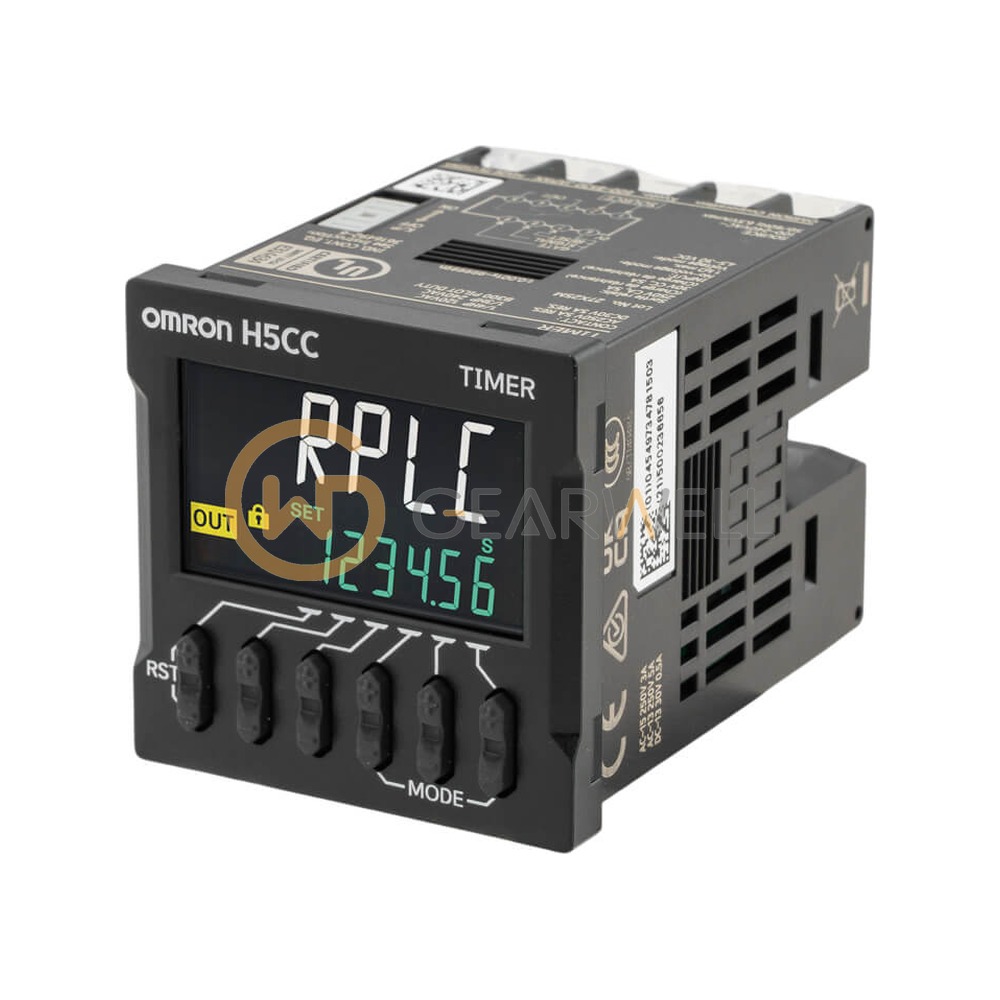

OMRON H5CC-A H5CC Digital Timer
- Brand
- OMRON
- Model
- H5CC-A
- GEARWELL SKU
- GWP-000011579
- Category
- PLCs & I/O
Key specifications
- Size
- 1/16 DIN (48 x 48 mm)
- Inputs
- Signal, reset, gate (NPN/PNP)
- Output
- Relay, SPDT
- Mounting
- DIN rail, panel, socket
- Functions
- Multi-functional
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON H5CC-A is a standard-type H5CC digital timer for flush mounting, with screw terminals and a 6-digit white display. It has signal, reset and gate inputs (switchable NPN/PNP), offers timer modes and twin timer modes, and covers time ranges from 0.001 s to 999999 h. Its time-limit SPDT contact output is rated 5 A at 250 VAC/30 VDC (resistive load), it runs on 100 to 240 VAC 50/60 Hz (approx. 6.5 VA), and the front reaches IP66 with the Y92S-P6 waterproof packing; the body depth of the screw-terminal models is 59 mm.
Technical reference
| Product name | OMRON H5CC-A H5CC Digital Timer |
|---|---|
| Brand | OMRON |
| Model | H5CC-A |
| Category | PLCs & I/O |
| Size | 1/16 DIN (48 x 48 mm) |
| Inputs | Signal, reset, gate (NPN/PNP) |
| Output | Relay, SPDT |
| Mounting | DIN rail, panel, socket |
| Functions | Multi-functional |
| Terminal type | Screw |
| Supply voltage | 100 to 240 VAC |
