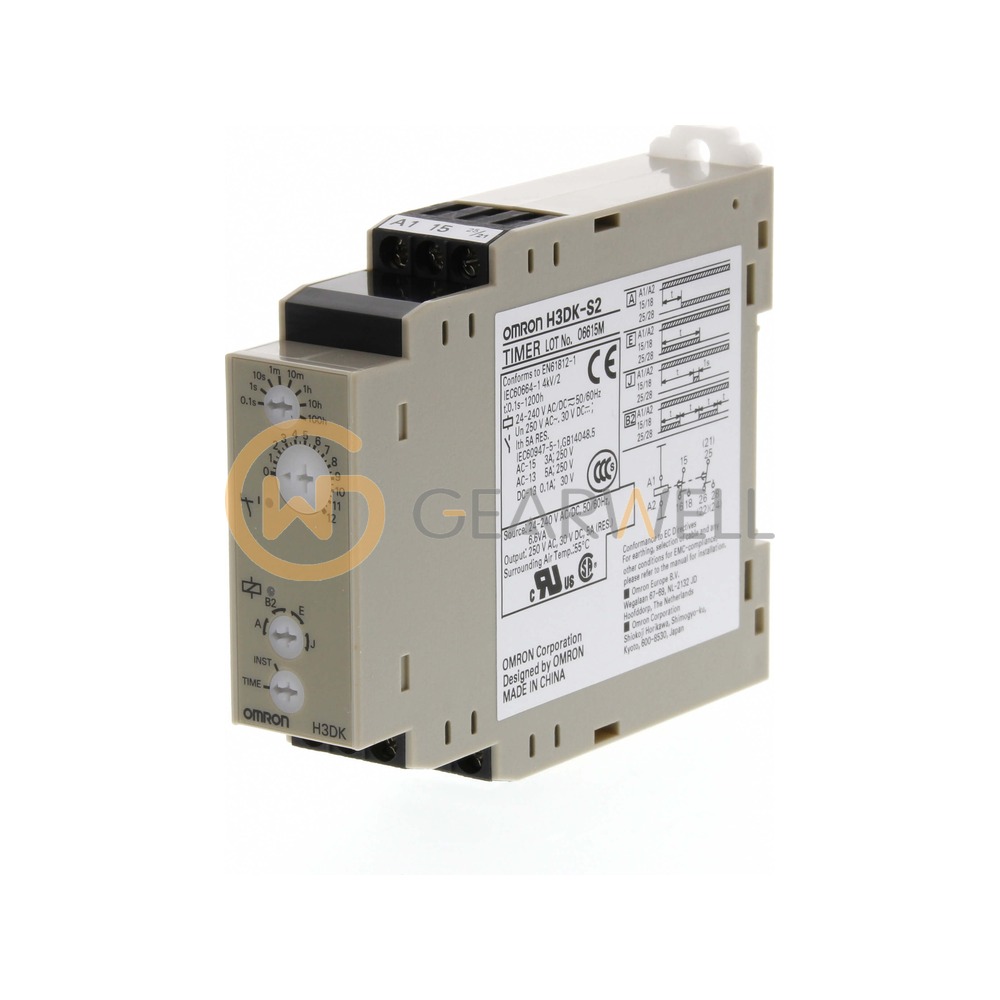

OMRON H3DK-S2 H3DK Analog Timer
- Brand
- OMRON
- Model
- H3DK-S2
- GEARWELL SKU
- GWP-000011578
- Category
- PLCs & I/O
Key specifications
- Width
- 22.5 mm
- Output
- Relay, DPDT
- Mounting
- DIN rail
- Functions
- Multi-functional (ON delay, interval, flicker, one-shot)
- Time range
- 0.1 s to 1200 h
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON H3DK-S2 is a DIN track-mounted, 22.5-mm-wide solid-state multi-range timer of the H3DK-S series with four operating modes: ON delay, flicker ON start, interval and one-shot output. Its DPDT contact output can be set by a switch to time-limit DPDT or to time-limit SPDT plus instantaneous SPDT, and is rated 5 A at 250 VAC and 5 A at 30 VDC (resistive load). The time can be set from 0.1 s to 1,200 h in eight ranges, it runs on 24 to 240 VAC/DC, 50/60 Hz (6.6 VA max. at 240 VAC), and it is rated IP30 (terminal block IP20) and weighs approx. 120 g.
Technical reference
| Product name | OMRON H3DK-S2 H3DK Analog Timer |
|---|---|
| Brand | OMRON |
| Model | H3DK-S2 |
| Category | PLCs & I/O |
| Width | 22.5 mm |
| Output | Relay, DPDT |
| Mounting | DIN rail |
| Functions | Multi-functional (ON delay, interval, flicker, one-shot) |
| Time range | 0.1 s to 1200 h |
| Terminal type | Screw |
| Supply voltage | 24 to 240 VAC/VDC |
