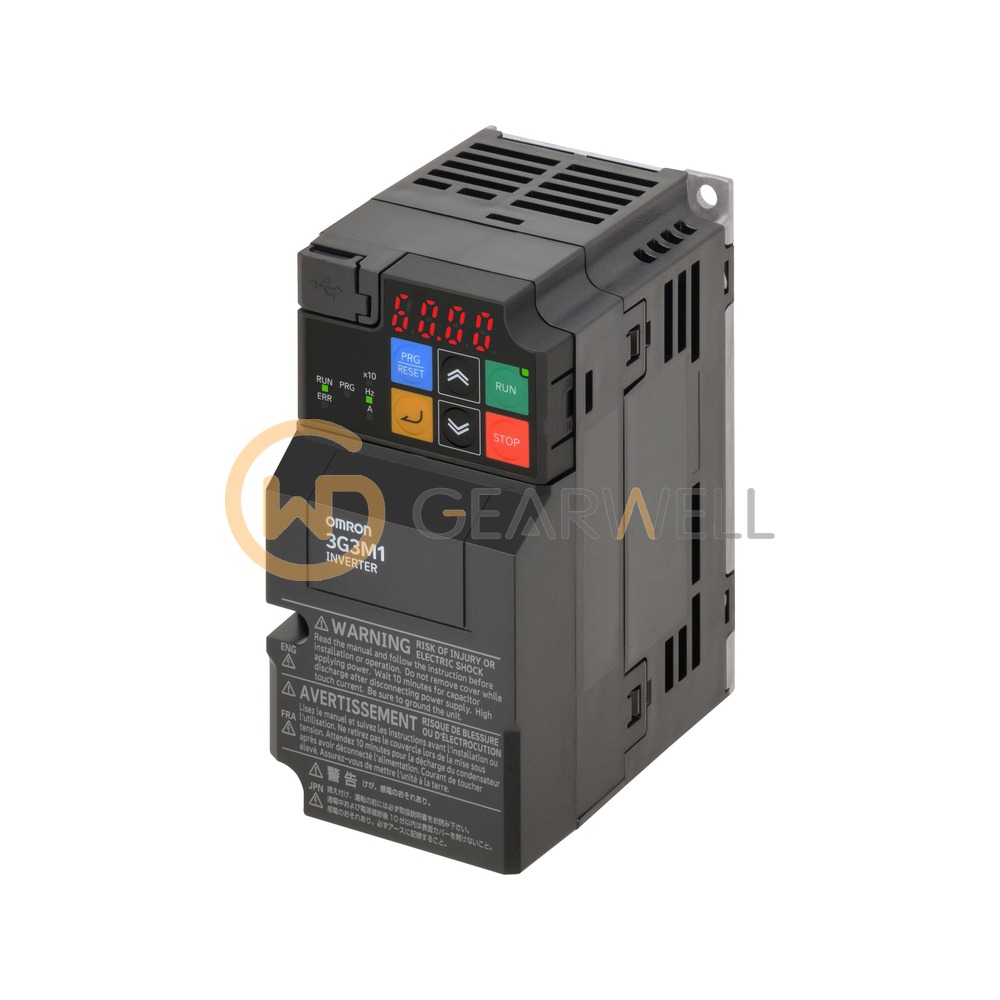

OMRON 3G3M1-AB004 M1 AC Drive
- Brand
- OMRON
- Model
- 3G3M1-AB004
- GEARWELL SKU
- GWP-000011613
- Category
- Variable Frequency Drives
Key specifications
- Weight
- 700 g
- Control method
- V/f and vector control (open/closed loop)
- Supply voltage
- 230 V single phase
- Communication ports
- MODBUS slave, RS-485, USB
- Degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON 3G3M1-AB004 is a 3G3M1 compact variable speed drive for a single-phase 200-240 V supply at 50/60 Hz, with three-phase 200 to 240 V output, IP20, for IM and PM motors. In HHD (150% for 60 seconds) it drives a 0.4 kW motor at 3.0 A rated output current, in HND (120% for 60 seconds) a 0.55 kW motor at 3.5 A (at 40°C ambient). Max. output frequency is 590.0 Hz and it weighs 0.6 kg.
Technical reference
| Product name | OMRON 3G3M1-AB004 M1 AC Drive |
|---|---|
| Brand | OMRON |
| Model | 3G3M1-AB004 |
| Category | Variable Frequency Drives |
| Weight | 700 g |
| Control method | V/f and vector control (open/closed loop) |
| Supply voltage | 230 V single phase |
| Communication ports | MODBUS slave, RS-485, USB |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 127 x 68 x 120 mm |
| Motor output (constant torque) | 0.4 kW |
| Motor output (variable torque) | 0.55 kW |
