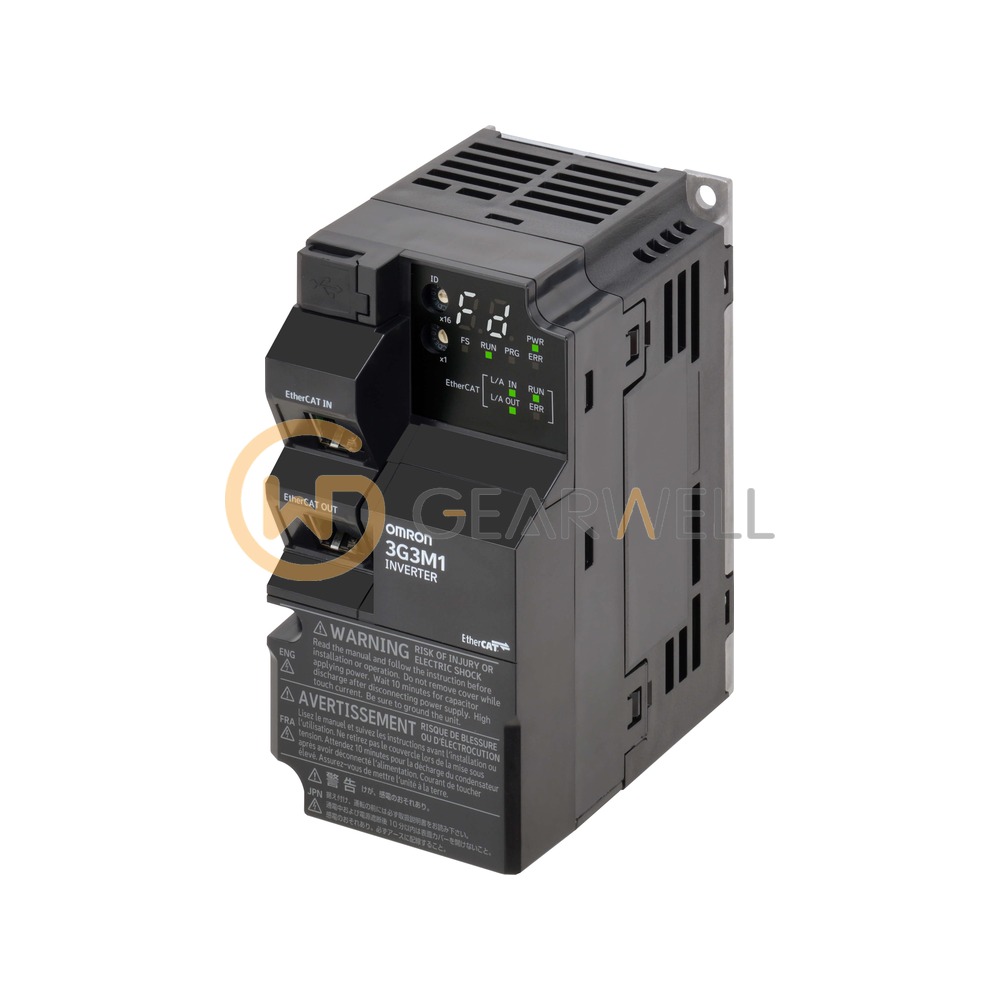

OMRON 3G3M1-AB004-ECT M1 AC Drive
- Brand
- OMRON
- Model
- 3G3M1-AB004-ECT
- GEARWELL SKU
- GWP-000011614
- Category
- Variable Frequency Drives
Key specifications
- Weight
- 700 g
- Control method
- V/f and vector control (open/closed loop)
- Supply voltage
- 230 V single phase
- Communication ports
- EtherCAT slave, USB
- Degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON 3G3M1-AB004-ECT is the 3G3M1-ECT version of the M1 compact variable speed drive, with built-in EtherCAT (standard and ring topology), Safe Stop 0 (STO SIL3 PLe) wired and over FSoE, a built-in encoder / pulse counter input and a 24 VDC backup supply for the control board. It takes a single-phase 200-240 V supply at 50/60 Hz; in HHD it drives a 0.4 kW motor at 3.0 A, in HND a 0.55 kW motor at 3.5 A. Max. output frequency is 590 Hz.
Technical reference
| Product name | OMRON 3G3M1-AB004-ECT M1 AC Drive |
|---|---|
| Brand | OMRON |
| Model | 3G3M1-AB004-ECT |
| Category | Variable Frequency Drives |
| Weight | 700 g |
| Control method | V/f and vector control (open/closed loop) |
| Supply voltage | 230 V single phase |
| Communication ports | EtherCAT slave, USB |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 127 x 68 x 120 mm |
| Motor output (constant torque) | 0.4 kW |
| Motor output (variable torque) | 0.55 kW |
