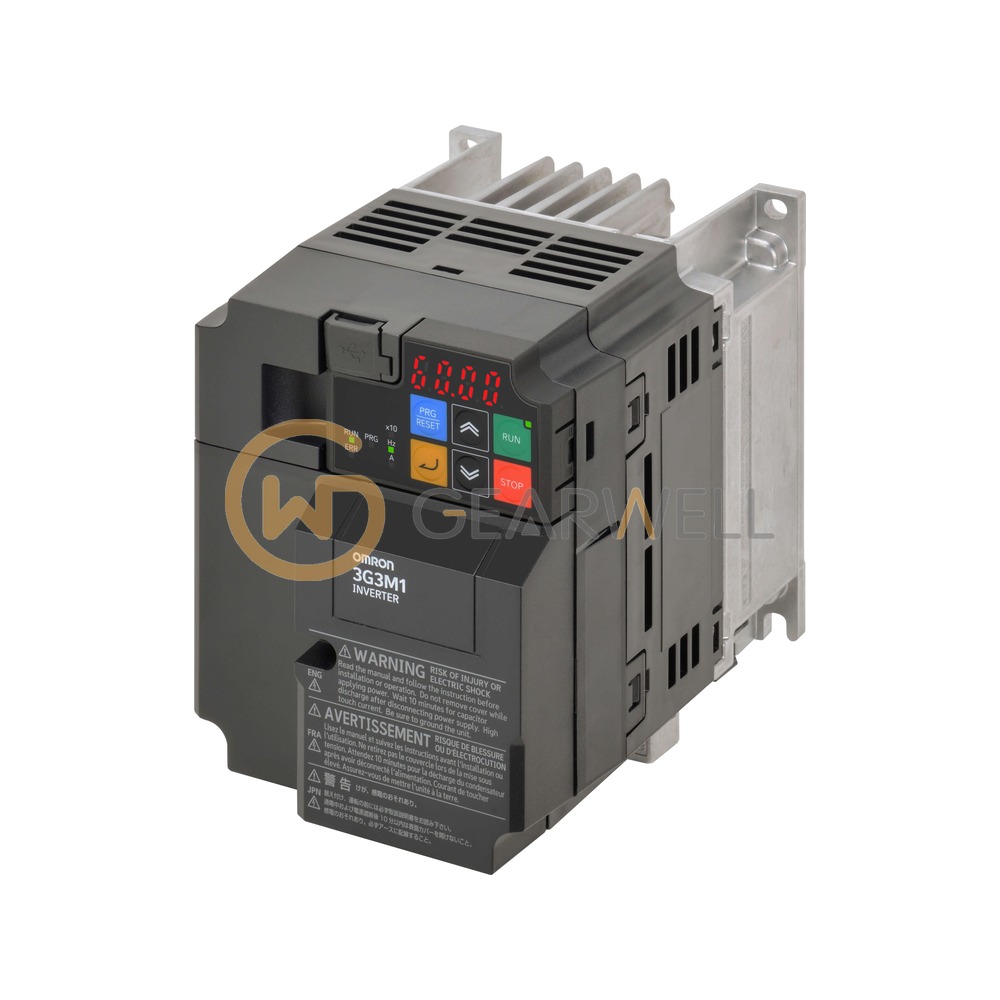

OMRON 3G3M1-A4004 M1 AC Drive
- Brand
- OMRON
- Model
- 3G3M1-A4004
- GEARWELL SKU
- GWP-000011612
- Category
- Variable Frequency Drives
Key specifications
- Weight
- 1200 g
- Control method
- V/f and vector control (open/closed loop)
- Supply voltage
- 400 V three phase
- Communication ports
- MODBUS slave, RS-485, USB
- Degree of protection
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON 3G3M1-A4004 is a 3G3M1 compact variable speed drive for 3-phase 380-480 V at 50/60 Hz, IP20, for IM and PM motors. In HHD (heavy duty, 150% for 60 seconds) it drives a 0.4 kW motor at 1.8 A rated output current, in HND (normal duty, 120% for 60 seconds) a 0.75 kW motor at 2.1 A. Max. output frequency is 590.0 Hz. It weighs 1.2 kg and measures 110 x 130 x 132 mm (W x H x D).
Technical reference
| Product name | OMRON 3G3M1-A4004 M1 AC Drive |
|---|---|
| Brand | OMRON |
| Model | 3G3M1-A4004 |
| Category | Variable Frequency Drives |
| Weight | 1200 g |
| Control method | V/f and vector control (open/closed loop) |
| Supply voltage | 400 V three phase |
| Communication ports | MODBUS slave, RS-485, USB |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 130 x 110 x 132 mm |
| Motor output (constant torque) | 0.4 kW |
| Motor output (variable torque) | 0.75 kW |
