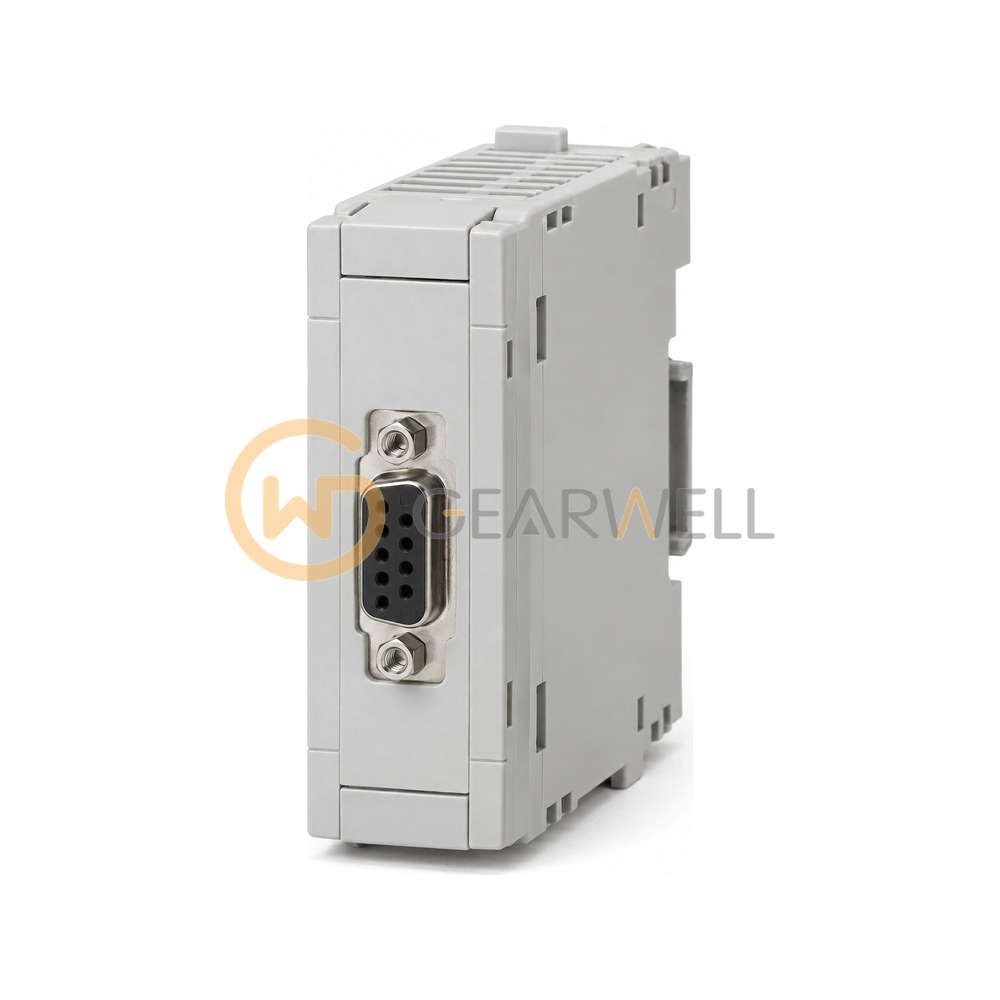

Mitsubishi Electric FX2N-232IF RS-232C communication block
- Brand
- Mitsubishi Electric
- Model
- FX2N-232IF
- GEARWELL SKU
- GWP-000013493
- Category
- Industrial Communication
Key specifications
- Mass
- 0.3 kg
- Connection
- 9-pin D-Sub connector (male)
- Power supply
- 5 V DC 40 mA (internal); 24 V DC ±10% 80 mA (external)
- Applicable PLC
- FX2N, FX3U, FX2NC, FX3UC
- Communication speed
- 300 to 19200 bps
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX2N-232IF is a MELSEC-F special function block that adds one RS-232C port for non-protocol communication. The port is a 9-pin D-sub male connector. The block occupies 8 I/O points on the PLC and draws 40 mA from the PLC's 5 V DC supply plus 80 mA from an external 24 V DC supply. Confirm the PLC series and the device it will talk to when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX2N-232IF RS-232C communication block |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX2N-232IF |
| Category | Industrial Communication |
| Mass | 0.3 kg |
| Connection | 9-pin D-Sub connector (male) |
| Power supply | 5 V DC 40 mA (internal); 24 V DC ±10% 80 mA (external) |
| Applicable PLC | FX2N, FX3U, FX2NC, FX3UC |
| Communication speed | 300 to 19200 bps |
| Communication method | Full-duplex, non-protocol communication |
| Transmission distance | 15 m maximum |
| Transmission standard | RS-232C |
