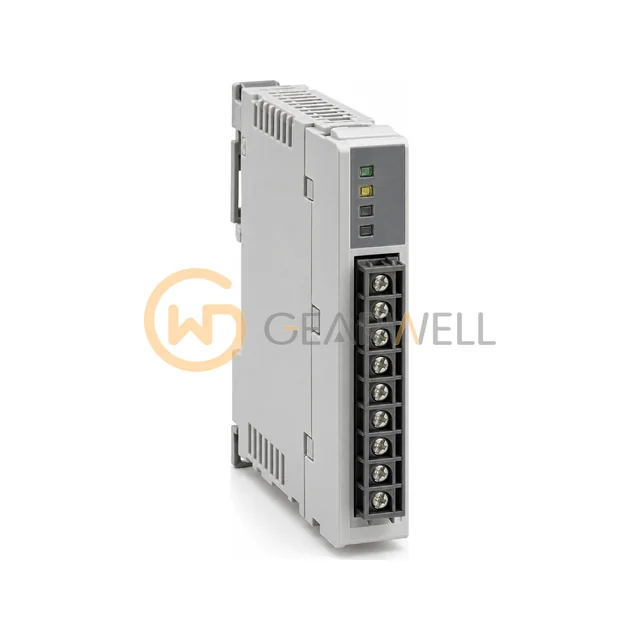

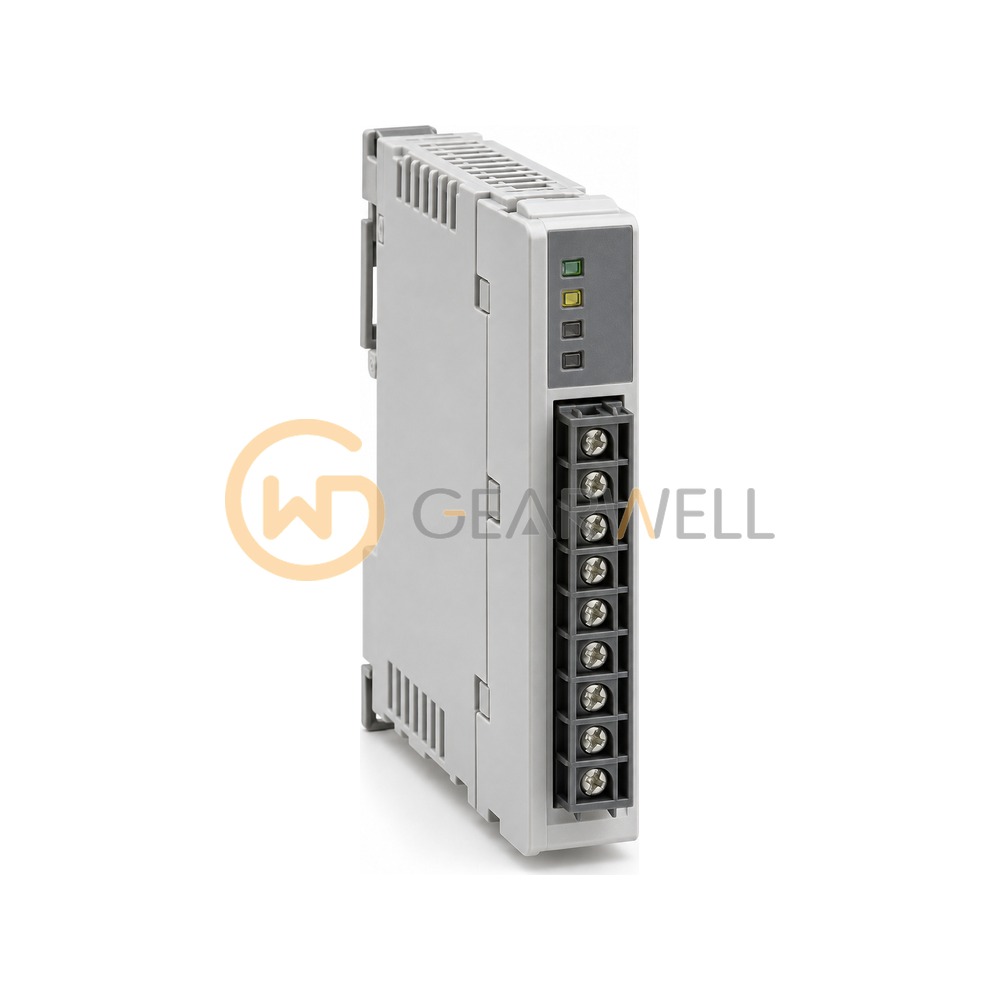

Mitsubishi Electric FX2N-32CCL CC-Link interface block (remote device station)
- Brand
- Mitsubishi Electric
- Model
- FX2N-32CCL
- GEARWELL SKU
- GWP-000013494
- Category
- Industrial Communication
Key specifications
- Mass
- 0.2 kg
- Station type
- Remote device station
- Applicable PLC
- FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC
- CC-Link version
- Ver. 1.00
- Transmission speed
- 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX2N-32CCL is a MELSEC-F interface block that connects an FX PLC to a CC-Link network as a remote device station, occupying 1 to 4 stations. It occupies 8 I/O points on the PLC and draws 130 mA from the PLC's 5 V DC supply plus 50 mA from an external 24 V DC supply. Confirm the CC-Link master and the number of stations you need when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX2N-32CCL CC-Link interface block (remote device station) |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX2N-32CCL |
| Category | Industrial Communication |
| Mass | 0.2 kg |
| Station type | Remote device station |
| Applicable PLC | FX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC |
| CC-Link version | Ver. 1.00 |
| Transmission speed | 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps |
| Current consumption | 5 V DC 130 mA (internal); 24 V DC 50 mA (external) |
| Number of occupied stations | 1 to 4 (rotary switch) |
| Number of occupied I/O points | 8 |
