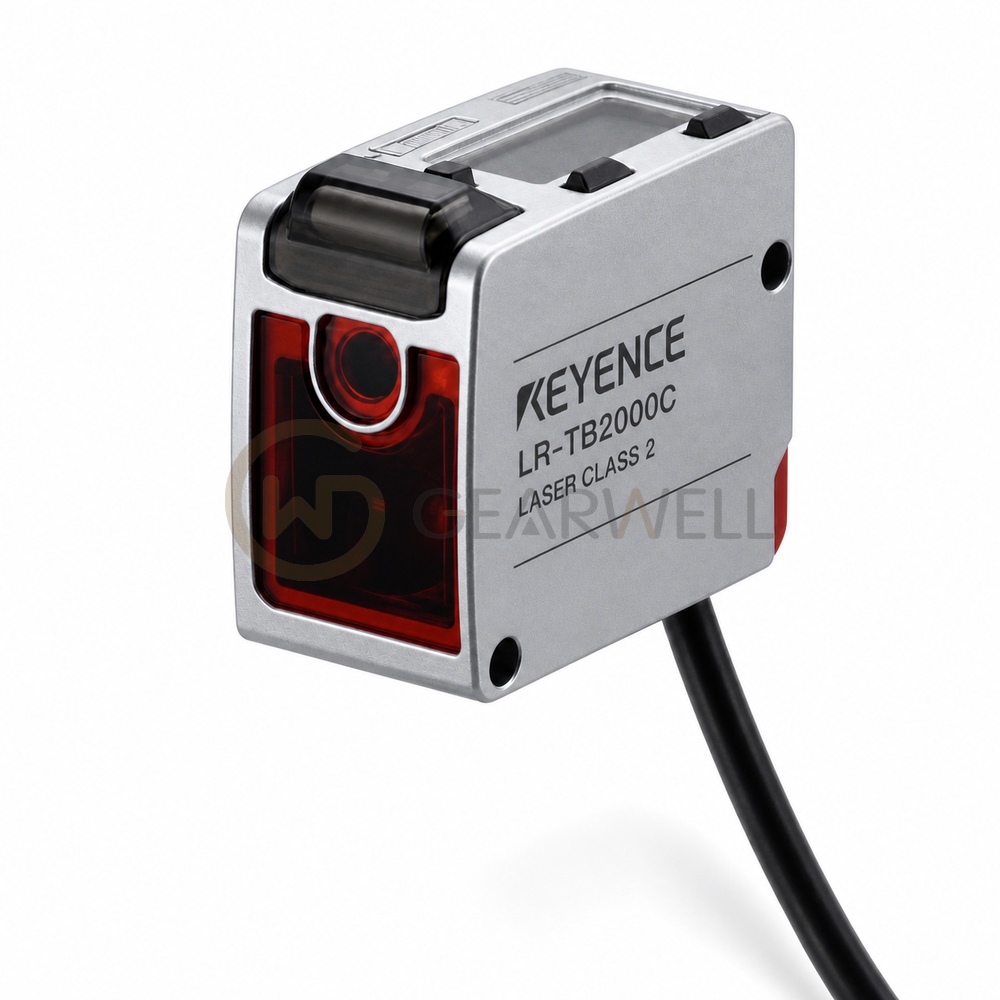

KEYENCE LR-TB2000C Laser Distance Sensor
- Brand
- KEYENCE
- Model
- LR-TB2000C
- GEARWELL SKU
- GWP-000001366
- Category
- Sensors & Instrumentation
Key specifications
- Light source
- Red laser, 660 nm, Class 2
- Product type
- All-purpose laser sensor
- Power voltage
- 20–30 VDC
- Response time
- 1 / 10 / 25 / 100 / 1,000 ms selectable
- Spot diameter
- Approximately 4 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The LR-TB2000C is a KEYENCE LR-T series all-purpose laser sensor. It has a 60–2,000 mm detection range, uses a Class 2 red laser and offers selectable NPN/PNP open-collector control outputs. Confirm the required configuration and connection details when requesting a quote.
Technical reference
| Product name | KEYENCE LR-TB2000C Laser Distance Sensor |
|---|---|
| Brand | KEYENCE |
| Model | LR-TB2000C |
| Category | Sensors & Instrumentation |
| Light source | Red laser, 660 nm, Class 2 |
| Product type | All-purpose laser sensor |
| Power voltage | 20–30 VDC |
| Response time | 1 / 10 / 25 / 100 / 1,000 ms selectable |
| Spot diameter | Approximately 4 mm |
| Control output | NPN or PNP open collector selectable, 50 mA max |
| Detectable distance | 60–2,000 mm |
| Degree of protection | IP65 / IP67 |
