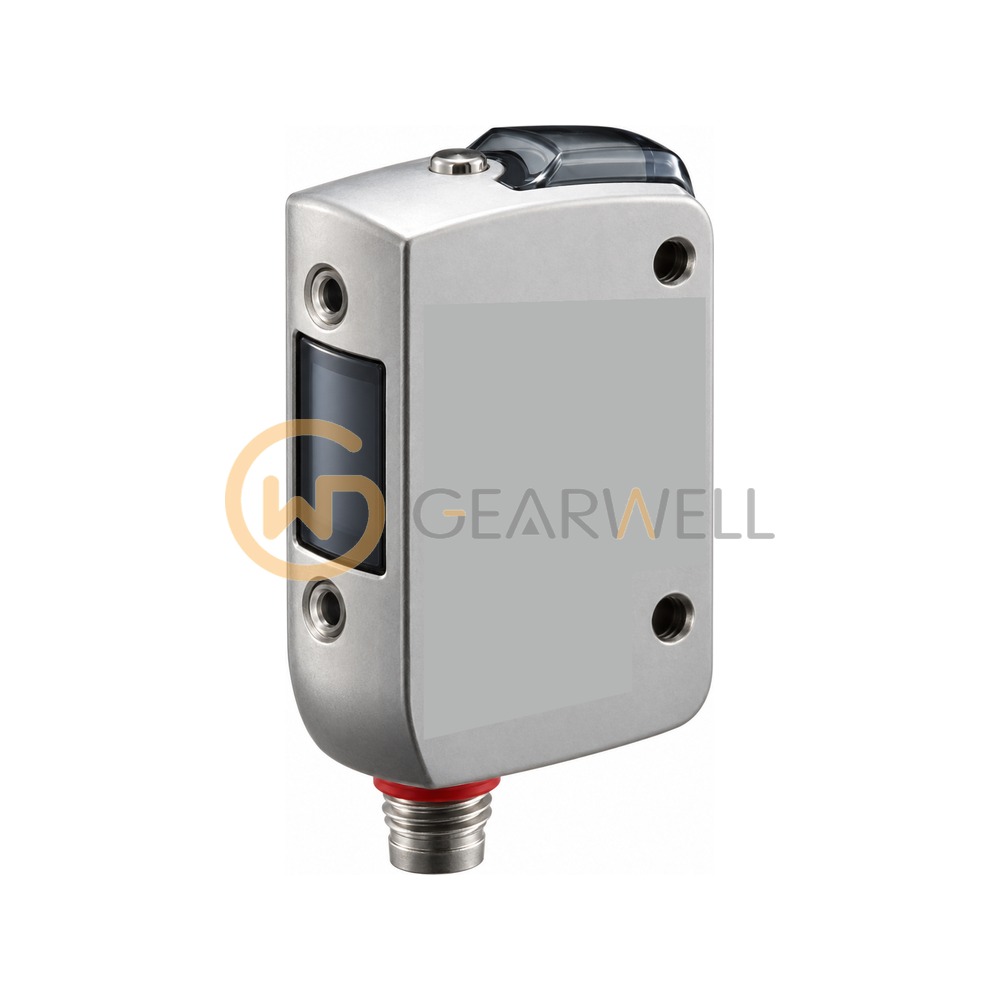

KEYENCE LR-ZH500C3P LR-Z Laser Sensor
- Brand
- KEYENCE
- Model
- LR-ZH500C3P
- GEARWELL SKU
- GWP-000012848
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- PNP open collector, 100 mA max.
- Spot size
- approx. ø3 mm
- Connection
- M8 connector, 3-pin
- Laser class
- Class 2 (IEC60825-1)
- Light source
- Red laser, 660 nm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE LR-ZH500C3P LR-Z Laser Sensor |
|---|---|
| Brand | KEYENCE |
| Model | LR-ZH500C3P |
| Category | Proximity & Photoelectric Sensors |
| Output | PNP open collector, 100 mA max. |
| Spot size | approx. ø3 mm |
| Connection | M8 connector, 3-pin |
| Laser class | Class 2 (IEC60825-1) |
| Light source | Red laser, 660 nm |
| Power voltage | 10 to 30 VDC |
| Response time | 1.5 / 10 / 50 ms selectable |
| Enclosure rating | IP68, IP69K, NEMA 4X/6P/13 |
| Detectable distance | 35 to 500 mm |
