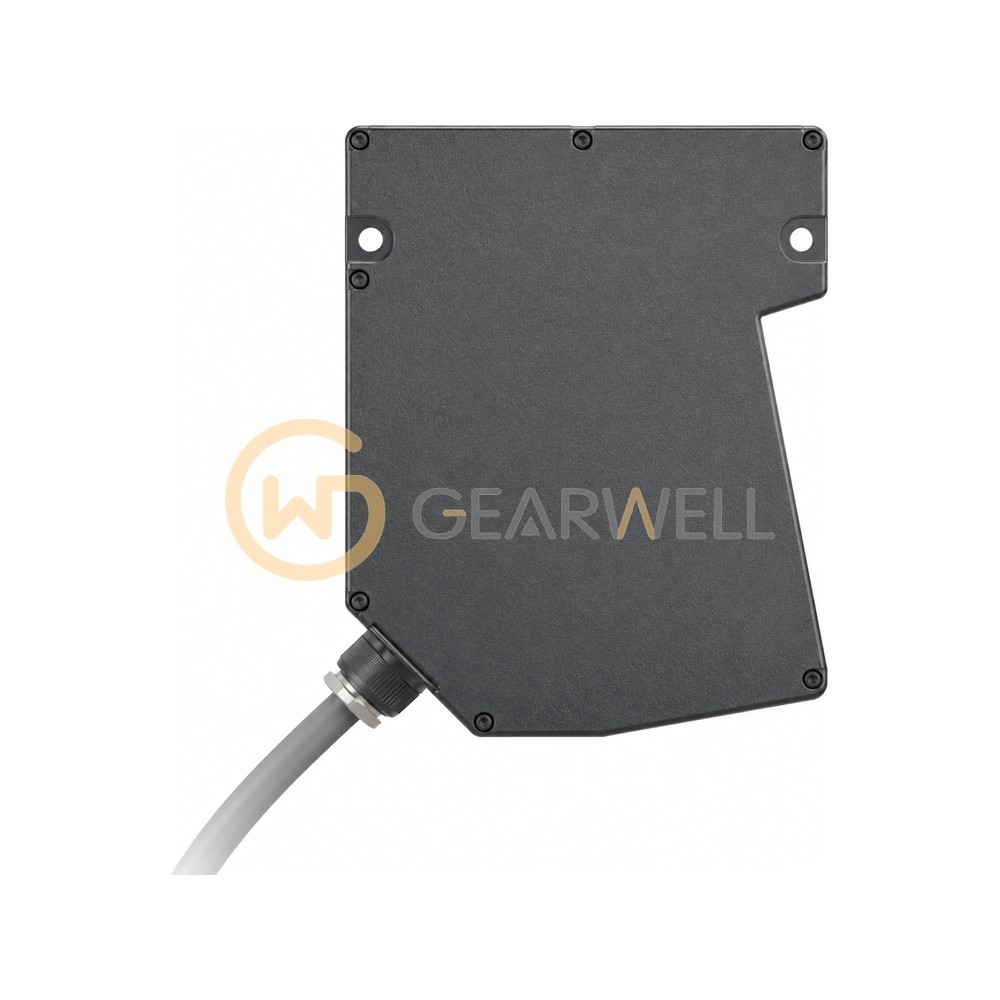

KEYENCE LK-G505 LK-G3000 Laser Displacement Sensor Head
- Brand
- KEYENCE
- Model
- LK-G505
- GEARWELL SKU
- GWP-000015464
- Category
- Test & Measurement
Key specifications
- Head type
- Wide type
- Laser class
- Class 3R (IEC 60825-1)
- Light source
- Red semiconductor laser, 655 nm
- Spot diameter
- Approx. 300 x 9,500 µm
- Sampling cycle
- 20/50/100/200/500/1,000 µs (6 levels)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE LK-G505 LK-G3000 Laser Displacement Sensor Head |
|---|---|
| Brand | KEYENCE |
| Model | LK-G505 |
| Category | Test & Measurement |
| Head type | Wide type |
| Laser class | Class 3R (IEC 60825-1) |
| Light source | Red semiconductor laser, 655 nm |
| Spot diameter | Approx. 300 x 9,500 µm |
| Sampling cycle | 20/50/100/200/500/1,000 µs (6 levels) |
| Measuring range | -250 to +500 mm (diffuse) |
| Reference distance | 500 mm (diffuse), 497.5 mm (specular) |
