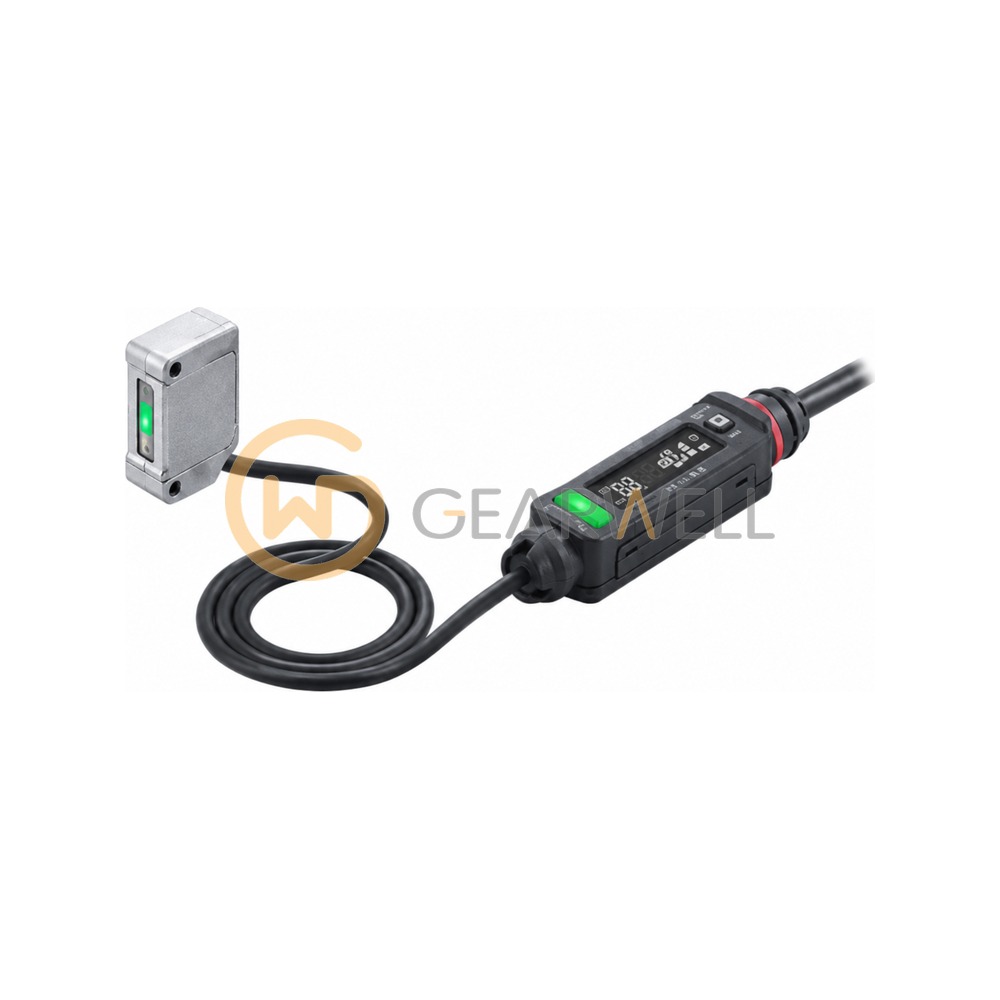

KEYENCE LR-X250 LR-X Laser Sensor
- Brand
- KEYENCE
- Model
- LR-X250
- GEARWELL SKU
- GWP-000010682
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type
- Cable Type
- IO-Link
- Specification v1.1/COM2 (38.4 kbps)
- Spot Size
- Approx. 0.8 mm × 1.2 mm (at a detecting distance of 250 mm)
- Laser Class
- Class 1 Laser Product (IEC60825-1, FDA (CDRH), Part1040.10)
- Response Time
- 500 µs /1 ms/3 ms/10 ms/200 ms Selectable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE LR-X250 LR-X Laser Sensor |
|---|---|
| Brand | KEYENCE |
| Model | LR-X250 |
| Category | Proximity & Photoelectric Sensors |
| Type | Cable Type |
| IO-Link | Specification v1.1/COM2 (38.4 kbps) |
| Spot Size | Approx. 0.8 mm × 1.2 mm (at a detecting distance of 250 mm) |
| Laser Class | Class 1 Laser Product (IEC60825-1, FDA (CDRH), Part1040.10) |
| Response Time | 500 µs /1 ms/3 ms/10 ms/200 ms Selectable |
| Light Source / Type | Green laser (505 nm) |
| Detecting Distance | 30 to 250 mm |
| Display Resolution | 1 to 2 mm |
