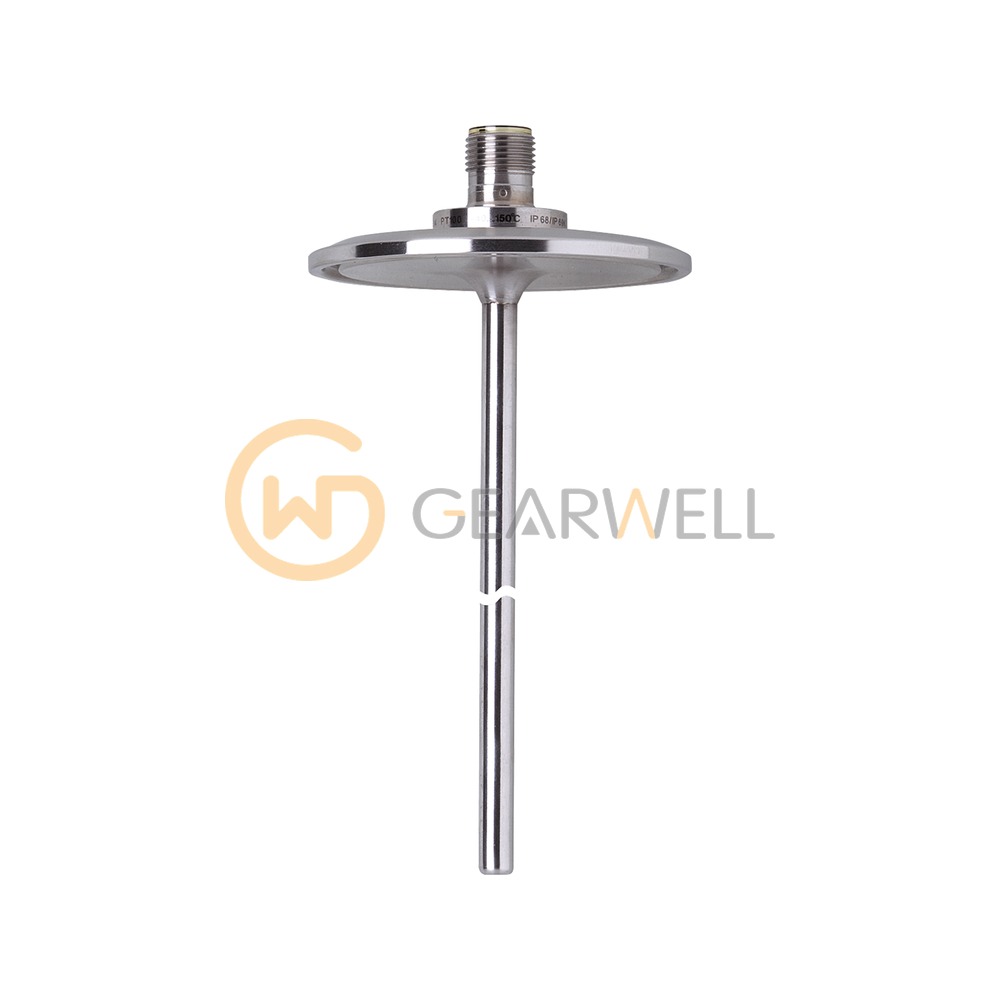

IFM TM4901 Temperature sensor with process connection
- Brand
- IFM
- Model
- TM4901
- GEARWELL SKU
- GWP-000016778
- Category
- Pressure, Flow & Temperature
Key specifications
- Material
- stainless steel (1.4404 / 316L)
- Probe diameter
- 6 mm
- Probe length L
- 30 mm
- Measuring range
- -40...150 °C; -40...302 °F
- Pressure rating
- 25 bar; 2.5 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TM4901 Temperature sensor with process connection |
|---|---|
| Brand | IFM |
| Model | TM4901 |
| Category | Pressure, Flow & Temperature |
| Material | stainless steel (1.4404 / 316L) |
| Probe diameter | 6 mm |
| Probe length L | 30 mm |
| Measuring range | -40...150 °C; -40...302 °F |
| Pressure rating | 25 bar; 2.5 MPa |
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Process connection | Clamp DN50 (2") DIN 32676 (ISO 2852) |
| Installation length EL | 30 mm |
