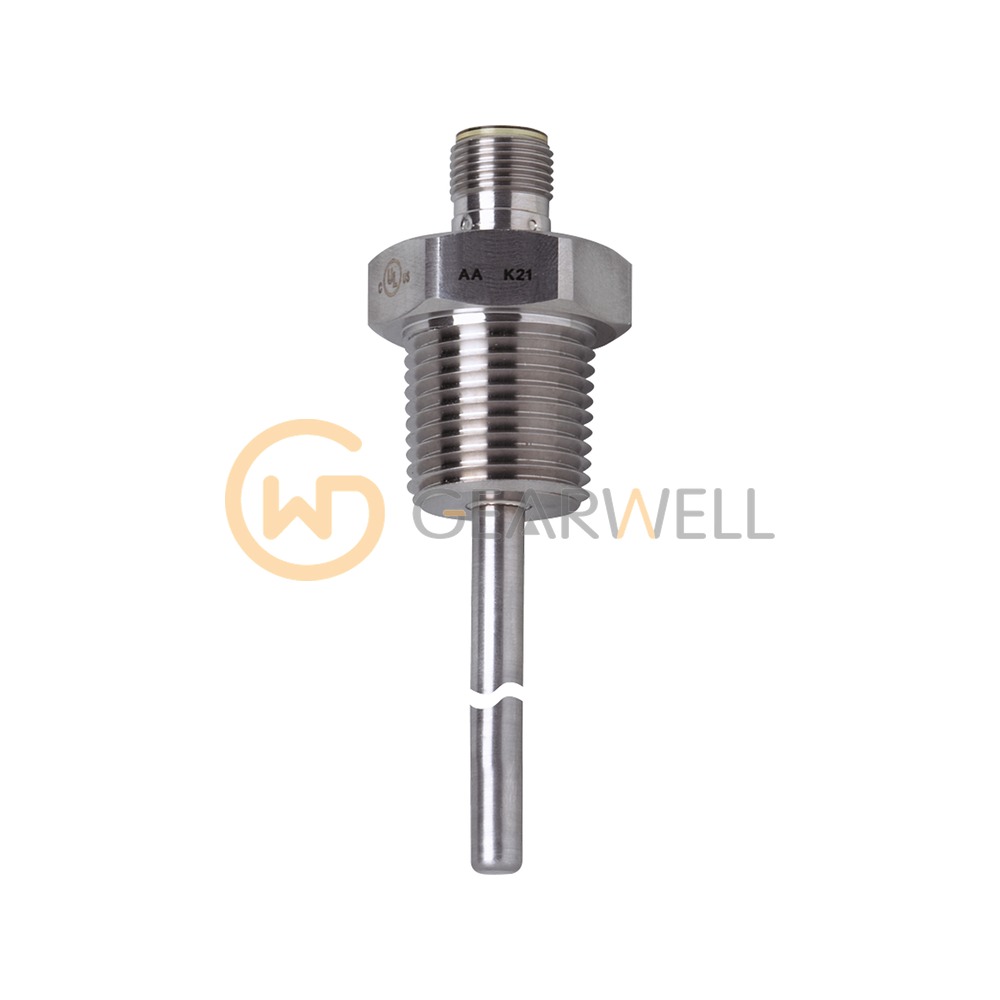

IFM TM4331 Temperature sensor with process connection
- Brand
- IFM
- Model
- TM4331
- GEARWELL SKU
- GWP-000016775
- Category
- Pressure, Flow & Temperature
Key specifications
- Material
- stainless steel (1.4404 / 316L)
- Probe diameter
- 6 mm
- Probe length L
- 92 mm
- Measuring range
- -40...150 °C; -40...302 °F
- Pressure rating
- 160 bar; 16 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TM4331 Temperature sensor with process connection |
|---|---|
| Brand | IFM |
| Model | TM4331 |
| Category | Pressure, Flow & Temperature |
| Material | stainless steel (1.4404 / 316L) |
| Probe diameter | 6 mm |
| Probe length L | 92 mm |
| Measuring range | -40...150 °C; -40...302 °F |
| Pressure rating | 160 bar; 16 MPa |
| Measuring element | 1 x Pt 100; (to DIN EN 60751, class A) |
| Process connection | threaded connection 1/2" NPT external thread |
| Installation length EL | 100 mm |
