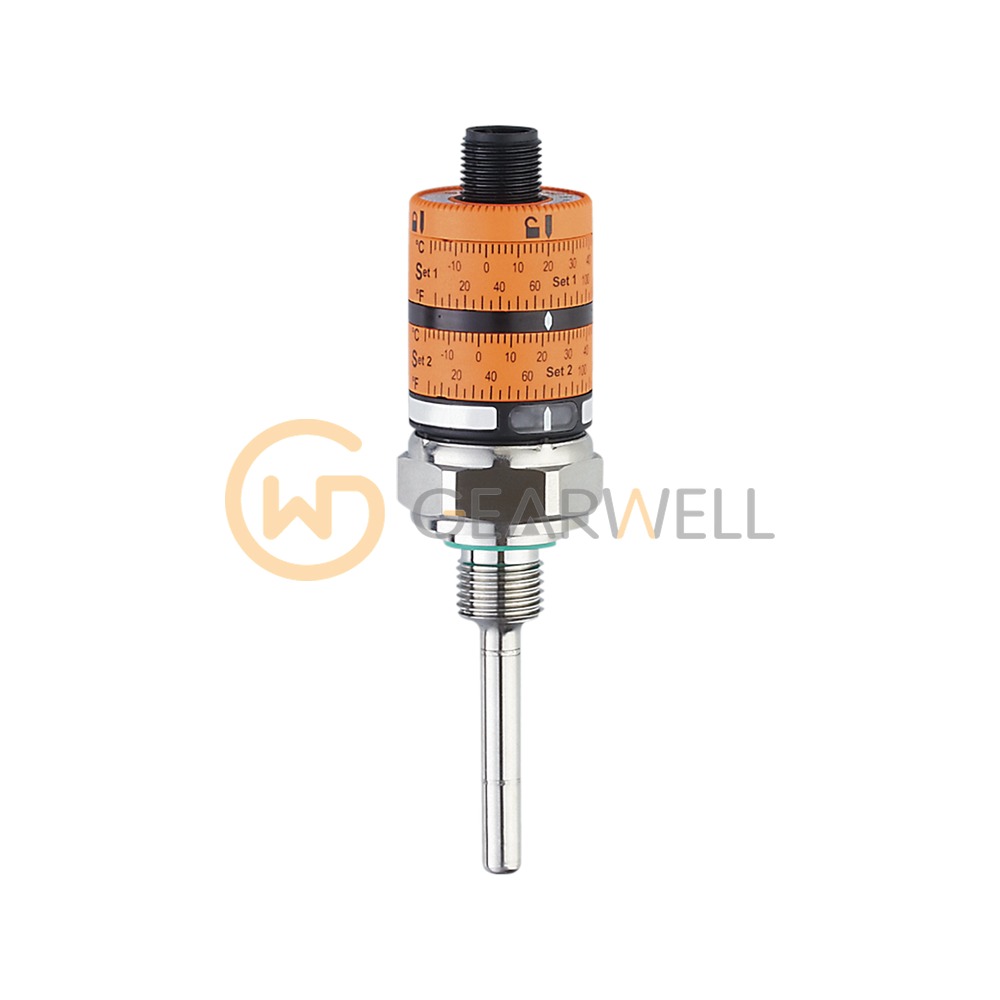

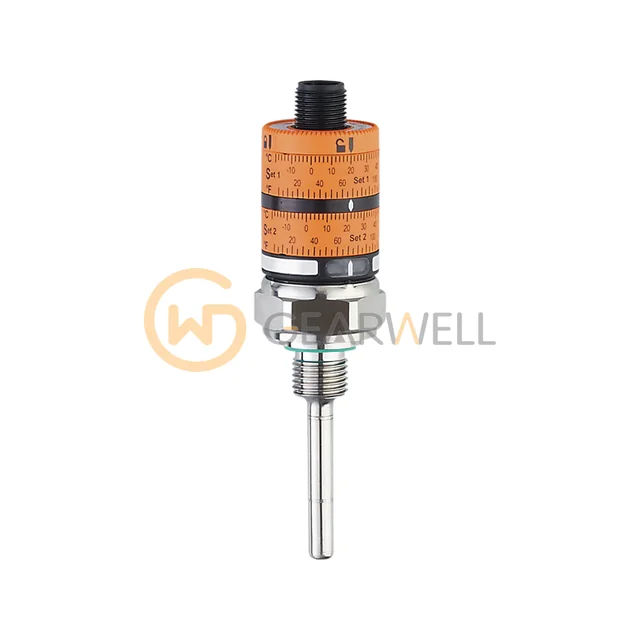

IFM TK7110 Temperature switch with intuitive switch point setting
- Brand
- IFM
- Model
- TK7110
- GEARWELL SKU
- GWP-000016774
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal
- Probe diameter
- 6 mm
- Probe length L
- 38 mm
- Measuring range
- -25...140 °C; -13...284 °F
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TK7110 Temperature switch with intuitive switch point setting |
|---|---|
| Brand | IFM |
| Model | TK7110 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal |
| Probe diameter | 6 mm |
| Probe length L | 38 mm |
| Measuring range | -25...140 °C; -13...284 °F |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 9.6...32 DC; (cULus - Class 2 source required) V |
| Process connection | threaded connection G 1/4 external thread |
| Installation length EL | 50 mm |
