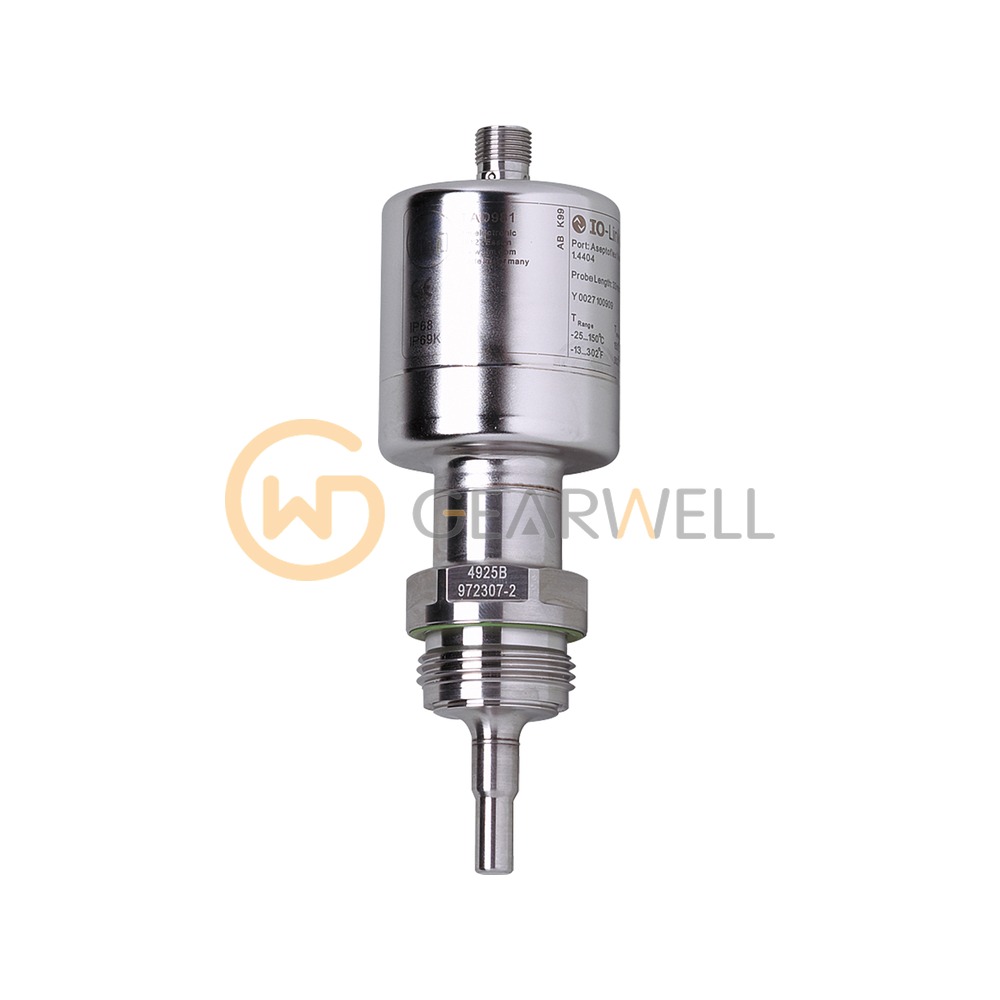

IFM TAD981 Temperature transmitter with drift detection
- Brand
- IFM
- Model
- TAD981
- GEARWELL SKU
- GWP-000016717
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal; analog signal; IO-Link; (configurable)
- Probe diameter
- 10 mm
- Probe length L
- 33 mm
- Measuring range
- -25...160 °C; -13...320 °F
- Measuring element
- 1 x Pt 1000 + 1 x NTC; (thermically coupled, with backup function (temperature measuring even if one of the two sensor elements fails))
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TAD981 Temperature transmitter with drift detection |
|---|---|
| Brand | IFM |
| Model | TAD981 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal; analog signal; IO-Link; (configurable) |
| Probe diameter | 10 mm |
| Probe length L | 33 mm |
| Measuring range | -25...160 °C; -13...320 °F |
| Measuring element | 1 x Pt 1000 + 1 x NTC; (thermically coupled, with backup function (temperature measuring even if one of the two sensor elements fails)) |
| Operating voltage | 18...32 DC; (cULus - Class 2 source required) V |
| Process connection | threaded connection G 1 external thread Aseptoflex Vario |
| Installation length EL | 33 mm |
