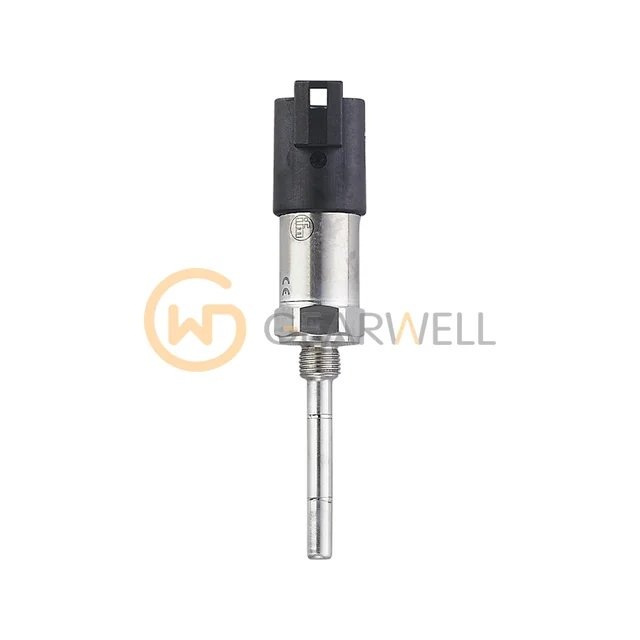

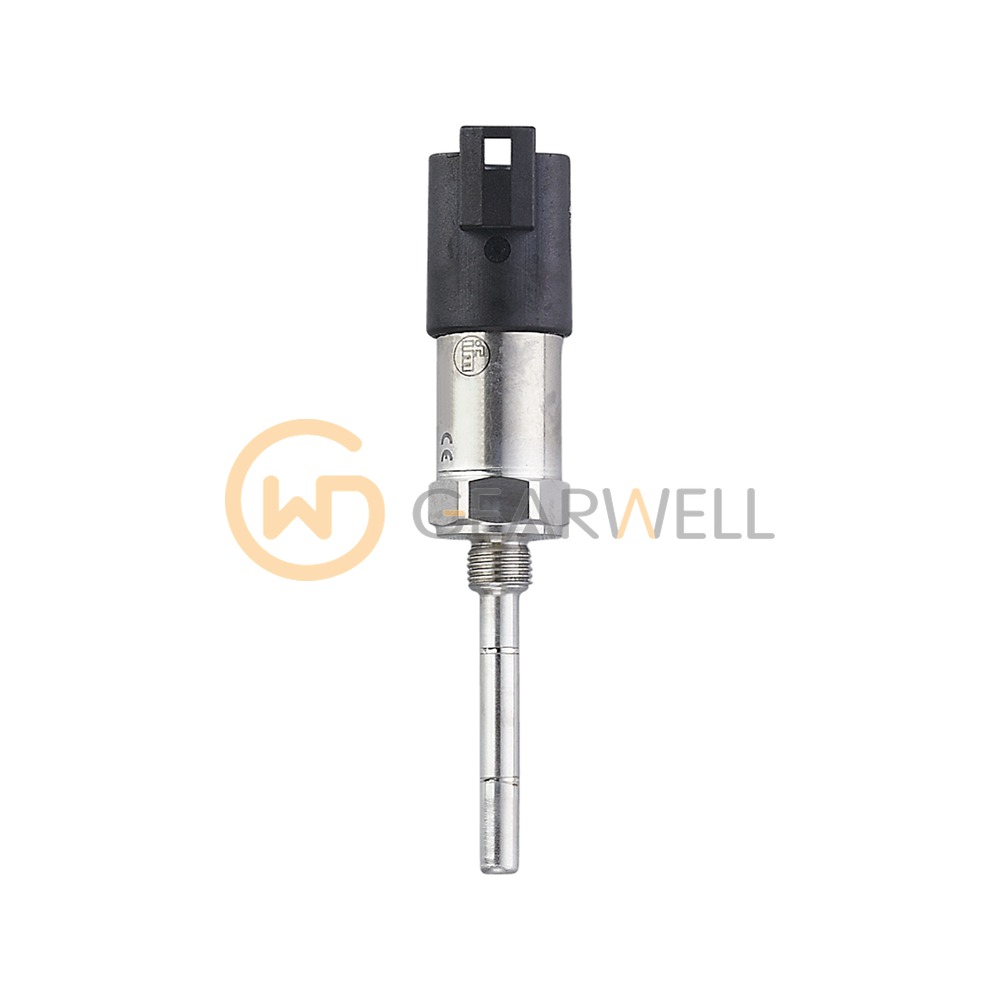

IFM TA4019 TA-050CLEM10-Z- ZVG/DE Temperature transmitter
- Brand
- IFM
- Model
- TA4019
- GEARWELL SKU
- GWP-000016715
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- analogue signal
- Probe diameter
- 6 mm
- Probe length L
- 38 mm
- Measuring range
- -50...150 °C; -58...302 °F
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TA4019 TA-050CLEM10-Z- ZVG/DE Temperature transmitter |
|---|---|
| Brand | IFM |
| Model | TA4019 |
| Category | Pressure, Flow & Temperature |
| Output signal | analogue signal |
| Probe diameter | 6 mm |
| Probe length L | 38 mm |
| Measuring range | -50...150 °C; -58...302 °F |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 10...30 DC; ("supply class 2" to cULus) V |
| Process connection | threaded connection M10 x 1 external thread DIN 3852 T1 FORM A (DIN 3852-1:2002-05) |
| Installation length EL | 50 mm |
