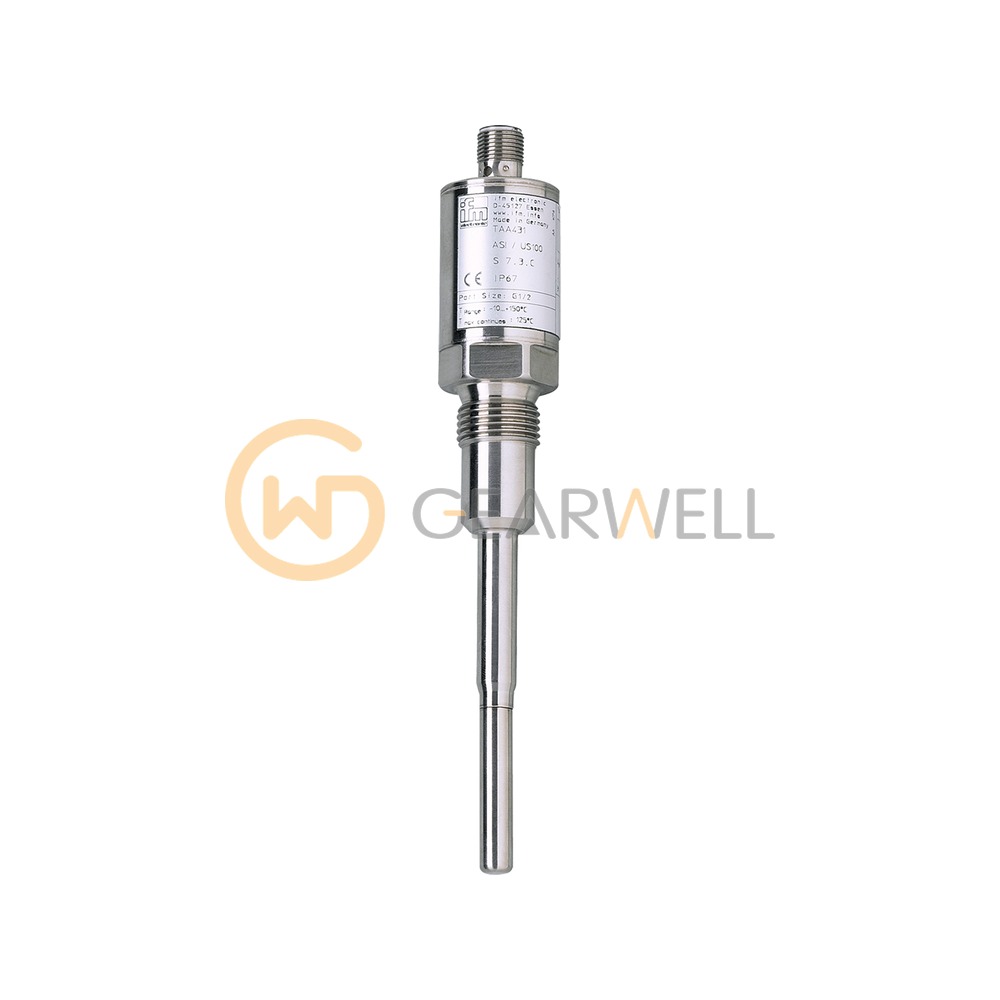

IFM TAA431 TAA123CCDR12-ASIVG/US Temperature transmitter
- Brand
- IFM
- Model
- TAA431
- GEARWELL SKU
- GWP-000016716
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- analog signal
- Probe diameter
- 10 mm
- Probe length L
- 87.5 mm
- Measuring range
- -10...150 °C; 14...302 °F
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TAA431 TAA123CCDR12-ASIVG/US Temperature transmitter |
|---|---|
| Brand | IFM |
| Model | TAA431 |
| Category | Pressure, Flow & Temperature |
| Output signal | analog signal |
| Probe diameter | 10 mm |
| Probe length L | 87.5 mm |
| Measuring range | -10...150 °C; 14...302 °F |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 18...31.6 DC V |
| Process connection | threaded connection G 1/2 external thread |
| Installation length EL | 87.5 mm |
