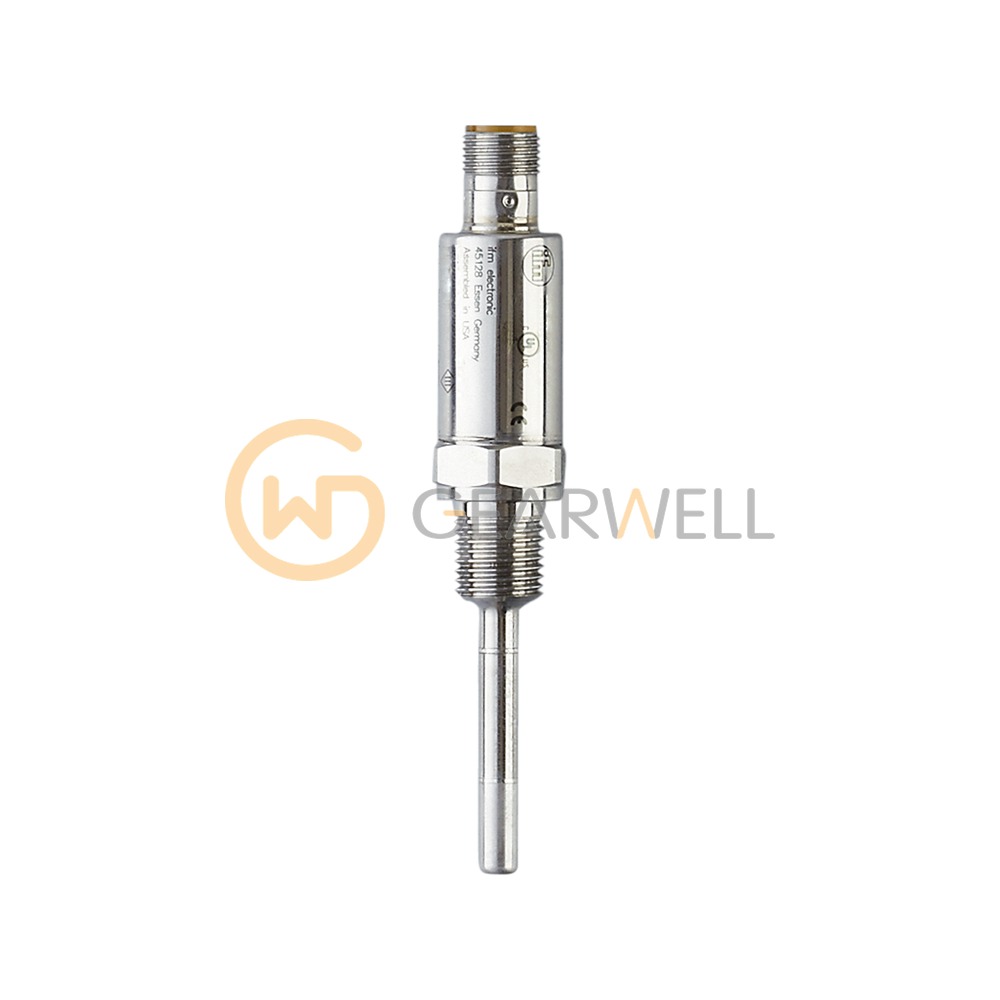

IFM TA3317 TA-050CLEN14-A-ZVG/US Temperature transmitter
- Brand
- IFM
- Model
- TA3317
- GEARWELL SKU
- GWP-000016714
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- analog signal
- Probe diameter
- 6 mm
- Probe length L
- 40.5 mm
- Measuring range
- 0...100 °C; 32...212 °F
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TA3317 TA-050CLEN14-A-ZVG/US Temperature transmitter |
|---|---|
| Brand | IFM |
| Model | TA3317 |
| Category | Pressure, Flow & Temperature |
| Output signal | analog signal |
| Probe diameter | 6 mm |
| Probe length L | 40.5 mm |
| Measuring range | 0...100 °C; 32...212 °F |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 10...30 DC; (cULus - Class 2 source required) V |
| Process connection | threaded connection 1/4" NPT external thread |
| Installation length EL | 50 mm |
