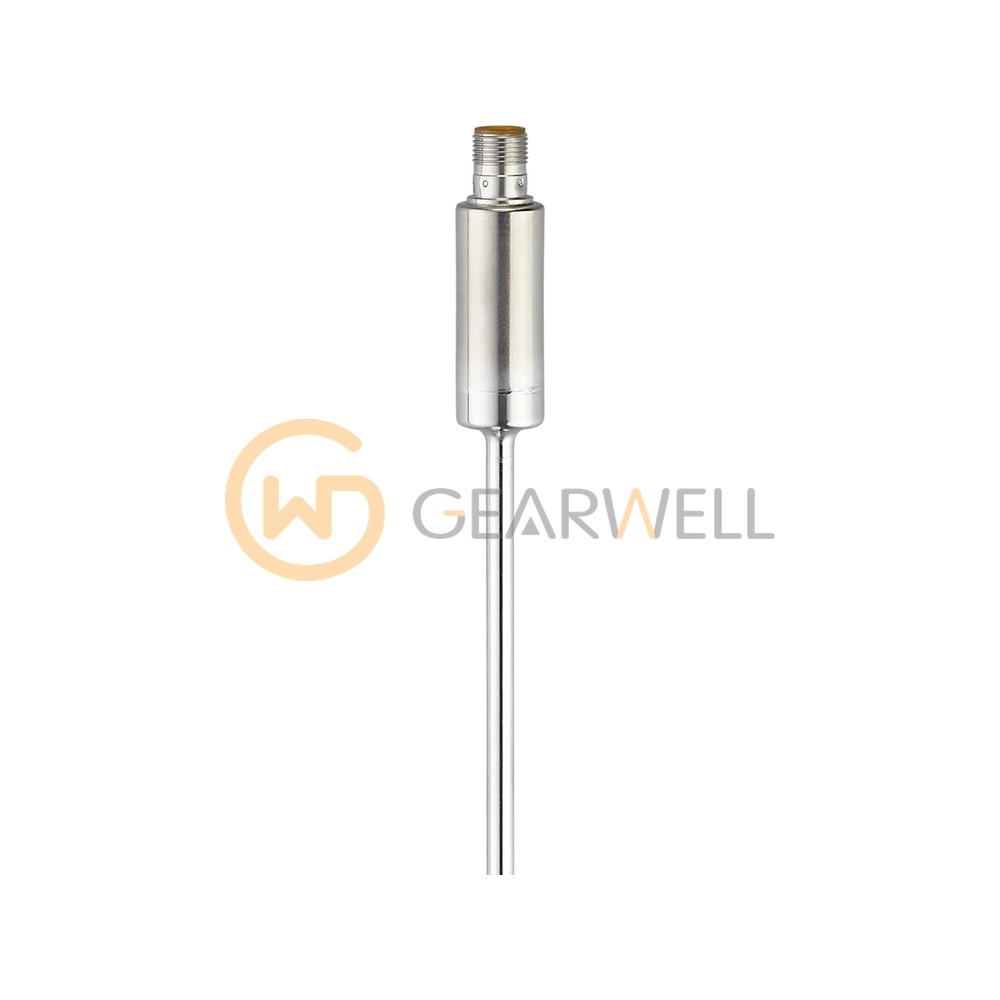

IFM TA2292 TA-350CLED06-- /US Temperature transmitter
- Brand
- IFM
- Model
- TA2292
- GEARWELL SKU
- GWP-000016709
- Category
- Pressure, Flow & Temperature
Key specifications
- Media
- liquids and gases
- Output signal
- analog signal; IO-Link; (configurable)
- Measuring range
- -50...200 °C
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
- Operating voltage
- 18...32 DC; (cULus - Class 2 source required) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TA2292 TA-350CLED06-- /US Temperature transmitter |
|---|---|
| Brand | IFM |
| Model | TA2292 |
| Category | Pressure, Flow & Temperature |
| Media | liquids and gases |
| Output signal | analog signal; IO-Link; (configurable) |
| Measuring range | -50...200 °C |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 18...32 DC; (cULus - Class 2 source required) V |
| Process connection | Clamp fitting Ø 6 mm |
| Analog current output | 4...20 mA |
| Installation length EL | 350 mm |
