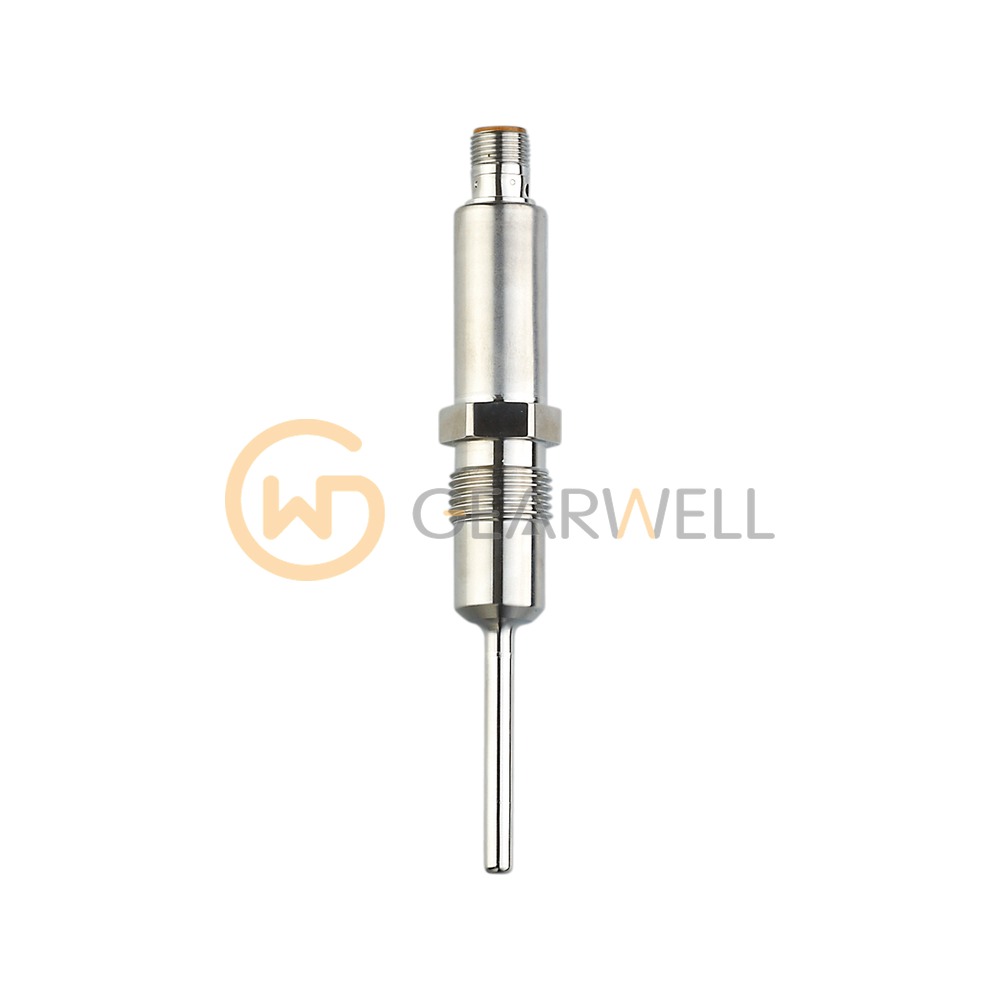

IFM TA2512 TA-050CLER12- - /US Temperature transmitter
- Brand
- IFM
- Model
- TA2512
- GEARWELL SKU
- GWP-000012538
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- analog signal; IO-Link; (configurable)
- Measuring range
- -50...200 °C
- Operating voltage
- 18...32 DC; (cULus - Class 2 source required) V
- Process connection
- threaded connection G 1/2 external thread sealing cone
- Current consumption
- < 50 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm TA2512 (TA-050CLER12- - /US) is a temperature transmitter for liquids and gases. Its measuring range is -50…200 °C. It uses a Pt 1000 measuring element (DIN EN 60751, class A) in a 50 mm probe, Ø 6 mm, with an installation length of 50 mm, and its dynamic response T05 / T09 is under 0.5 / under 2 s. The process connection is a G 1/2 external thread with sealing cone, rated to 160 bar, and the wetted parts are electropolished stainless steel (1.4404 / 316L). It provides 1 analog output (4…20 mA) and IO-Link, runs on 18…32 V DC and connects through an M12 connector (A-coded, 4 contacts). ifm specifies an analog output precision of ±(0.3 K + 0.1 % of the set measuring span); accuracy values apply to flowing water. The unit is Ø 18.7 mm and 148.8 mm long and is rated IP67, IP68 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM TA2512 TA-050CLER12- - /US Temperature transmitter |
|---|---|
| Brand | IFM |
| Model | TA2512 |
| Category | Pressure, Flow & Temperature |
| Output signal | analog signal; IO-Link; (configurable) |
| Measuring range | -50...200 °C |
| Operating voltage | 18...32 DC; (cULus - Class 2 source required) V |
| Process connection | threaded connection G 1/2 external thread sealing cone |
| Current consumption | < 50 mA |
| Installation length EL | 50 mm |
| Communication interface | IO-Link |
| Number of inputs and outputs | Number of analog outputs: 1 |
