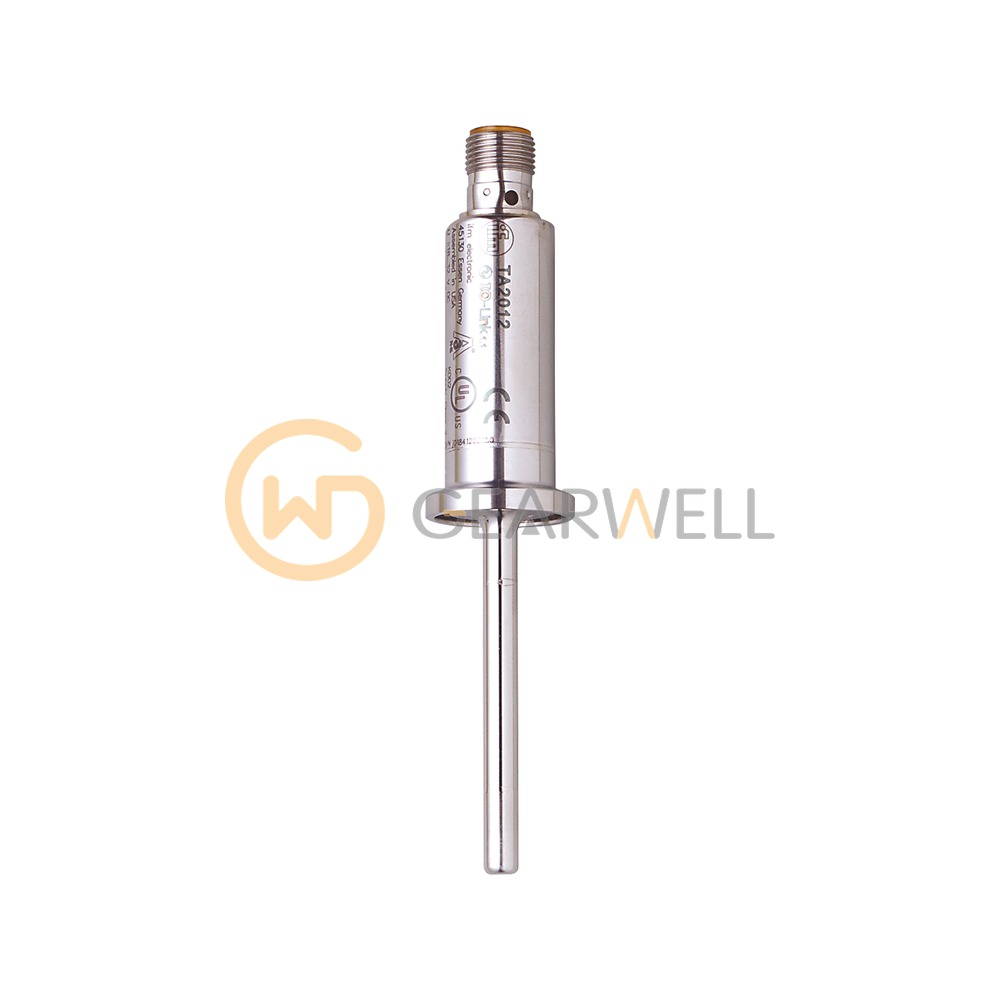

IFM TA2012 TA-060CLEC34- - /US Temperature transmitter
- Brand
- IFM
- Model
- TA2012
- GEARWELL SKU
- GWP-000016707
- Category
- Pressure, Flow & Temperature
Key specifications
- Media
- liquids and gases
- Output signal
- analog signal; IO-Link; (configurable)
- Measuring range
- -50...200 °C
- Measuring element
- 1 x Pt 1000; (to DIN EN 60751, class A)
- Operating voltage
- 18...32 DC; (cULus - Class 2 source required) V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM TA2012 TA-060CLEC34- - /US Temperature transmitter |
|---|---|
| Brand | IFM |
| Model | TA2012 |
| Category | Pressure, Flow & Temperature |
| Media | liquids and gases |
| Output signal | analog signal; IO-Link; (configurable) |
| Measuring range | -50...200 °C |
| Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) |
| Operating voltage | 18...32 DC; (cULus - Class 2 source required) V |
| Process connection | Clamp DN06...DN08 (1/4...3/4") DIN 32676 (ISO 2852) |
| Analog current output | 4...20 mA |
| Installation length EL | 60 mm |
