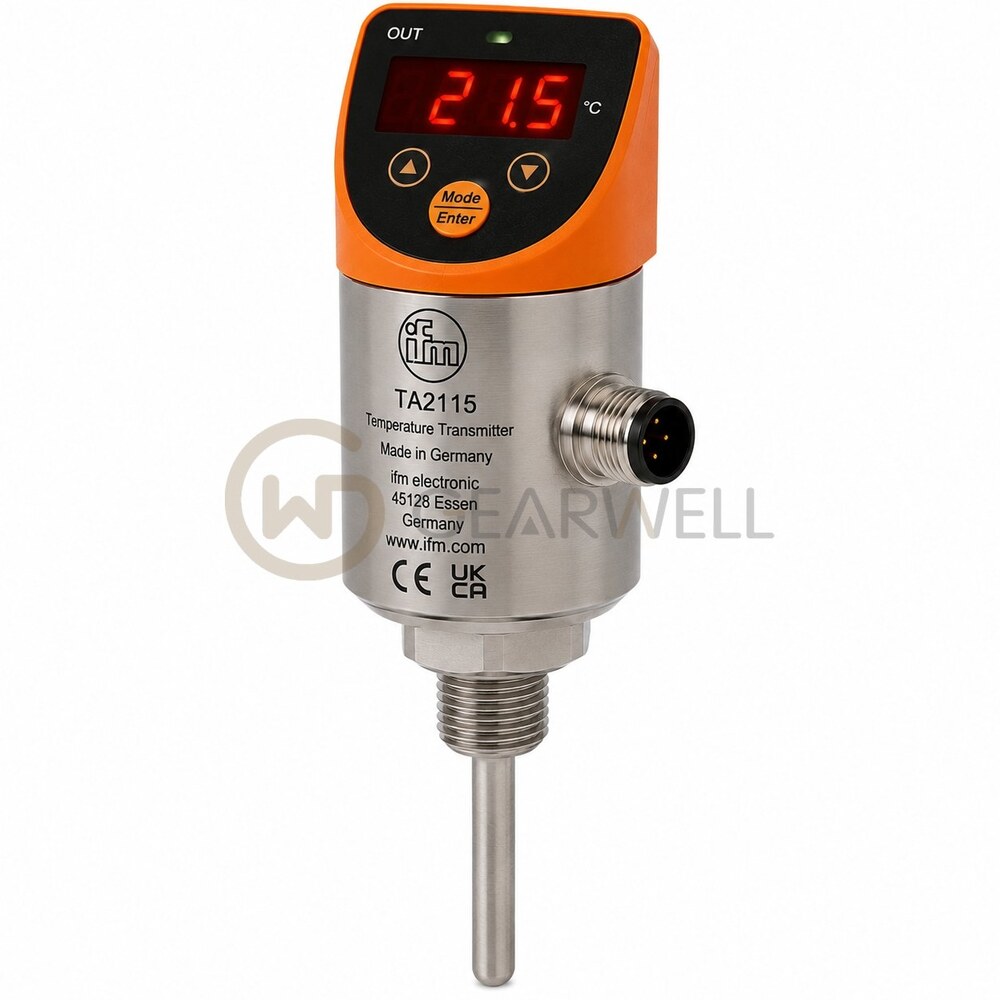

IFM TA2115 Temperature Transmitter
- Brand
- IFM
- Model
- TA2115
- GEARWELL SKU
- GWP-000000510
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 67; IP 68; IP 69K
- Product type
- Temperature transmitter
- Output signal
- analog signal; IO-Link; (configurable)
- Measuring range
- -50...150 °C
- Operating voltage
- 18...32 V DC; (cULus - Class 2 source required)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm TA2115 (TA-050CLER14-A-ZVG/US) is a temperature transmitter for liquids and gases. Its measuring range is -50…150 °C. It uses a Pt 1000 measuring element (DIN EN 60751, class A) in a 37 mm probe, Ø 6 mm, with an installation length of 50 mm, and its dynamic response T05 / T09 is 1 / 3 s. The process connection is a G 1/4 external thread, rated to 400 bar, and the wetted parts are stainless steel (1.4404 / 316L) and FKM O-ring. It provides 1 analog output (4…20 mA) and IO-Link, runs on 18…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies an analog output precision of ±(0.3 K + 0.1 % of the set measuring span). The unit is Ø 18.7 mm and 113.9 mm long and is rated IP67, IP68 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM TA2115 Temperature Transmitter |
|---|---|
| Brand | IFM |
| Model | TA2115 |
| Category | Industrial Automation Parts |
| Protection | IP 67; IP 68; IP 69K |
| Product type | Temperature transmitter |
| Output signal | analog signal; IO-Link; (configurable) |
| Measuring range | -50...150 °C |
| Operating voltage | 18...32 V DC; (cULus - Class 2 source required) |
| Process connection | threaded connection G 1/4 external thread |
| Current consumption | < 50 mA |
| Communication interface | IO-Link |
