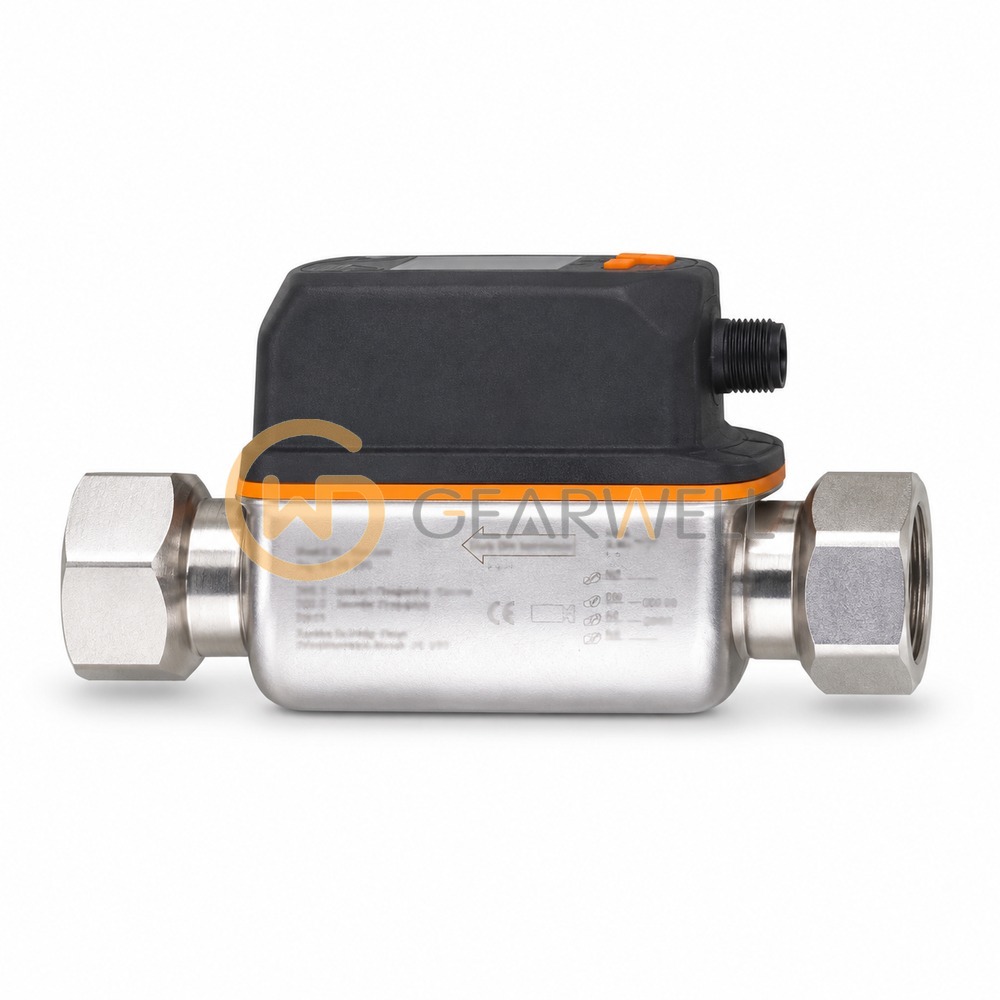

IFM SV7500 Vortex Flow Meter with Display

Product overview

The ifm SV7500 (SVK34XXXIRKG/US-100) is a vortex flow meter with display for water, glycol solutions and coolants, measuring 5…100 l/min and medium temperature over -10…90 °C. ifm gives an accuracy of ±2 % of the final value (water), a repeatability of ±0.5 % of the final value and a response time of 1 s. The process connection is an Rc 3/4 internal thread DN20, the pressure rating is 12 bar, the medium temperature range is -10…90 °C and the wetted parts are stainless steel (1.4404 / 316L), ETFE, PA 6T, PPS and FKM. It has two PNP/NPN switching outputs configurable as normally open or normally closed (100 mA each), a frequency output and IO-Link, runs on 18…30 V DC, connects through an M12 connector (A-coded, 4 gold-plated contacts), measures 135 x 45 x 72 mm and is rated IP65 and IP67 for 0…60 °C ambient.
