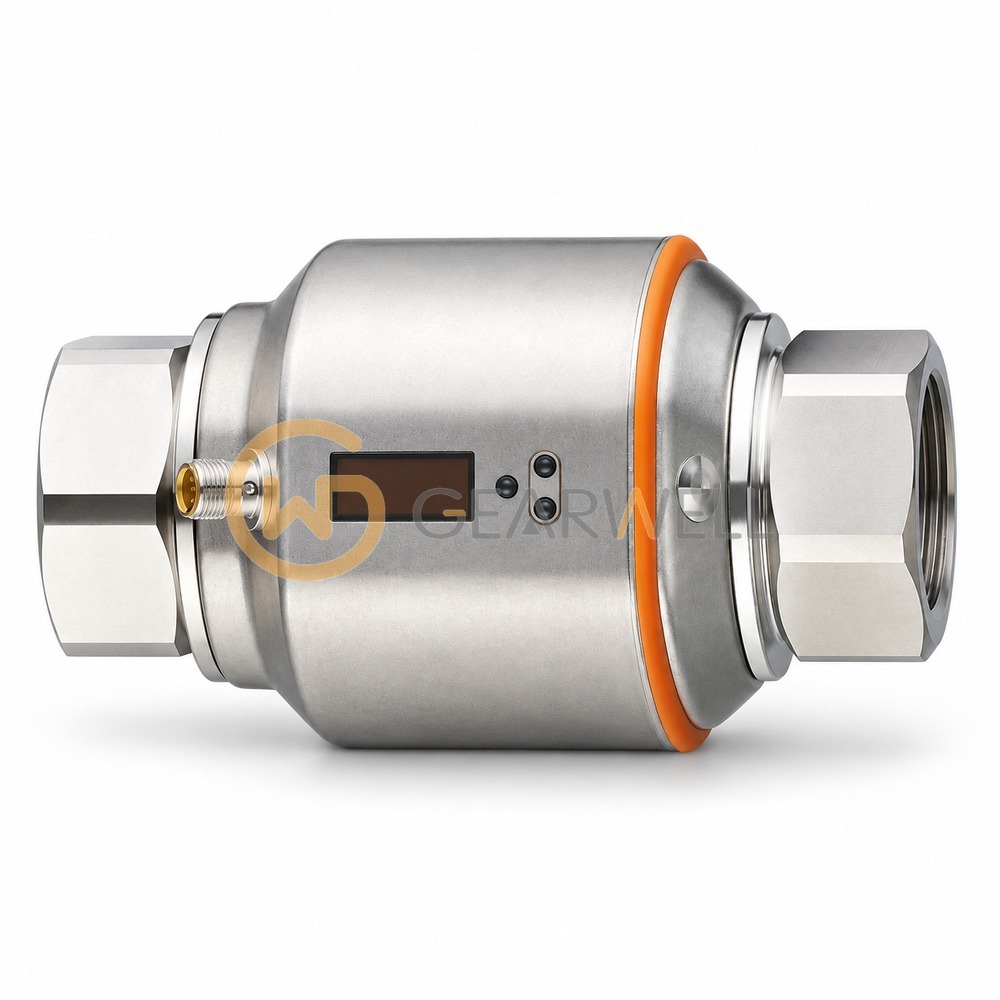

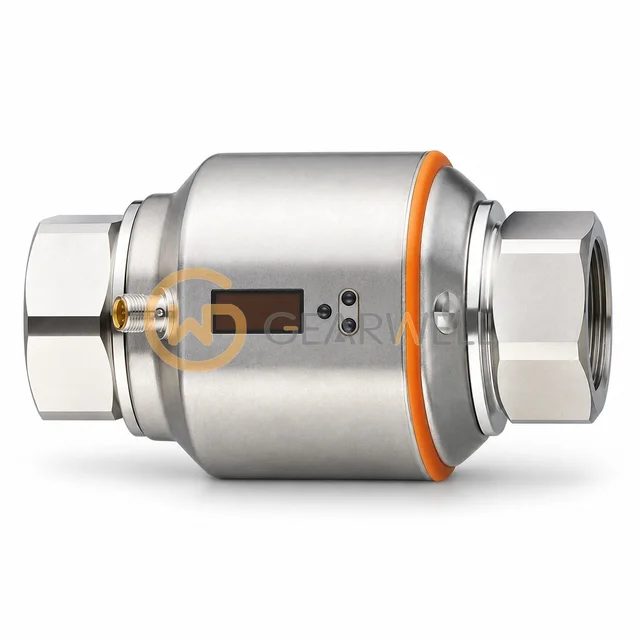

IFM SM9604 Magnetic-Inductive Flow Meter

Product overview

The ifm SM9604 (SMN32XGX50KG/US-100) is a magnetic-inductive flow meter for conductive liquids, water and water-based media. It measures flow over 5…300 l/min (0.3…18 m³/h, 80…4755 gph and 1.3…79.3 gpm), with an accuracy of ± (0.8 % of the measured value + 0.5 % of the final value of the measuring range) and a repeatability of ± 0.2 % of the final value of the measuring range, and also measures medium temperature. ifm specifies a medium conductivity of at least 20 µS/cm and a viscosity below 70 mm²/s at 40 °C. ifm recommends an inlet run of 3 x DN and an outlet run of 1 x DN. The process connection is a 1 1/2" NPT internal thread (DN40), the pressure rating is 16 bar, the wetted parts are stainless steel (1.4404 / 316L), stainless steel (1.4571 / 316Ti), PEEK and FKM. It provides 2 analog outputs (4…20 mA), runs on 18…32 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit measures 170 x 103 x 117 mm and is rated IP65 and IP67.
