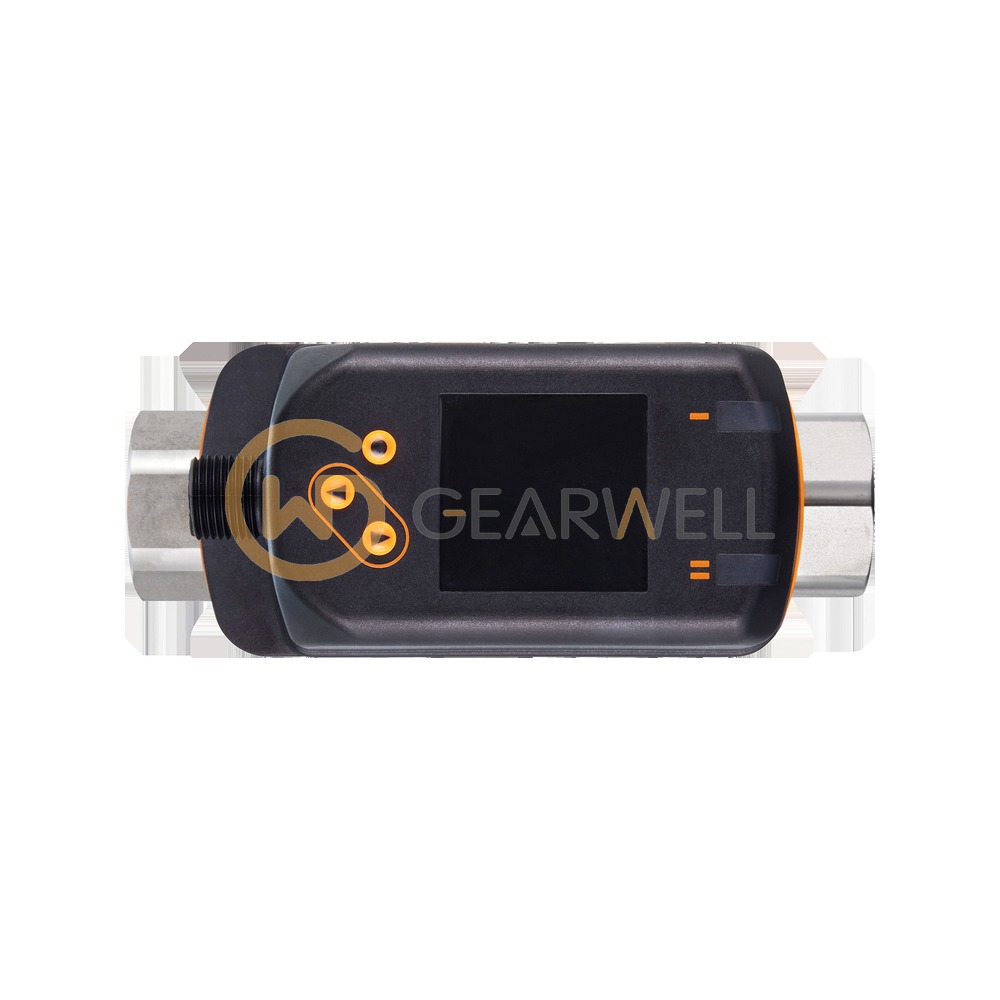

IFM SV4500 SV vortex flowmeters with display for water based media
- Brand
- IFM
- Model
- SV4500
- GEARWELL SKU
- GWP-000012130
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal; frequency signal; IO-Link; (configurable)
- Measuring range
- 1...20 l/min / 0.06...1.2 m³/h
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm SV4500 (SVK12XXXIRKG/US-100) is a vortex flow meter with display for water, glycol solutions and coolants, measuring 1…20 l/min and medium temperature over -10…90 °C. ifm gives an accuracy of ±2 % of the final value (water), a repeatability of ±0.5 % of the final value and a response time of 1 s. The process connection is an Rc 1/2 internal thread DN8, the pressure rating is 12 bar, the medium temperature range is -10…90 °C and the wetted parts are stainless steel (1.4404 / 316L), ETFE, PA 6T, PPS and FKM. It has two PNP/NPN switching outputs configurable as normally open or normally closed (100 mA each), a frequency output and IO-Link, runs on 18…30 V DC, connects through an M12 connector (A-coded, 4 gold-plated contacts), measures 110 x 45 x 72 mm and is rated IP65 and IP67 for 0…60 °C ambient.
Technical reference
| Product name | IFM SV4500 SV vortex flowmeters with display for water based media |
|---|---|
| Brand | IFM |
| Model | SV4500 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal; frequency signal; IO-Link; (configurable) |
| Measuring range | 1...20 l/min / 0.06...1.2 m³/h |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC V |
| Medium temperature | -10...90 °C |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
