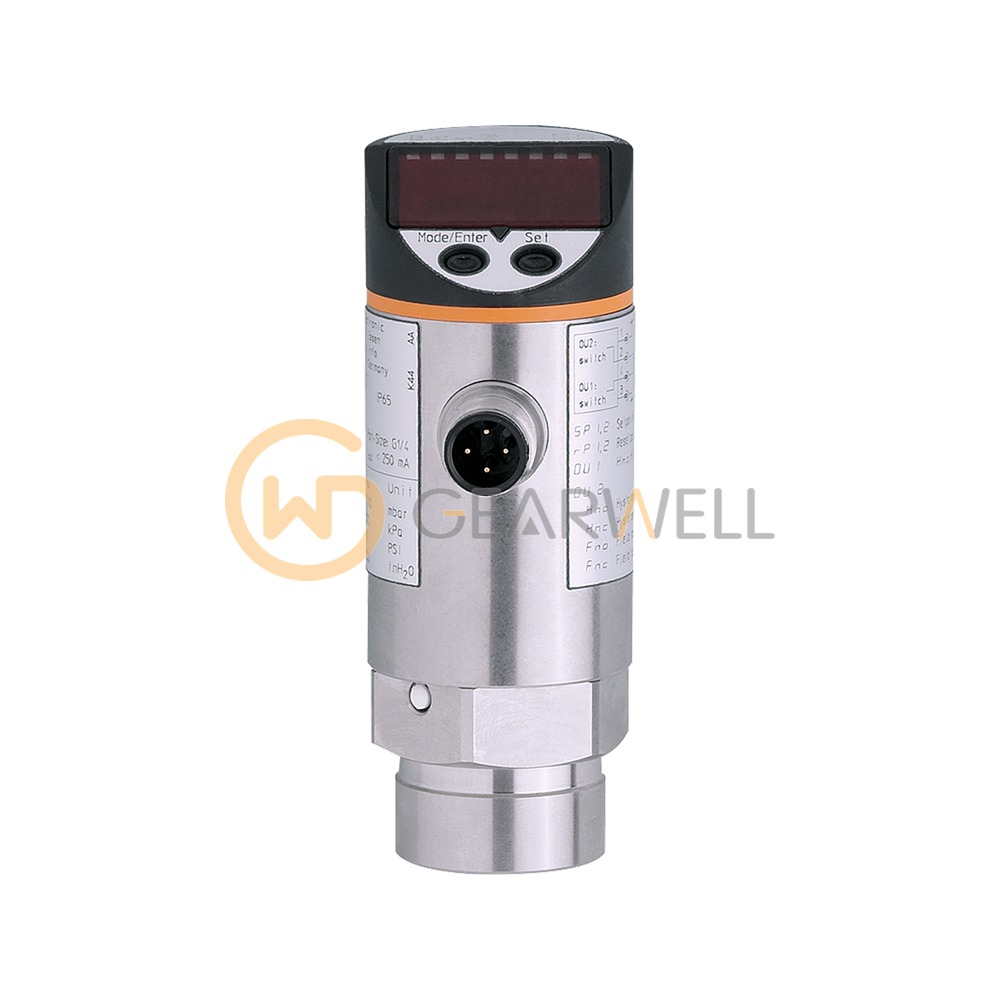

IFM PN2022 PN-100-SBR14-MFRKG/US/ /V Pressure Sensor with Display
- Brand
- IFM
- Model
- PN2022
- GEARWELL SKU
- GWP-000009380
- Category
- Pressure, Flow & Temperature
Key specifications
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...32 DC (to SELV/PELV) V
- Current consumption
- < 35 mA
- Switching frequency DC
- < 500 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM PN2022 PN-100-SBR14-MFRKG/US/ /V Pressure Sensor with Display |
|---|---|
| Brand | IFM |
| Model | PN2022 |
| Category | Pressure, Flow & Temperature |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...32 DC (to SELV/PELV) V |
| Current consumption | < 35 mA |
| Switching frequency DC | < 500 Hz |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
| Number of analogue outputs | 1 |
