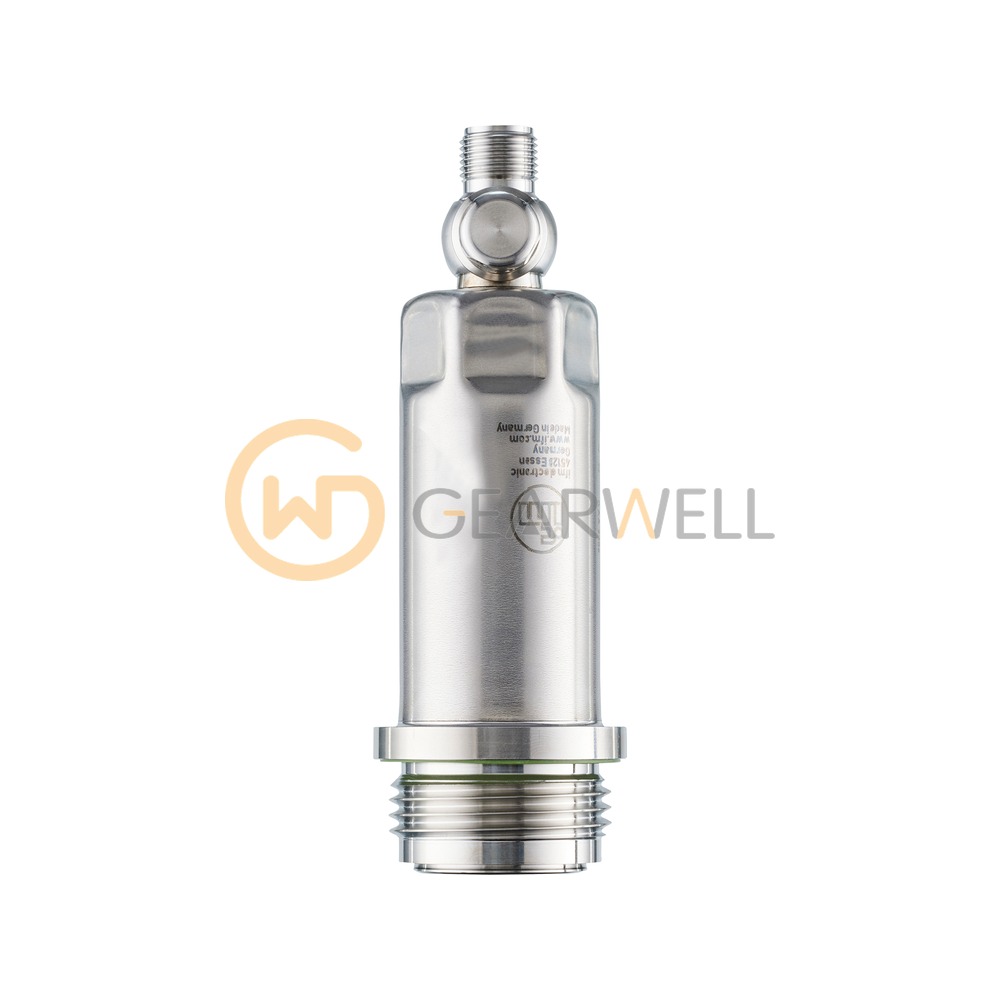

IFM PM1707 PM-001BREA01-E-ZVG/US Flush pressure sensor
- Brand
- IFM
- Model
- PM1707
- GEARWELL SKU
- GWP-000012472
- Category
- Pressure, Flow & Temperature
Key specifications
- Protection
- IP 67; IP 68; IP 69K
- Output signal
- analog signal; IO-Link; (configurable)
- Operating voltage
- 18...30 DC V
- Medium temperature
- -25...150 °C
- Process connection
- threaded connection G 1 external thread with Aseptoflex Vario sealing contour
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PM1707 (PM-001BREA01-E-ZVG/US) is a flush pressure sensor for liquids and gases, including viscous media and liquids with suspended particles. It measures relative pressure over -0.05…1 bar (-50…1000 mbar), with a pressure rating of 10000 mbar and a minimum burst pressure of 30000 mbar. The process connection is a G 1 external thread with Aseptoflex Vario sealing contour, the wetted parts are ceramics (99.9 % Al2O3), stainless steel (1.4435 / 316L) and PTFE, and the permitted medium temperature is -25…150 °C. It provides 1 switching output, 1 analog output (4…20 mA) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.2 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP67, IP68 and IP69K for -25…80 °C ambient.
Technical reference
| Product name | IFM PM1707 PM-001BREA01-E-ZVG/US Flush pressure sensor |
|---|---|
| Brand | IFM |
| Model | PM1707 |
| Category | Pressure, Flow & Temperature |
| Protection | IP 67; IP 68; IP 69K |
| Output signal | analog signal; IO-Link; (configurable) |
| Operating voltage | 18...30 DC V |
| Medium temperature | -25...150 °C |
| Process connection | threaded connection G 1 external thread with Aseptoflex Vario sealing contour |
| Ambient temperature | -25...80 °C |
| 2-wire - Current consumption | 3.5...21.5 mA |
| Number of inputs and outputs | Number of digital outputs: 1; Number of analog outputs: 1 |
