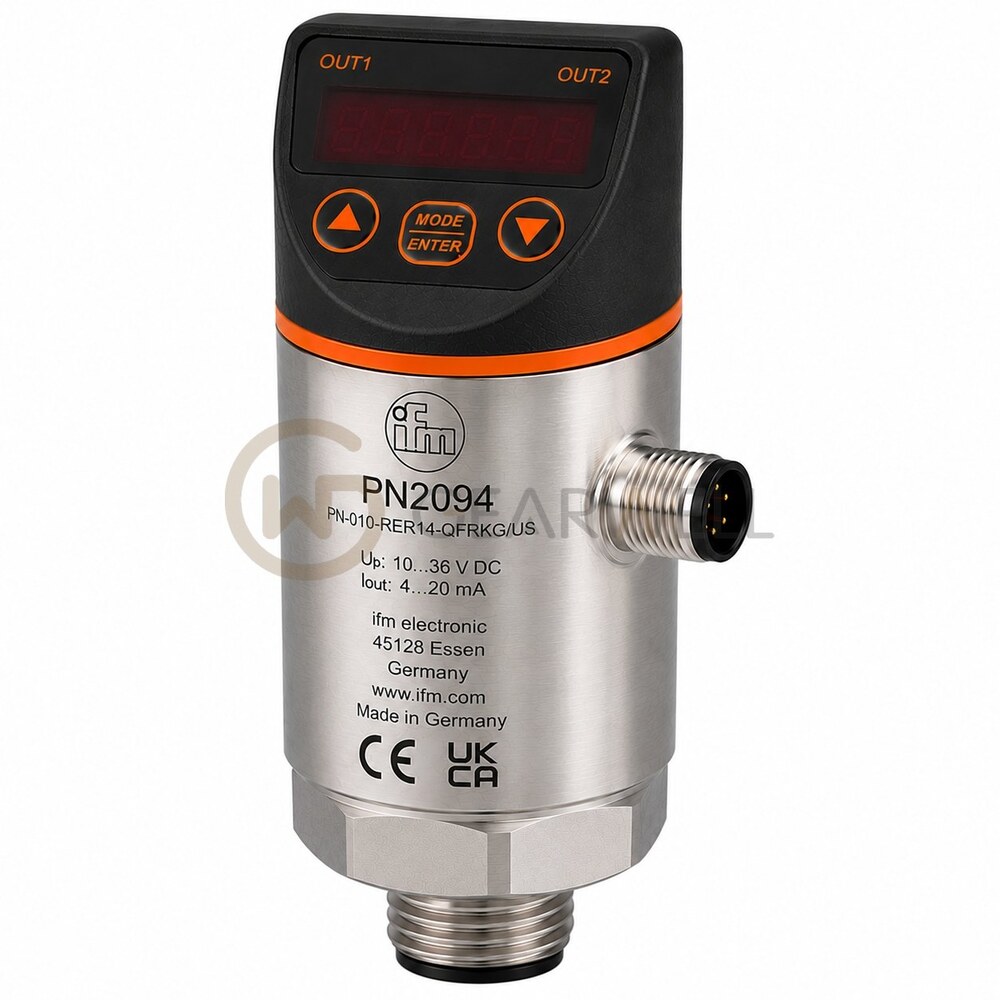

IFM PN2094 Industrial Sensor
- Brand
- IFM
- Model
- PN2094
- GEARWELL SKU
- GWP-000000076
- Category
- Industrial Automation Parts
Key specifications
- Pressure type
- Relative pressure; vacuum
- Measuring range
- -1...10 bar
- IO-Link revision
- 1.1
- Operating voltage
- 18...30 V DC (SELV/PELV)
- Process connection
- G 1/4 internal thread (DIN EN ISO 1179-2)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PN2094 (PN-010-RER14-MFRKG/US/ /V) is a pressure sensor with display for liquids and gases. It measures relative pressure and vacuum over -1…10 bar (-14.6…145 psi), with a pressure rating of 75 bar and a minimum burst pressure of 150 bar. The process connection is a G 1/4 internal thread (DIN EN ISO 1179-2), the wetted parts are stainless steel (1.4404 / 316L), ceramics (Al2O3) and FKM, and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (PNP/NPN), 1 analog output (4…20 mA or 0…10 V) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP65 and IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PN2094 Industrial Sensor |
|---|---|
| Brand | IFM |
| Model | PN2094 |
| Category | Industrial Automation Parts |
| Pressure type | Relative pressure; vacuum |
| Measuring range | -1...10 bar |
| IO-Link revision | 1.1 |
| Operating voltage | 18...30 V DC (SELV/PELV) |
| Process connection | G 1/4 internal thread (DIN EN ISO 1179-2) |
| Current consumption | < 35 mA |
| Communication interface | IO-Link |
| Number of inputs and outputs | Digital outputs: 2; analogue outputs: 1 |
