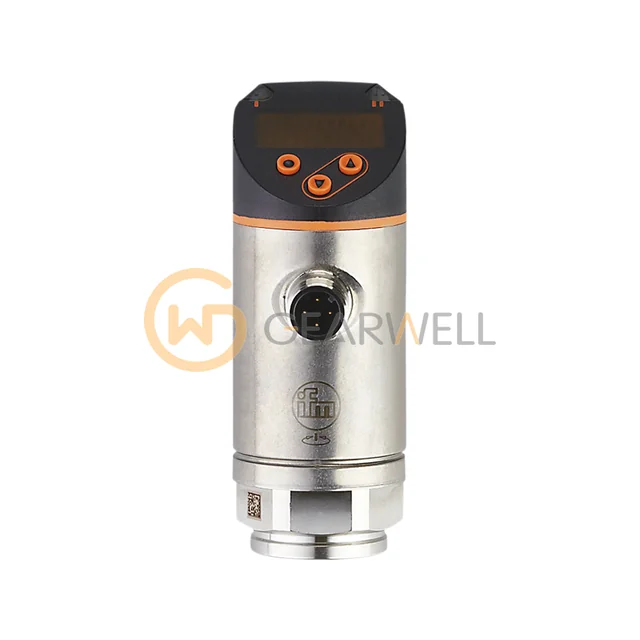

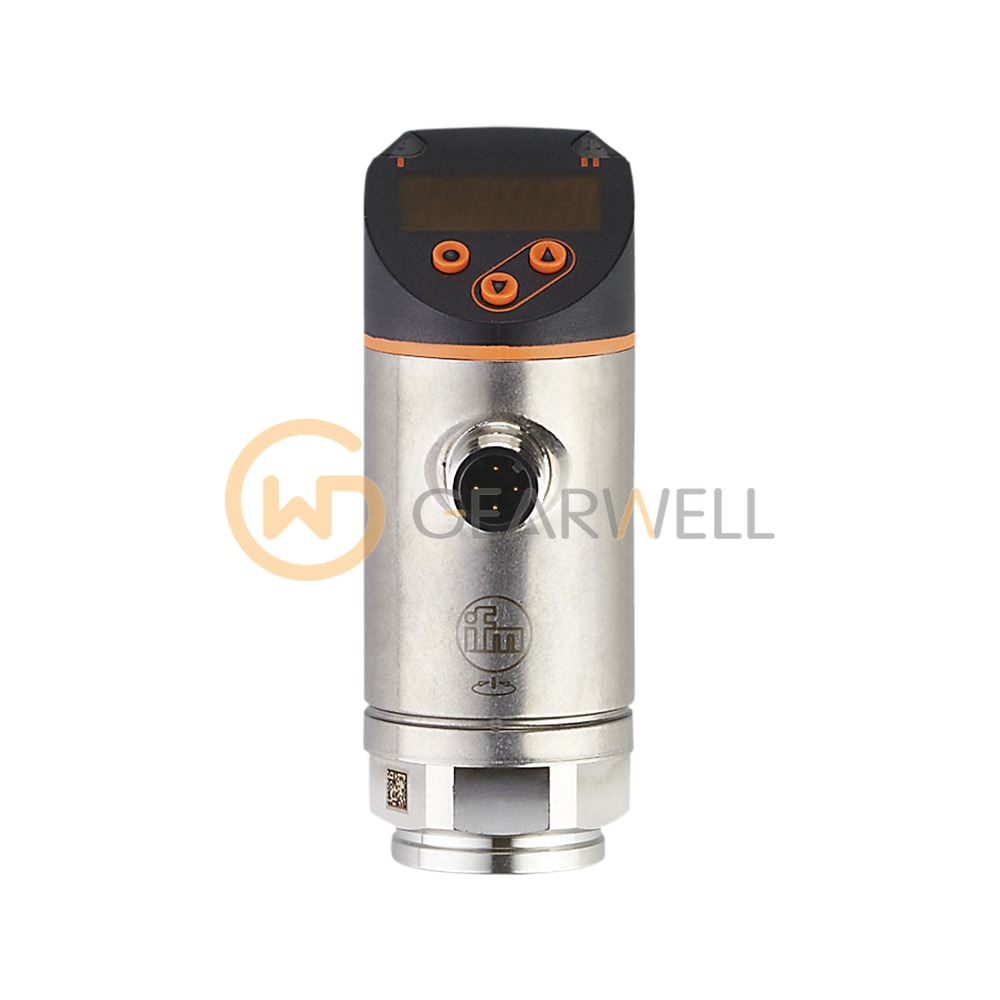

IFM PN2071 PN-250-SER14-MFRKG/US/ /V Pressure Sensor with Display
- Brand
- IFM
- Model
- PN2071
- GEARWELL SKU
- GWP-000009382
- Category
- Pressure, Flow & Temperature
Key specifications
- Output function
- normally open / normally closed (parameterisable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC (to SELV/PELV) V
- Current consumption
- < 35 mA
- Switching frequency DC
- < 500 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PN2071 (PN-250-SER14-MFRKG/US/ /V) is a pressure sensor with display for liquids and gases. It measures relative pressure over 0…250 bar (0…3625 psi), with a pressure rating of 500 bar and a minimum burst pressure of 1200 bar. The process connection is a G 1/4 internal thread (DIN EN ISO 1179-2), the wetted parts are stainless steel (630/1.4542/17-4 PH), and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (PNP/NPN), 1 analog output (4…20 mA or 0…10 V) and IO-Link, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). ifm specifies characteristic deviation < ± 0.25 % of span and repeatability < ± 0.1 % of span. The sensor is rated IP65 and IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PN2071 PN-250-SER14-MFRKG/US/ /V Pressure Sensor with Display |
|---|---|
| Brand | IFM |
| Model | PN2071 |
| Category | Pressure, Flow & Temperature |
| Output function | normally open / normally closed (parameterisable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC (to SELV/PELV) V |
| Current consumption | < 35 mA |
| Switching frequency DC | < 500 Hz |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
| Number of analogue outputs | 1 |
