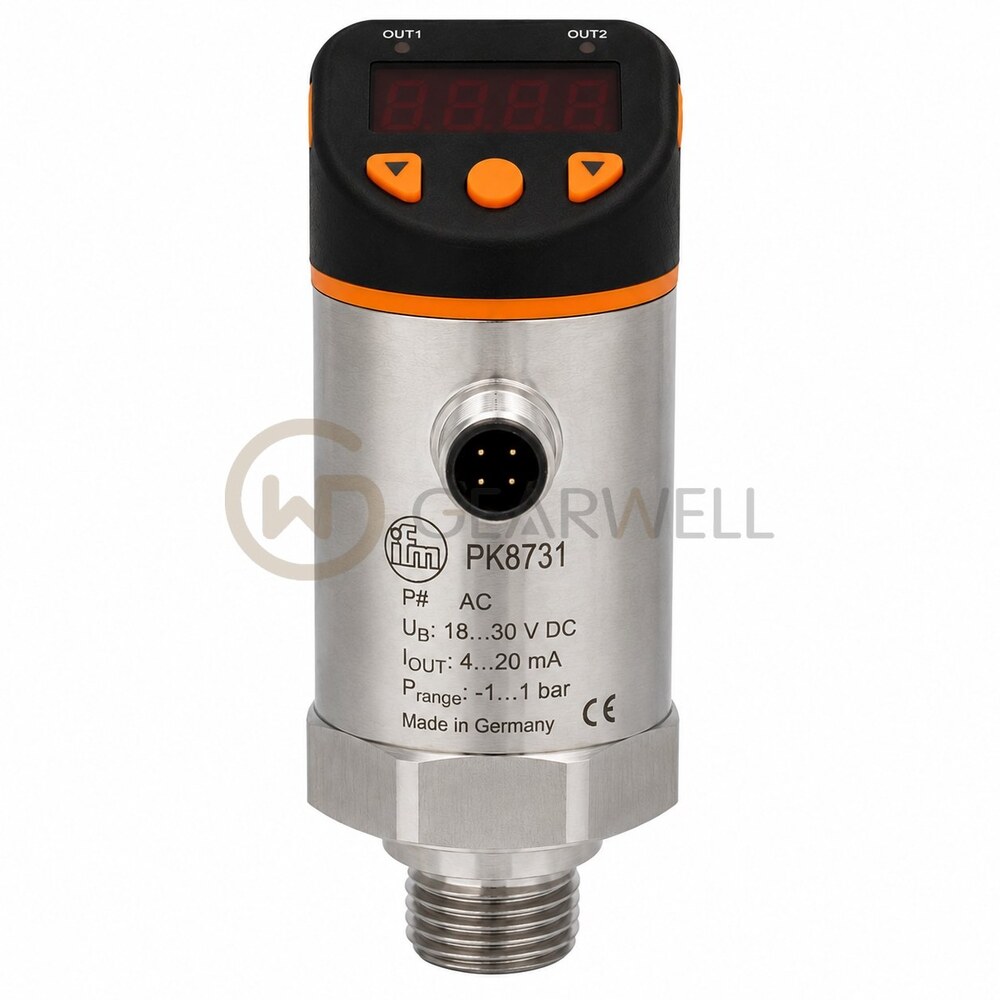

IFM PK8731 Pressure Switch with Intuitive Switch Point Setting
- Brand
- IFM
- Model
- PK8731
- GEARWELL SKU
- GWP-000000894
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 67
- Product type
- Pressure switch with intuitive switch point setting
- Output signal
- switching signal
- Output function
- complementary
- Electrical design
- NPN
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PK8731 (PK-250-SFP14-HCNKG/US/ /W) is a pressure switch with intuitive switch point setting for liquids and gases. It measures relative pressure over 0…250 bar (0…25 MPa), with a pressure rating of 400 bar and a minimum burst pressure of 1000 bar. The process connection is an R 1/4 external thread with M5 internal thread, the wetted parts are stainless steel (1.4404 / 316L), and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (NPN), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 contacts). The sensor is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PK8731 Pressure Switch with Intuitive Switch Point Setting |
|---|---|
| Brand | IFM |
| Model | PK8731 |
| Category | Industrial Automation Parts |
| Protection | IP 67 |
| Product type | Pressure switch with intuitive switch point setting |
| Output signal | switching signal |
| Output function | complementary |
| Electrical design | NPN |
| Operating voltage | 9.6...32 V DC |
| Process connection | threaded connection R 1/4 external thread Internal thread:M5 |
| Current consumption | < 25 mA |
