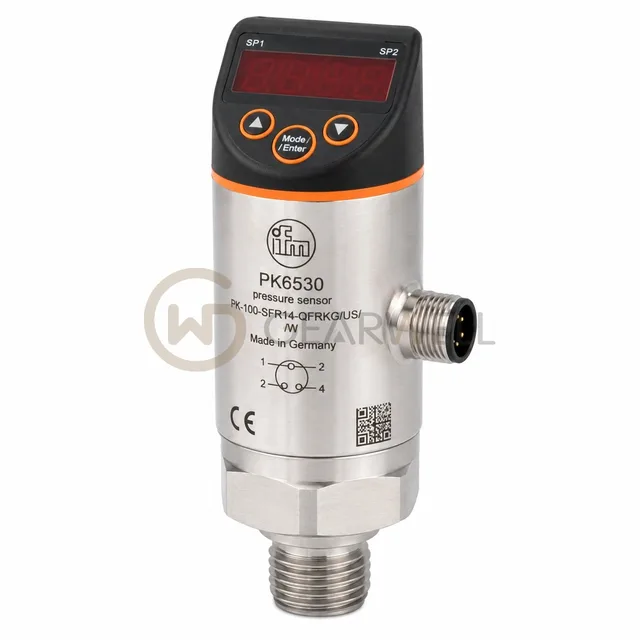

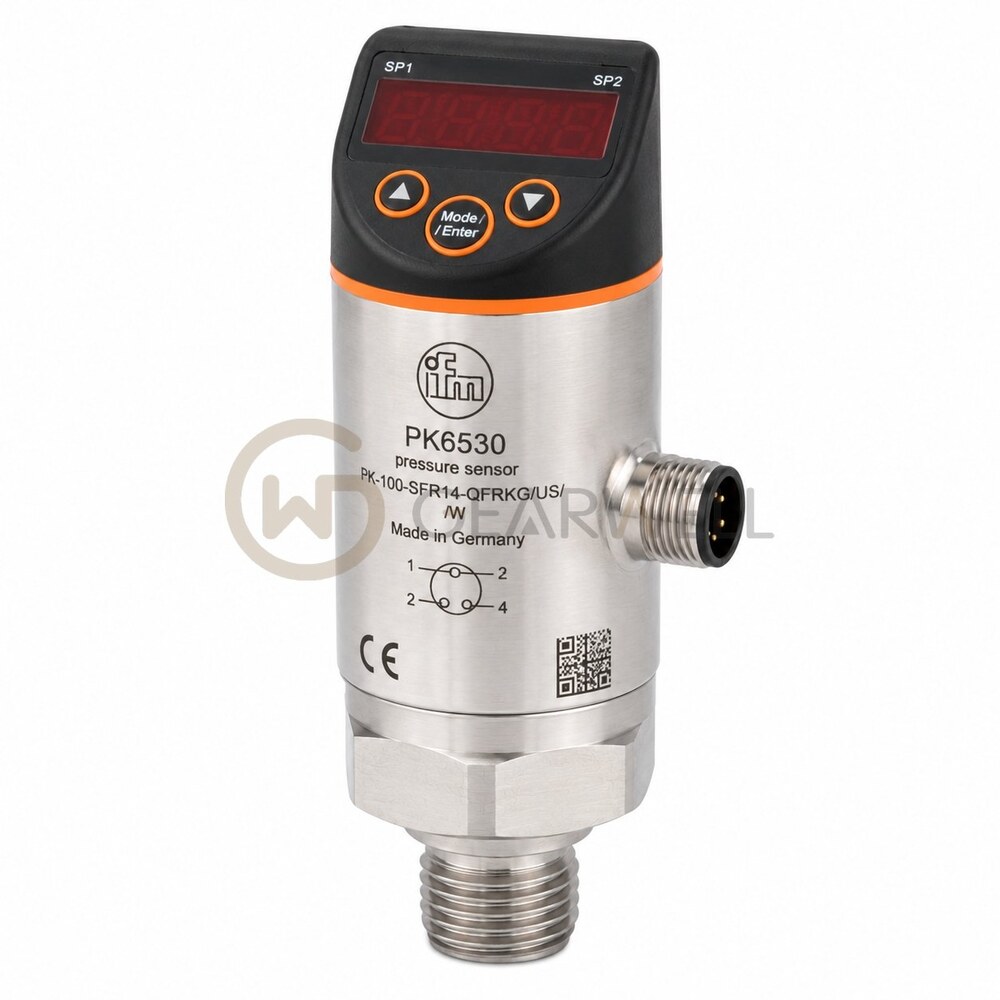

IFM PK6530 Pressure Switch with Intuitive Switch Point Setting
- Brand
- IFM
- Model
- PK6530
- GEARWELL SKU
- GWP-000002888
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 67
- Product type
- Pressure switch with intuitive switch point setting
- Output signal
- switching signal
- Output function
- complementary
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PK6530 (PK-400-SFG14-HCPKG/US/ /W) is a pressure switch with intuitive switch point setting for liquids and gases. It measures relative pressure over 0…400 bar (0…40 MPa), with a pressure rating of 600 bar and a minimum burst pressure of 1600 bar. The process connection is a G 1/4 external thread with M5 internal thread, the wetted parts are stainless steel (1.4404 / 316L) and FKM, and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (PNP), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 contacts). The sensor is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PK6530 Pressure Switch with Intuitive Switch Point Setting |
|---|---|
| Brand | IFM |
| Model | PK6530 |
| Category | Industrial Automation Parts |
| Protection | IP 67 |
| Product type | Pressure switch with intuitive switch point setting |
| Output signal | switching signal |
| Output function | complementary |
| Electrical design | PNP |
| Operating voltage | 9.6...32 V DC |
| Process connection | threaded connection G 1/4 external thread Internal thread:M5 |
| Current consumption | < 25 mA |
