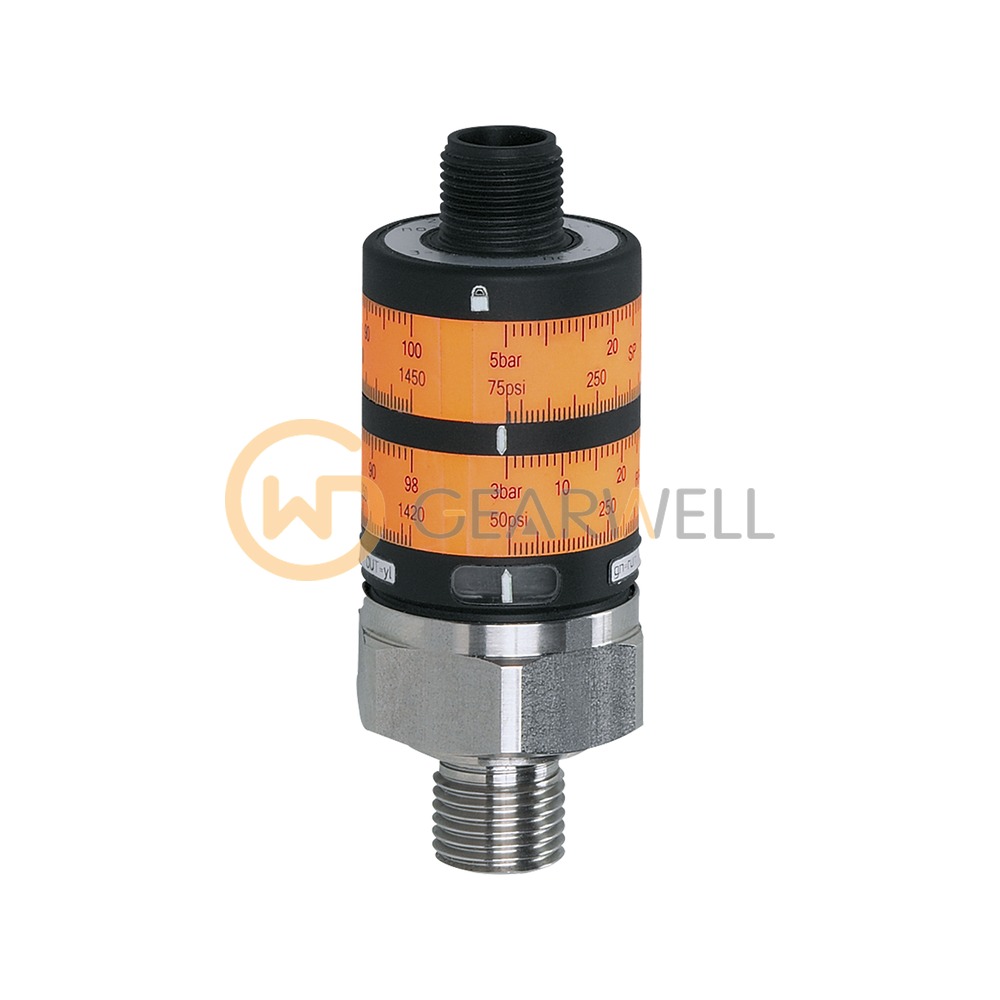

IFM PK6523 Pressure switch with intuitive switch point setting
- Brand
- IFM
- Model
- PK6523
- GEARWELL SKU
- GWP-000014134
- Category
- Pressure, Flow & Temperature
Key specifications
- Connector
- 1 x M12; coding: A; Contacts: 4
- Measuring range
- 0...25 bar / 0...363 psi
- Output function
- complementary
- Pressure rating
- 60 bar / 870 psi / 6 MPa
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PK6523 (PK-025-SFG14-HCPKG/US/ /W) is a pressure switch with intuitive switch point setting for liquids and gases. It measures relative pressure over 0…25 bar (0…363 psi), with a pressure rating of 60 bar and a minimum burst pressure of 500 bar. The process connection is a G 1/4 external thread with M5 internal thread, the wetted parts are stainless steel (1.4404 / 316L) and FKM, and the permitted medium temperature is -25…80 °C. It provides 2 switching outputs (PNP), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 contacts). The sensor is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PK6523 Pressure switch with intuitive switch point setting |
|---|---|
| Brand | IFM |
| Model | PK6523 |
| Category | Pressure, Flow & Temperature |
| Connector | 1 x M12; coding: A; Contacts: 4 |
| Measuring range | 0...25 bar / 0...363 psi |
| Output function | complementary |
| Pressure rating | 60 bar / 870 psi / 6 MPa |
| Electrical design | PNP |
| Operating voltage | 9.6...32 DC V |
| Process connection | threaded connection G 1/4 external thread Internal thread:M5 |
| Adjustment of the switch point | setting rings |
