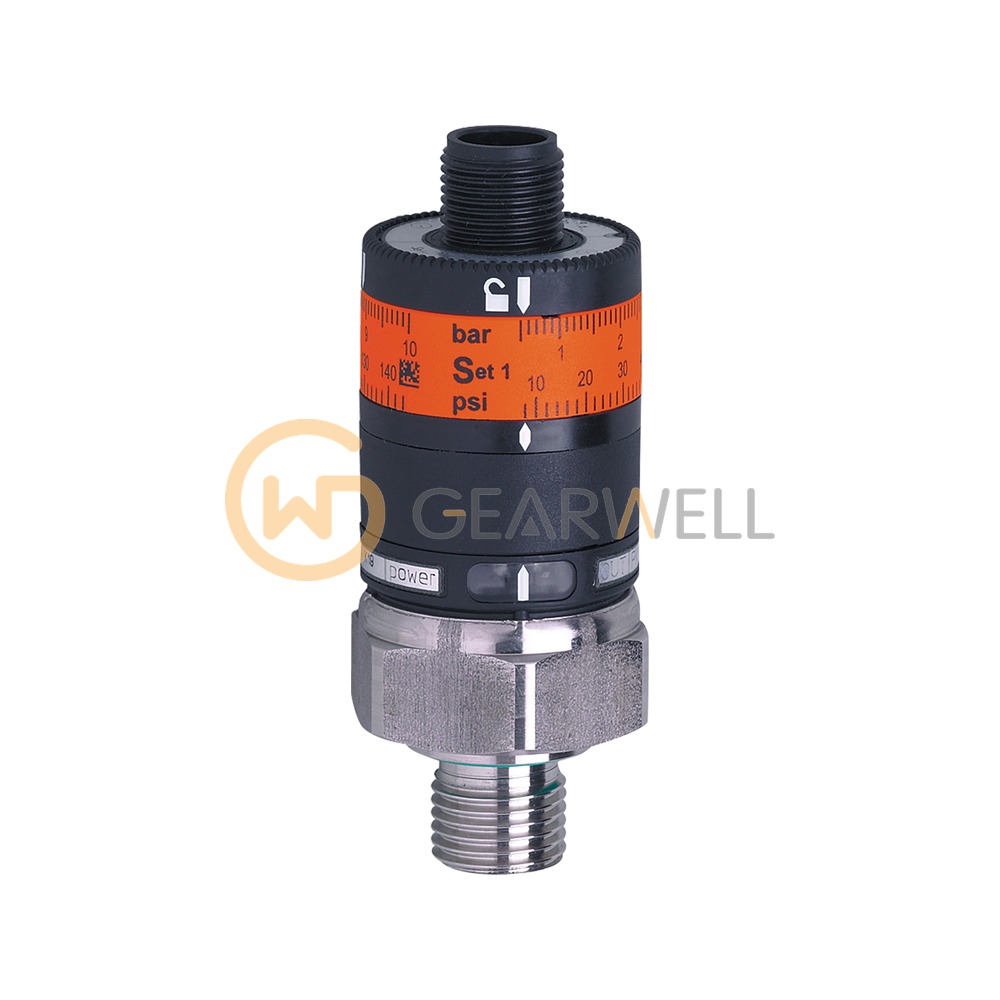

IFM PK5523 Pressure switch with intuitive switch point setting
- Brand
- IFM
- Model
- PK5523
- GEARWELL SKU
- GWP-000012470
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal
- Output function
- normally open
- Electrical design
- PNP
- Operating voltage
- 9.6...32 DC V
- Process connection
- threaded connection G 1/4 external thread Internal thread:M5
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm PK5523 (PK-025-SFG14-PSPKG/US/ /W) is a pressure switch with intuitive switch point setting for liquids and gases. It measures relative pressure over 0…25 bar (0…363 psi), with a pressure rating of 60 bar and a minimum burst pressure of 500 bar. The process connection is a G 1/4 external thread with M5 internal thread, the wetted parts are stainless steel (1.4404 / 316L) and FKM, and the permitted medium temperature is -25…80 °C. It provides 1 switching output (PNP), runs on 9.6…32 V DC and connects through an M12 connector (A-coded, 4 contacts). The sensor is rated IP67 for -25…80 °C ambient.
Technical reference
| Product name | IFM PK5523 Pressure switch with intuitive switch point setting |
|---|---|
| Brand | IFM |
| Model | PK5523 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 9.6...32 DC V |
| Process connection | threaded connection G 1/4 external thread Internal thread:M5 |
| Current consumption | < 25 mA |
| Switching frequency DC | 100 Hz |
| Number of inputs and outputs | Number of digital outputs: 1 |
