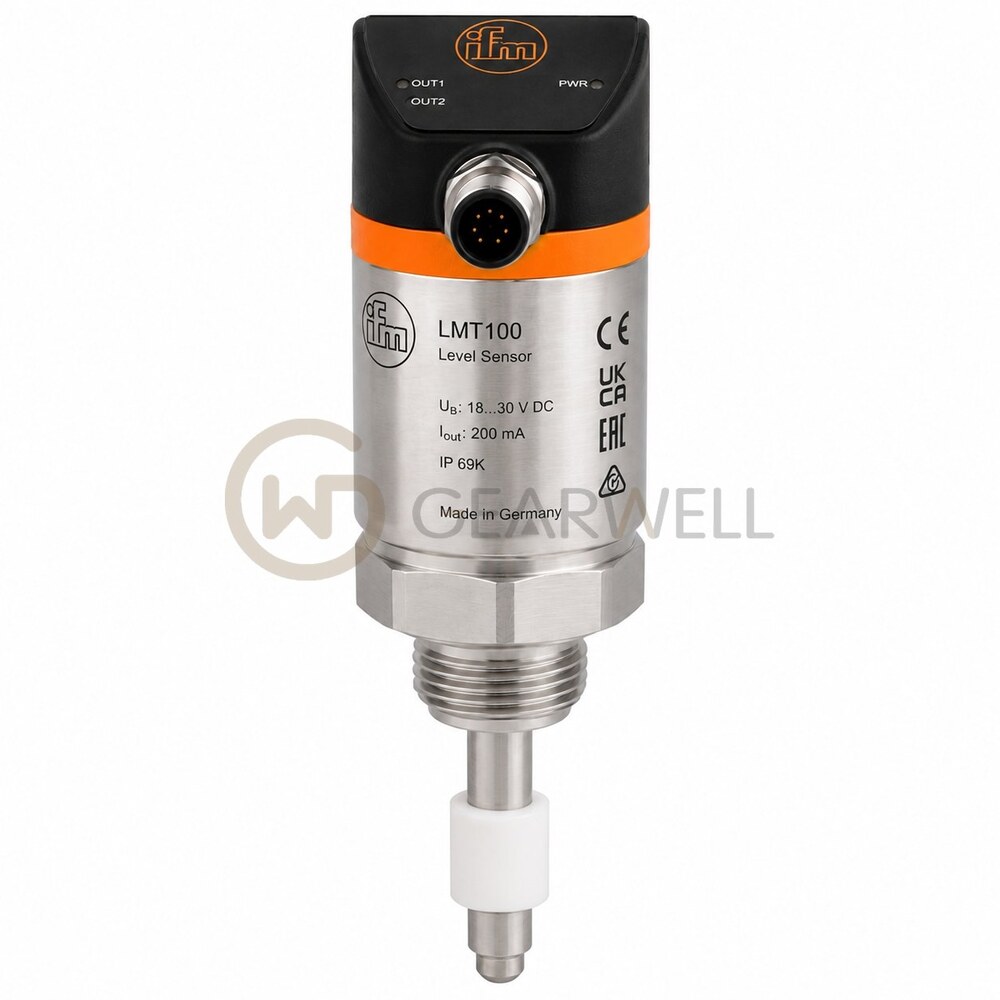

IFM LMT100 Sensor for Point Level Detection

Product overview

The ifm LMT100 (LMACE-A12E/QSKG/0/US) is a capacitive sensor for point level detection in liquid and viscous media and powder, factory-set for water-based media. It has an 11 mm probe and a process connection of G 1/2 with sealing cone, is rated for a tank pressure of -1…40 bar and a medium temperature of -40…100 °C (-40…150 °C for up to 1 h), and its wetted parts are PEEK. The response time is under 0.5 s. It provides 2 switching outputs (PNP/NPN) and IO-Link, with the switching outputs configurable as normally open or normally closed and rated at 100 mA, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit is Ø 30 mm and 113 mm long and is rated IP68 and IP69K for -40…85 °C ambient.
