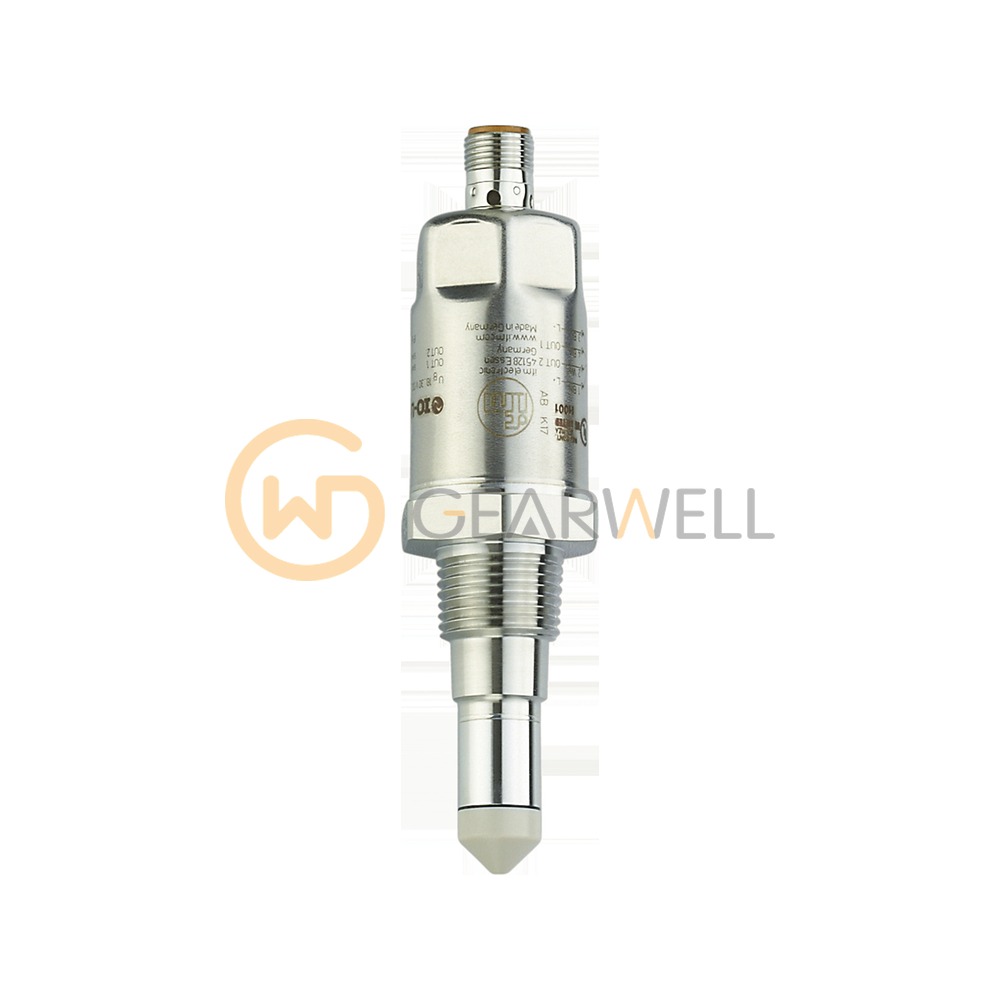

IFM LMC502 Sensor for point level detection
- Brand
- IFM
- Model
- LMC502
- GEARWELL SKU
- GWP-000012119
- Category
- Pressure, Flow & Temperature
Key specifications
- Output signal
- switching signal; IO-Link
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC V
- Medium temperature
- -20...100 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm LMC502 (LMCCE-N12E-QSKG-2/US) is a capacitive sensor for point level detection in water, water-based media, oils, oil-based media and powder. It has a 40 mm probe and a process connection of 1/2" NPT, is rated for a tank pressure of -1…40 bar and a medium temperature of -20…100 °C (-20…150 °C for up to 1 h), and its wetted parts are PEEK and FKM. It provides 2 switching outputs (PNP/NPN) and IO-Link, with the switching outputs configurable as normally open or normally closed and rated at 100 mA, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). It is rated IP68 and IP69K for -20…85 °C ambient.
Technical reference
| Product name | IFM LMC502 Sensor for point level detection |
|---|---|
| Brand | IFM |
| Model | LMC502 |
| Category | Pressure, Flow & Temperature |
| Output signal | switching signal; IO-Link |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC V |
| Medium temperature | -20...100 °C |
| Process connection | 1/2" NPT |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
