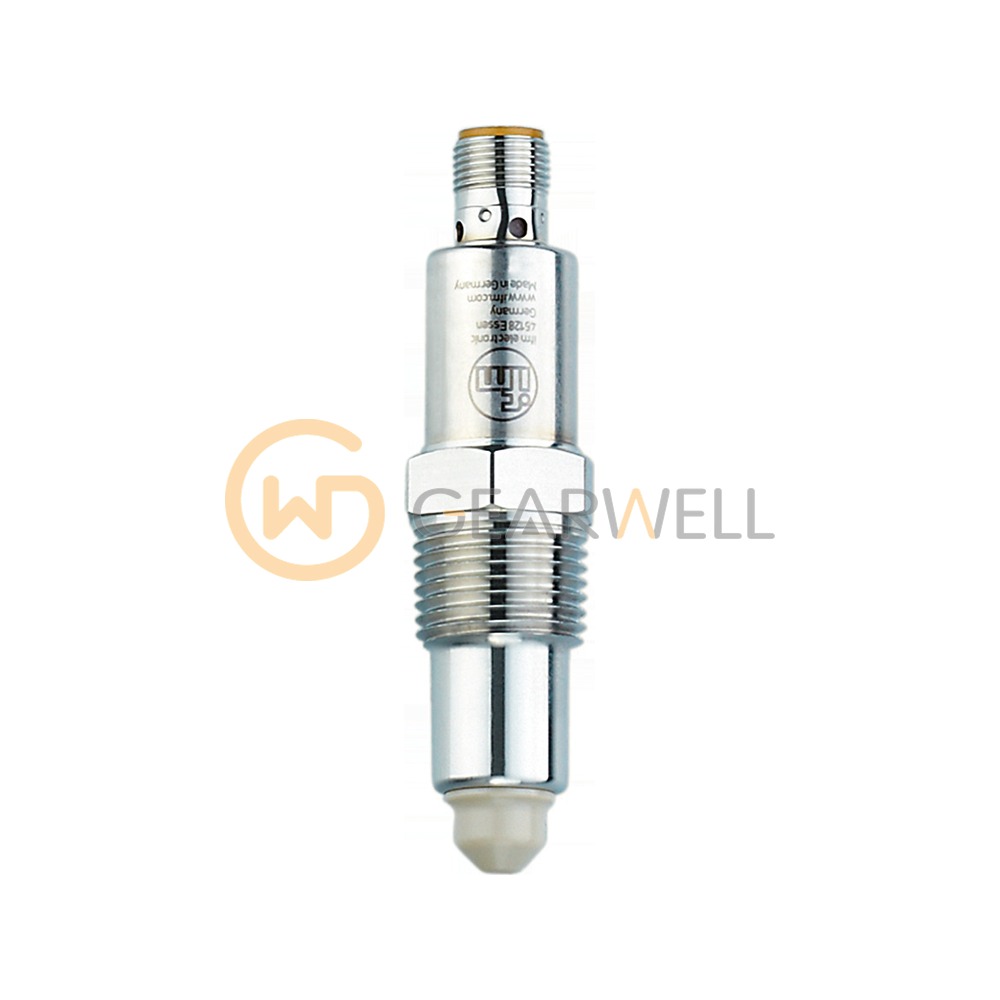

IFM LMC500 Sensor for point level detection
- Brand
- IFM
- Model
- LMC500
- GEARWELL SKU
- GWP-000012118
- Category
- Pressure, Flow & Temperature
Key specifications
- Media
- water; water-based media; oils; oil-based media; Coolants; powder
- Output signal
- switching signal; IO-Link
- Output function
- normally open / closed; (configurable)
- Electrical design
- PNP/NPN
- Operating voltage
- 18...30 DC V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm LMC500 (LMFCE-N12E-QSKG-0/US) is a capacitive sensor for point level detection in water, water-based media, oils, oil-based media, coolants and powder, factory-set for water and water-based media. It has a 25 mm probe and a process connection of 1/2" NPT, is rated for a tank pressure of -1…40 bar and a medium temperature of -25…100 °C, and its wetted parts are stainless steel (1.4404 / 316L), PEEK and FKM. The response time is under 0.5 s. It provides 2 switching outputs (PNP/NPN) and IO-Link, with the switching outputs configurable as normally open or normally closed and rated at 50 mA, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit is Ø 18.11 mm and 76.2 mm long and is rated IP68 and IP69K for -25…85 °C ambient.
Technical reference
| Product name | IFM LMC500 Sensor for point level detection |
|---|---|
| Brand | IFM |
| Model | LMC500 |
| Category | Pressure, Flow & Temperature |
| Media | water; water-based media; oils; oil-based media; Coolants; powder |
| Output signal | switching signal; IO-Link |
| Output function | normally open / closed; (configurable) |
| Electrical design | PNP/NPN |
| Operating voltage | 18...30 DC V |
| Medium temperature | -25...100 °C |
| Communication interface | IO-Link |
| Number of digital outputs | 2 |
