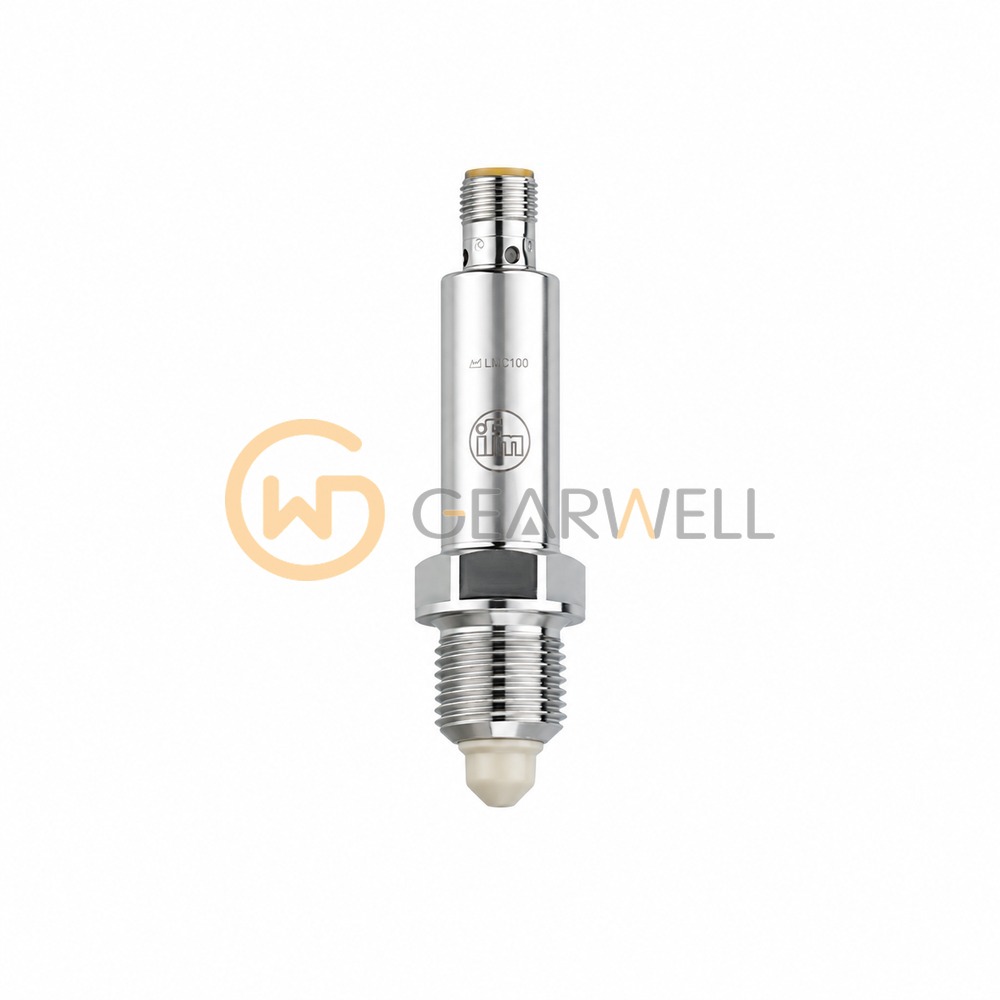

IFM LMC100 Point Level Sensor

Product overview

The ifm LMC100 (LMFCE-B12E-QSKG-0/US) is a capacitive sensor for point level detection in water, water-based media, oils, oil-based media, coolants and powder, factory-set for water and water-based media. It has a 28 mm probe and a process connection of G 1/2 external thread, is rated for a tank pressure of -1…40 bar and a medium temperature of -25…100 °C, and its wetted parts are stainless steel (1.4404 / 316L), PEEK and FKM. The response time is under 0.5 s. It provides 2 switching outputs (PNP/NPN) and IO-Link, with the switching outputs configurable as normally open or normally closed and rated at 50 mA, runs on 18…30 V DC and connects through an M12 connector (A-coded, 4 gold-plated contacts). The unit is Ø 18.1 mm and 76.2 mm long and is rated IP68 and IP69K for -25…85 °C ambient.
