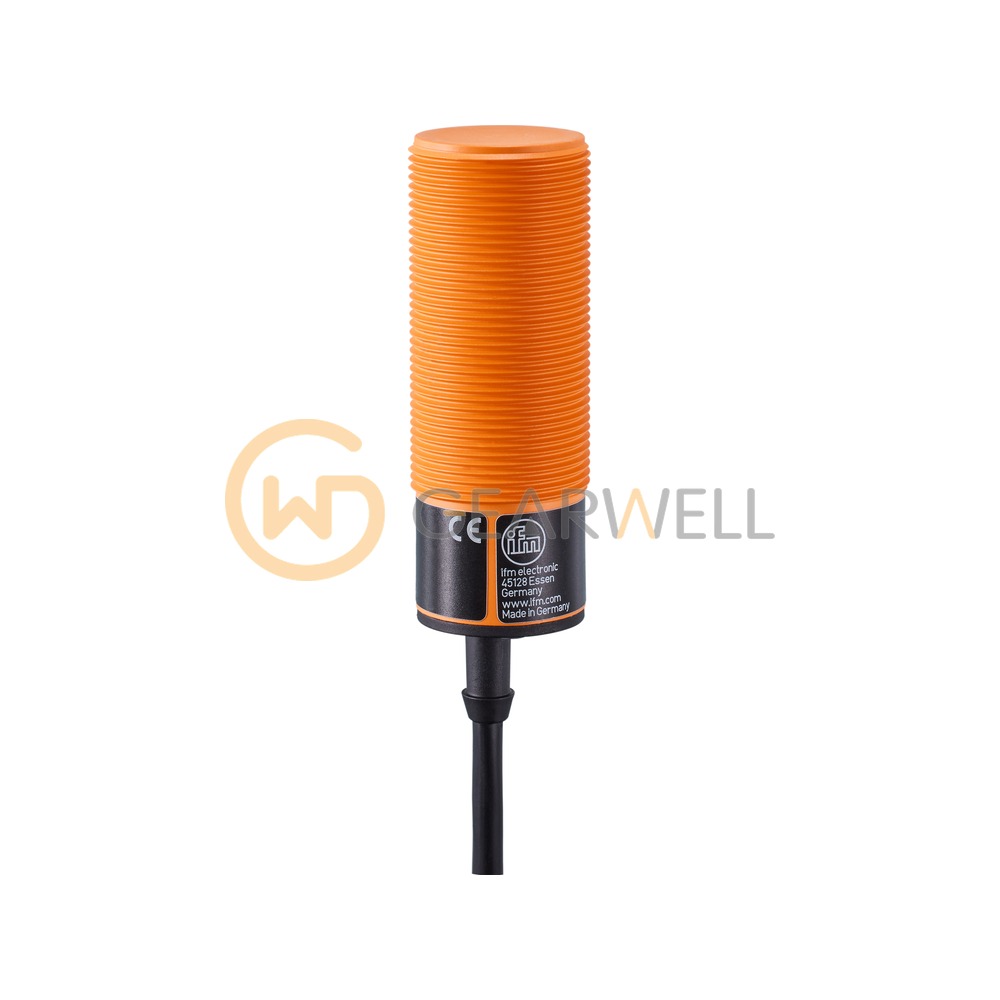

IFM KI0207 KI-2015-BBOA/NI/0,1/LS-100AK Capacitive Sensor

Product overview

The ifm KI0207 (KI-2015-BBOA/NI/0,1/LS-100AK) is a capacitive proximity sensor in an M30 x 1.5 threaded housing 81 mm long, for non-flush mounting. Its rated sensing range is 3…15 mm, adjustable, with a factory setting of 15 mm. The real sensing range is 15 mm ± 10% and the operating distance is 0…12.1 mm. ifm gives correction factors of 0.4 for glass, 1 for water, 0.2 for ceramics and 0.2 for PVC. It is a two-wire sensor for 20…250 V AC/DC; the output is normally closed, with an AC load current of 200 mA and a switching frequency of 25 Hz on AC, or 200 mA and 50 Hz on DC. ifm specifies a fast-acting miniature fuse of 2 A or less in the supply. ifm specifies increased immunity to conducted radio frequency interference. The sensor has a PBT housing, connects through a 0.1 m PVC cable with 2 x 0.5 mm² conductors ending in a 1/2-inch connector (C-coded, 2 contacts) and is rated IP65 for -25…70 °C ambient. Supplied with two lock nuts.
