IFM KG5071 Capacitive Sensor
- Brand
- IFM
- Model
- KG5071
- GEARWELL SKU
- GWP-000001571
- Category
- Proximity & Photoelectric Sensors
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

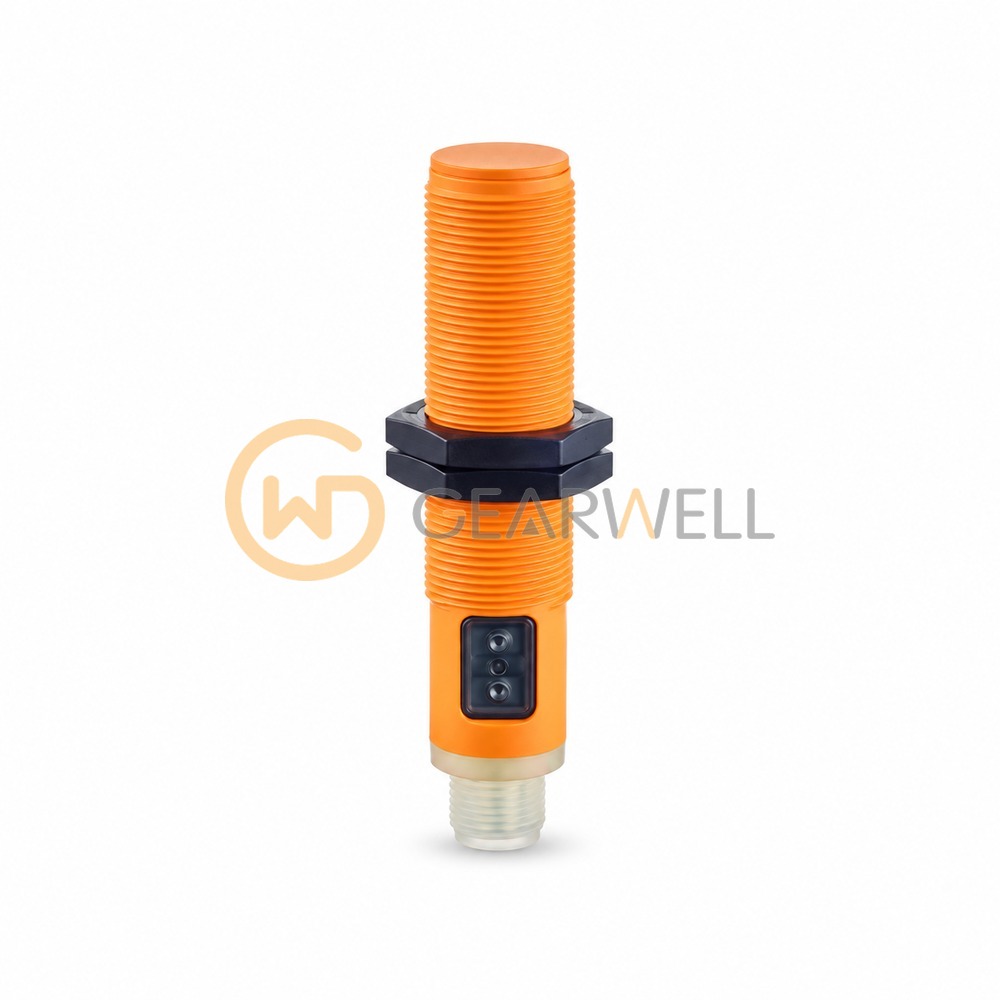

The ifm KG5071 (KG-3080NFPKG/2T/US) is a capacitive proximity sensor in an M18 x 1 threaded housing 87 mm long, for non-flush mounting. Its rated sensing range is 8 mm. The PNP switching output is selectable as normally open or normally closed, rated at 200 mA and up to 10 Hz on 10…36 V DC, with reverse polarity protection. The sensor has an orange PBT housing, connects through an M12 connector (A-coded, 4 contacts) and is rated IP65 and IP67 for -25…80 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM KG5071 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KG5071 |
| Category | Proximity & Photoelectric Sensors |
