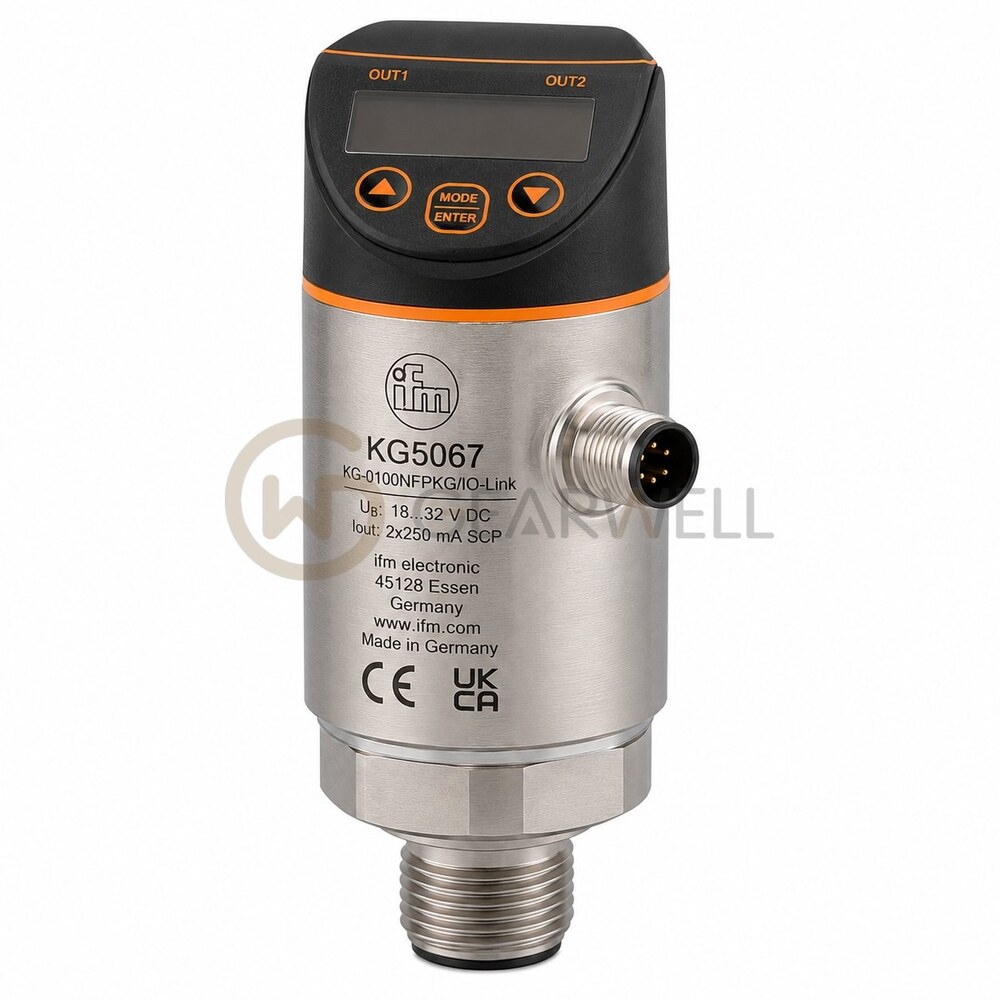

IFM KG5067 Capacitive Sensor
- Brand
- IFM
- Model
- KG5067
- GEARWELL SKU
- GWP-000004009
- Category
- Industrial Automation Parts
Key specifications
- Protection
- IP 65; IP 67
- Product type
- Capacitive sensor
- Sensing range
- 8 mm
- Output function
- normally open / closed; (selectable)
- Electrical design
- PNP/NPN; (Automatic load detection PNP/NPN)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm KG5067 (KG-3080NFAKGS2T) is a capacitive proximity sensor in an M18 x 1 threaded housing 77 mm long, for non-flush mounting. Its rated sensing range is 8 mm. The PNP/NPN (automatic load detection) switching output is selectable as normally open or normally closed, rated at 200 mA and up to 10 Hz on 10…36 V DC, with reverse polarity protection. The sensor has a white PP housing, connects through a 2 m PVC cable (Ø 4.9 mm) with 3 x 0.34 mm² conductors and is rated IP65 and IP67 for -25…80 °C ambient. Supplied with two lock nuts.
Technical reference
| Product name | IFM KG5067 Capacitive Sensor |
|---|---|
| Brand | IFM |
| Model | KG5067 |
| Category | Industrial Automation Parts |
| Protection | IP 65; IP 67 |
| Product type | Capacitive sensor |
| Sensing range | 8 mm |
| Output function | normally open / closed; (selectable) |
| Electrical design | PNP/NPN; (Automatic load detection PNP/NPN) |
| Operating voltage | 10...36 V DC |
| Current consumption | < 20 mA |
| Communication interface | IO-Link |
