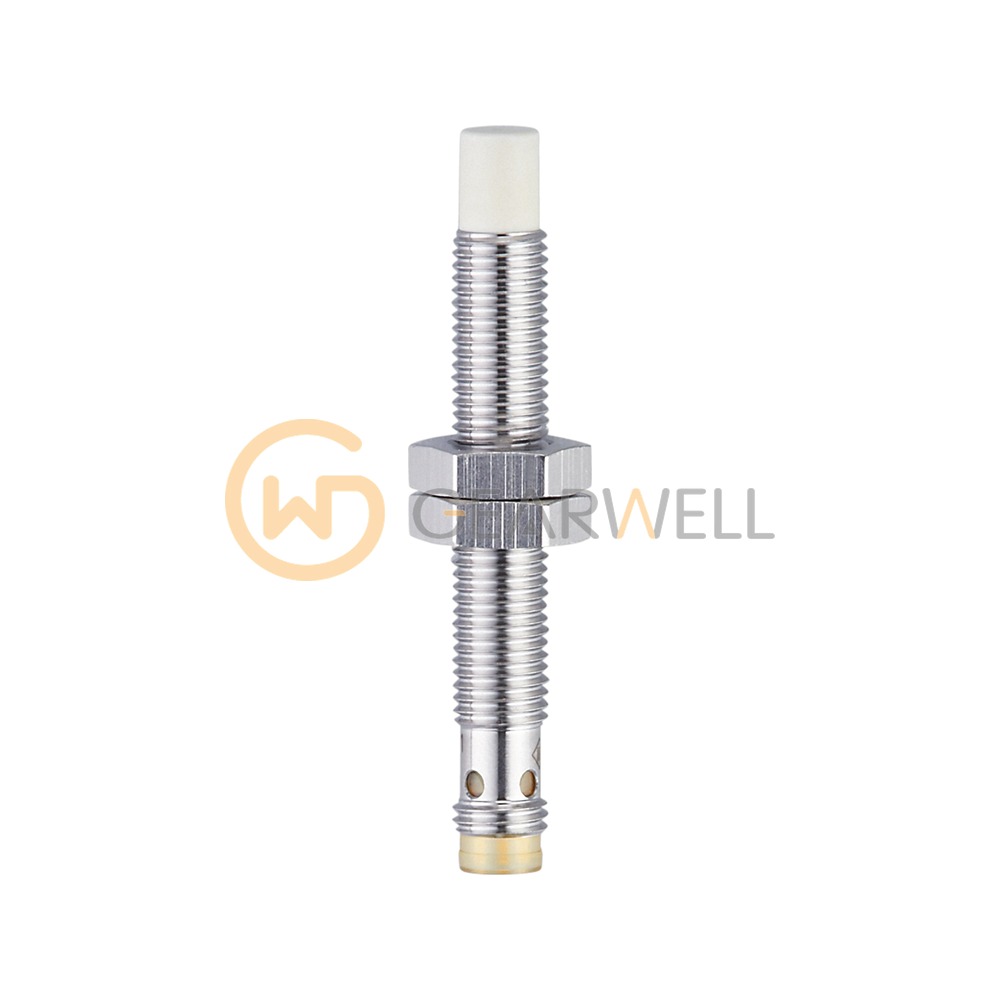

IFM IE5391 IEK3004-BPKG/V4A/K1/AS Inductive Sensor
- Brand
- IFM
- Model
- IE5391
- GEARWELL SKU
- GWP-000008767
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- M8 x 1 / L = 60 mm
- Protection
- IP 65; IP 67 (with ifm socket duly screwed on)
- Sensing range
- 4 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IE5391 (IEK3004-BPKG/V4A/K1/AS) is an inductive proximity sensor in an M8 x 1 threaded housing 60 mm long, for non-flush mounting. Its rated sensing range is 4 mm. The real sensing range is 4 mm ± 10% and the operating distance on steel is 0…3.25 mm. The PNP switching output is normally open, rated at 100 mA and up to 1000 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. Its correction factor is 1 for steel, stainless steel, brass, aluminum and copper, so these metals are detected at the same distance. The sensor has a stainless steel (1.4404 / 316L) housing with an LCP sensing face, connects through an M8 connector (A-coded, 3 gold-plated contacts, snap-fit locking) and is rated IP65 and IP67 for -25…70 °C ambient. It is immune to magnetic fields. Two lock nuts are included.
Technical reference
| Product name | IFM IE5391 IEK3004-BPKG/V4A/K1/AS Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IE5391 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | M8 x 1 / L = 60 mm |
| Protection | IP 65; IP 67 (with ifm socket duly screwed on) |
| Sensing range | 4 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 DC V |
| Current consumption | < 20 mA |
| Switching frequency DC | 1000 Hz |
